Wiring Diagram-I/MIRR-

NOTE: For wiring diagram references to PG-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION .

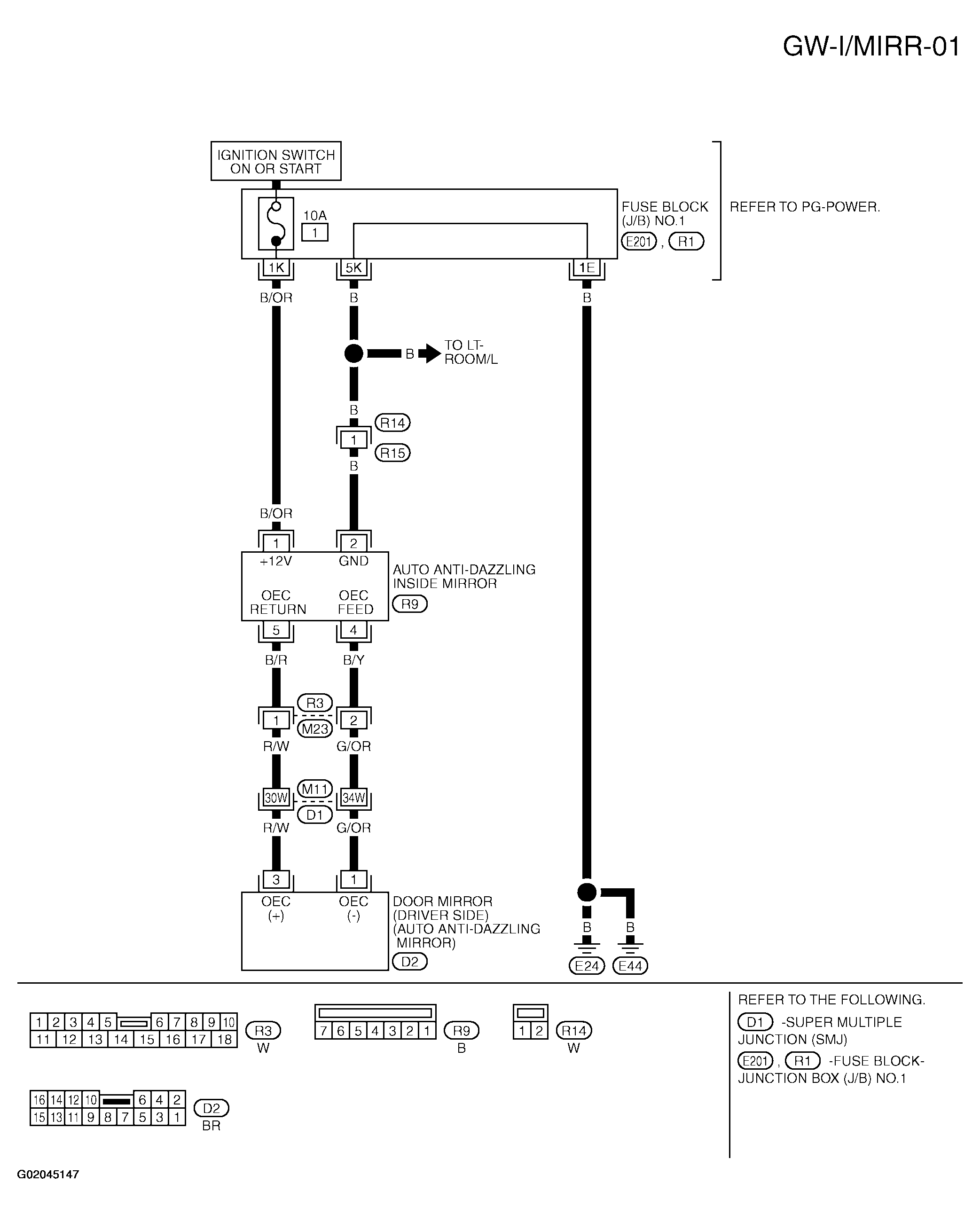

Fig 1: Inside Mirror Wiring Diagram And Identifying Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.
