Disassembly and Assembly: Assembly
- Place the mirror holder bracket and mirror body assembly (actuator) in a horizontal position.

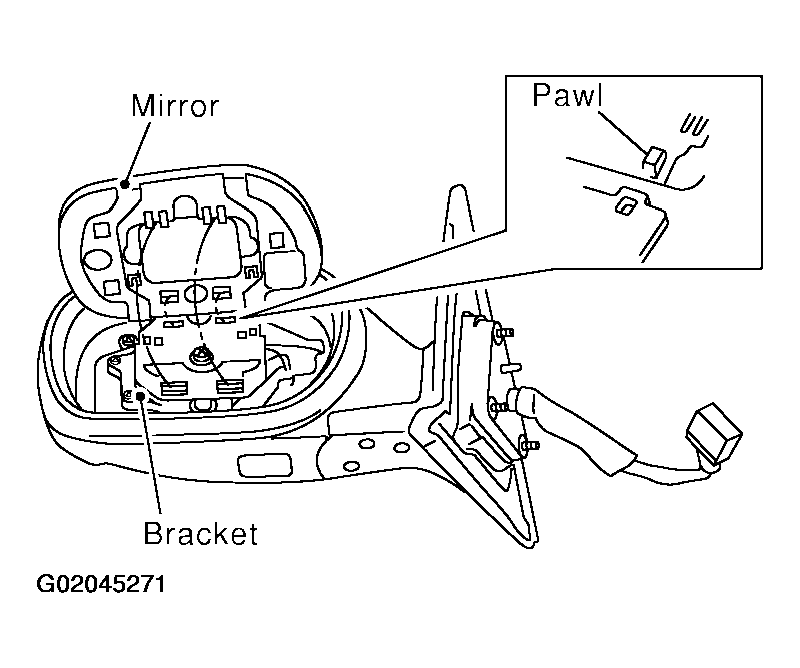

- Fit the upper tab on the mirror face onto the mirror holder bracket first, then press the lower side of the mirror face until a click sound is heard to engage the lower pawls.NOTE: After installation, visually check that the lower pawls (2) are securely engaged from the bottom of the mirror face.
