Sunroof Switch System Check

1. Turn ignition switch OFF.
2. Operate each sunroof switch, and check the continuity between terminals 1, 3, 4, 5, 6 and terminal 2 on the sunroof switch connector R7.
   1. AUTO open/close switch operation
   2. 1 (PU) - 2 (R): Continuity should exist.
   3. CLOSE switch operation
   4. 3 (L) - 2 (R): Continuity should exist.
   5. TILT DOWN operation
   6. 4 (SB) - 2 (R): Continuity should exist.
   7. OPEN switch operation
   8. 5 (P) - 2 (R) :Continuity should exist.
   9. TILT UP switch operation
   10. 6 (G) - 2 (R) :Continuity should exist.

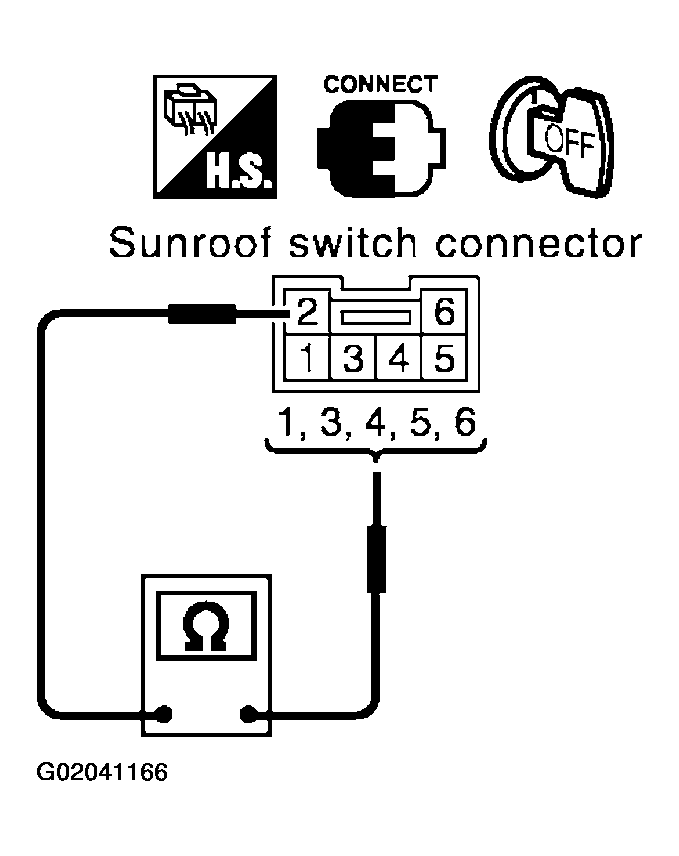

   Fig 1: Checking The Continuity Between Terminals 1, 3, 4, 5, 6 And Terminal 2 On The Sunroof Switch Connector R7

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK >> Sunroof switch is OK.
2. NG >> Replace sunroof switch.
