Consult-II Inspection Procedure

With the ignition switch OFF, connect CONSULT-II and CONLUST-II and CONVERTER to the data link connector, and turn the ignition switch ON.

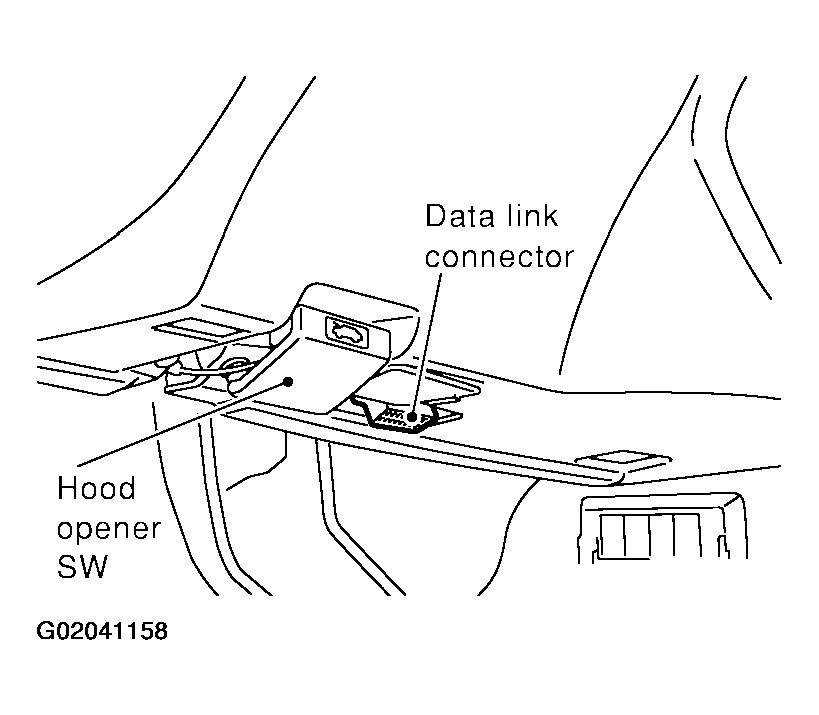

Fig 1: Identifying Data Link Connector And Hood Opener Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

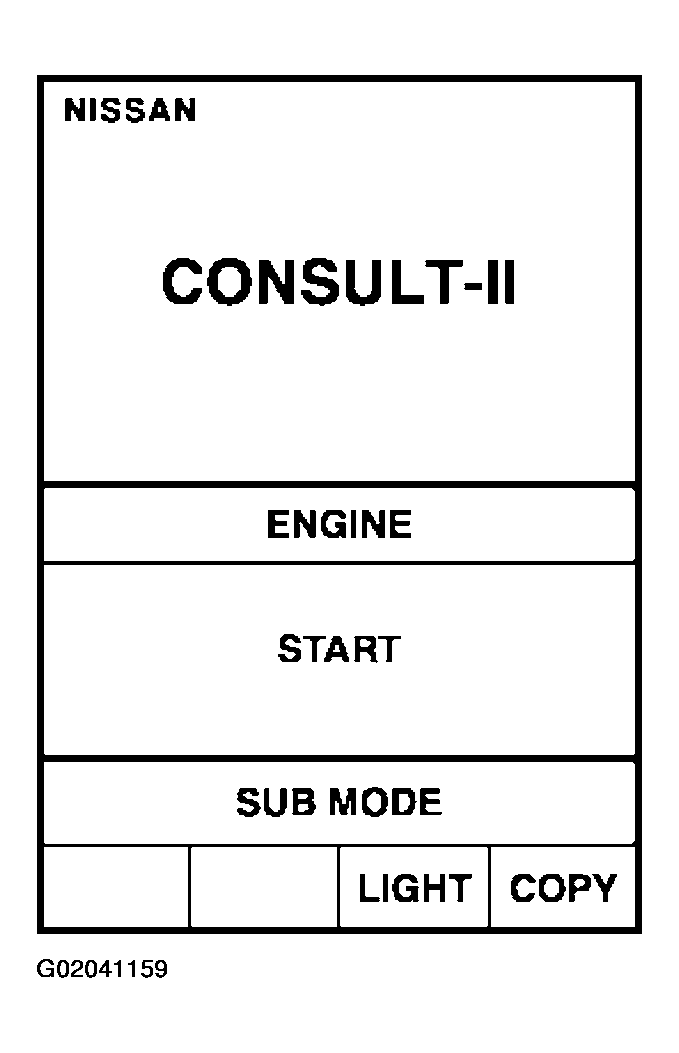

Touch "START".

Fig 2: Consult II START Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

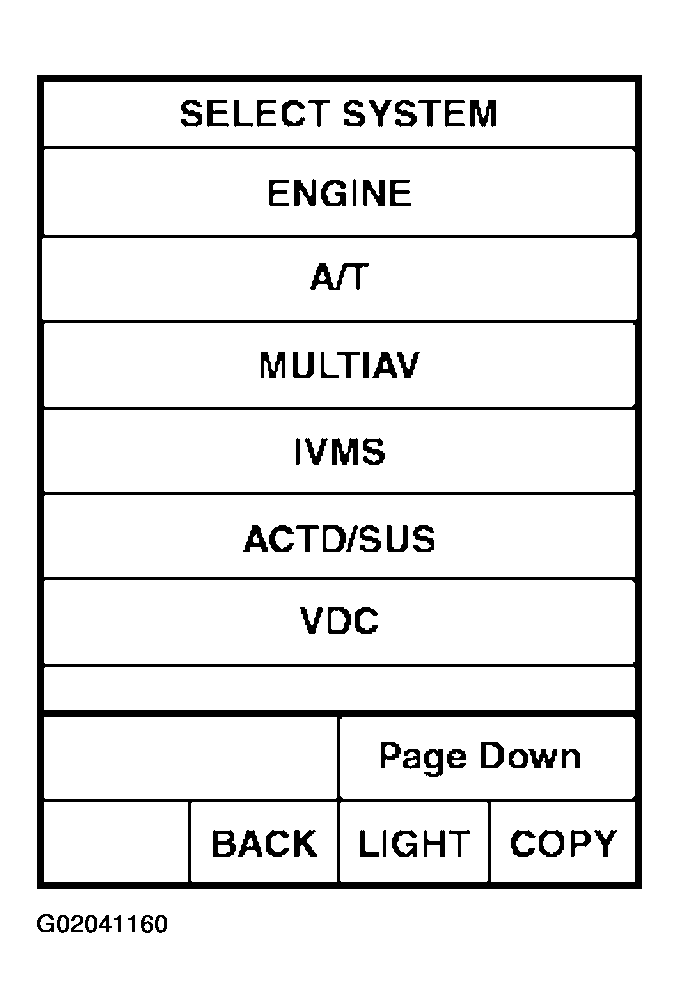

Touch "IVMS" on the "SELECT SYSTEM" screen.
If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

Fig 3: Consult II IVMS Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

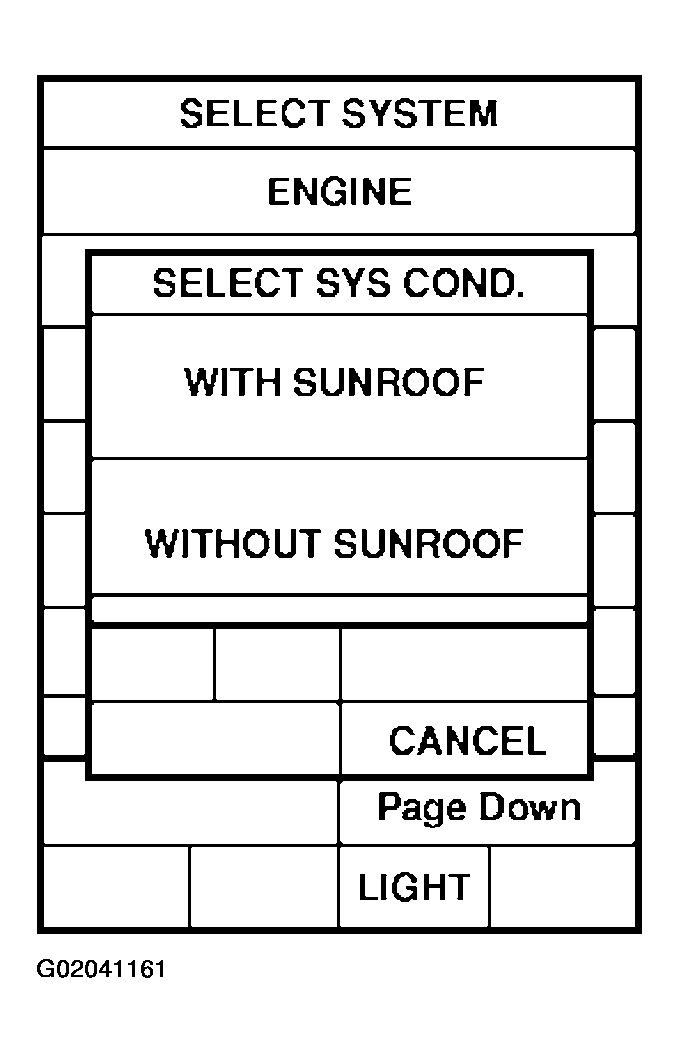

Touch "WITH SUNROOF" on the "SELECT SYS COND" screen.
Touch "OK". If the selection is wrong, touch "CANCEL".

Fig 4: Consult II SELECT SYS COND Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

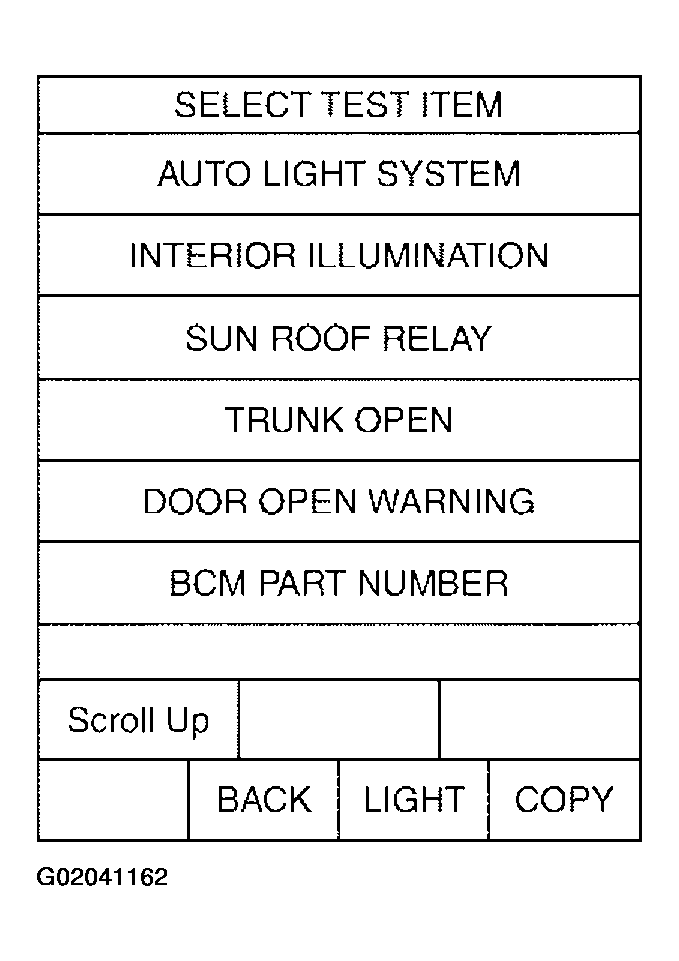

Touch "SUNROOF RELAY" on the "SELECT TEST ITEM" screen.

Fig 5: Consult II SUNROOF RELAY Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
