Communication System Schematic
Communication System Schematic

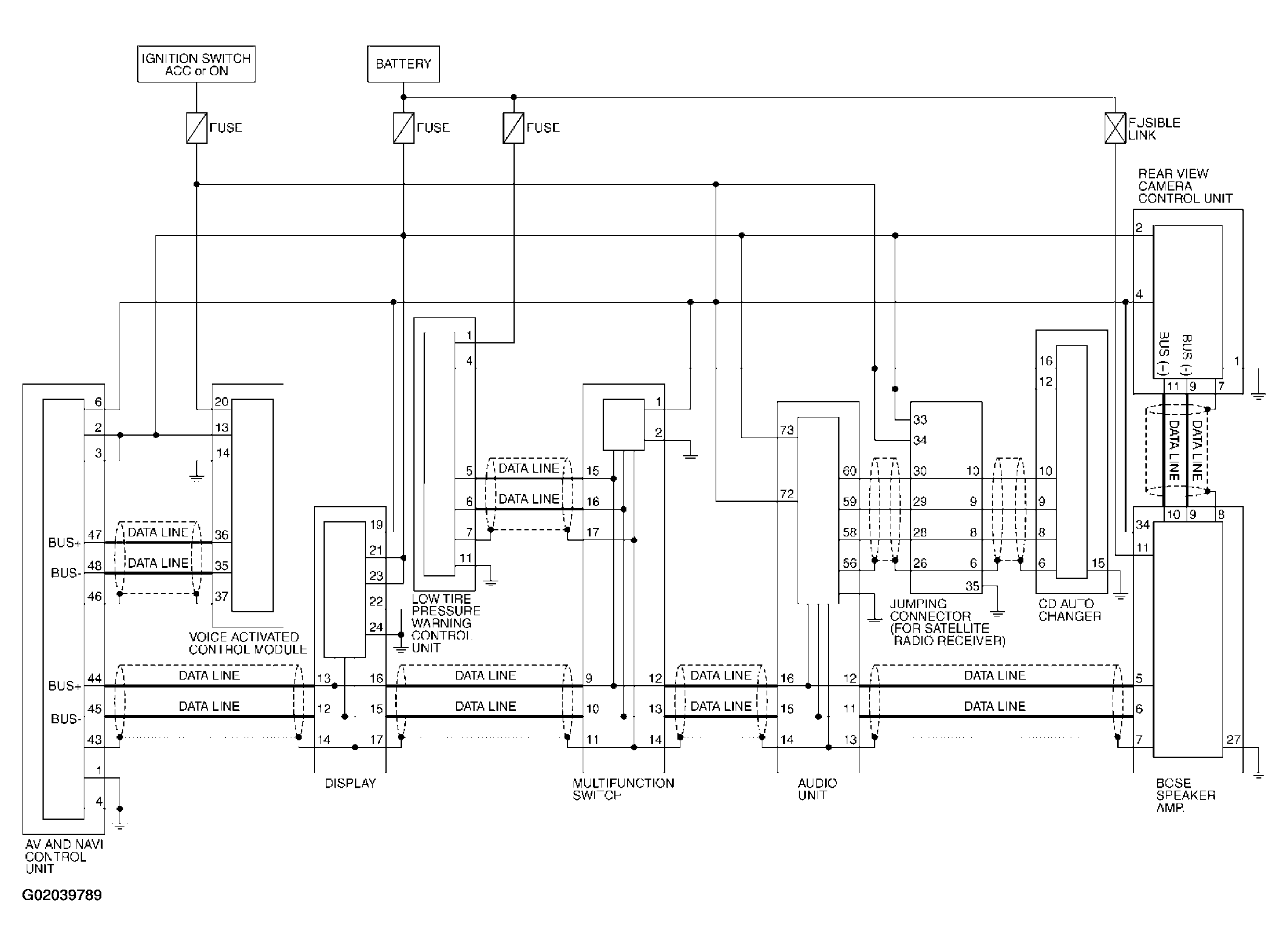

Fig 1: COMM - Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
