Terminals and Reference Value for Rear Control Switch

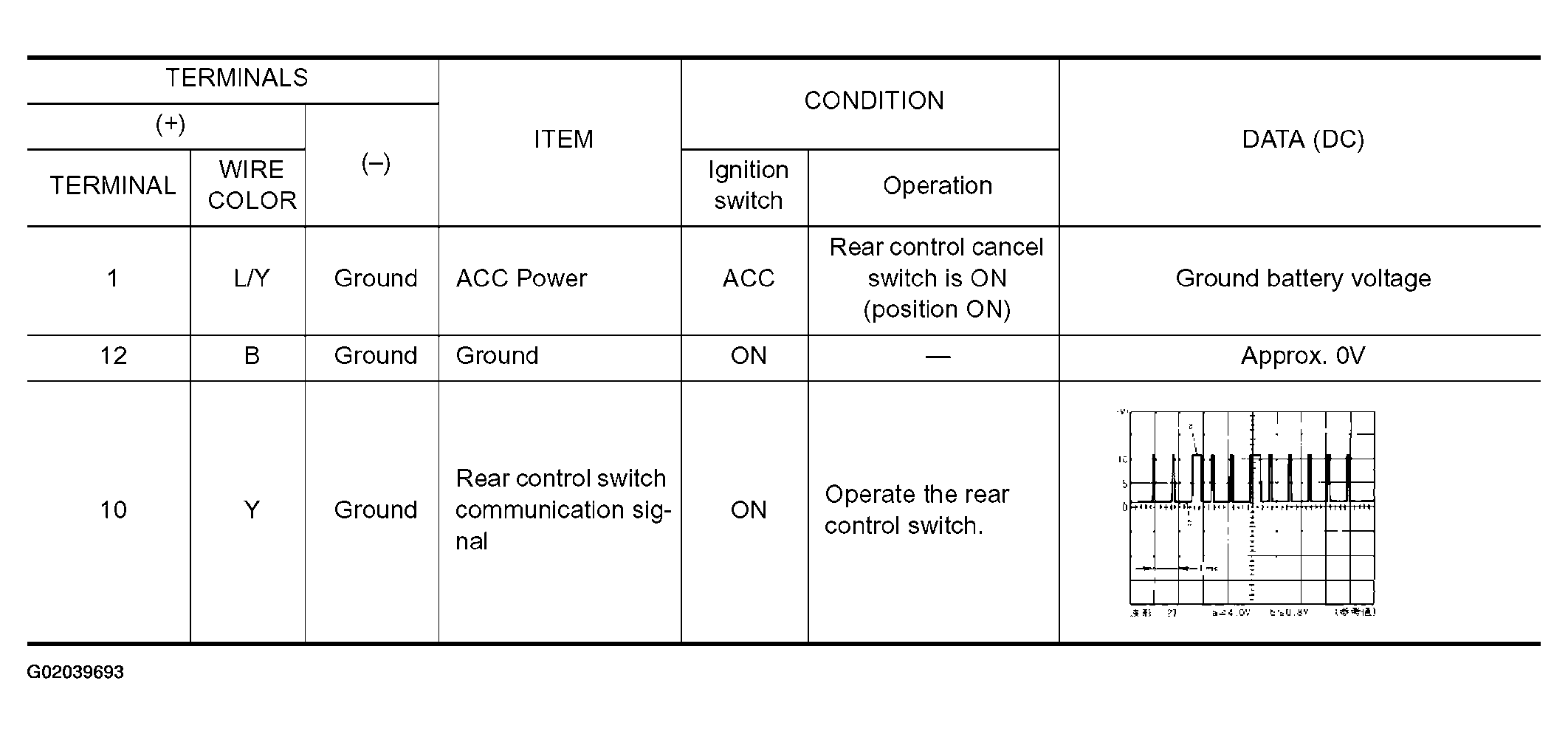

Fig 1: Rear Control Switch Terminals And Reference Value

G02039693

Courtesy of NISSAN MOTOR CO., U.S.A.
