Terminals and Reference Value for Rear Control Cancel Switch
Terminals and Reference Value for Rear Control Cancel Switch

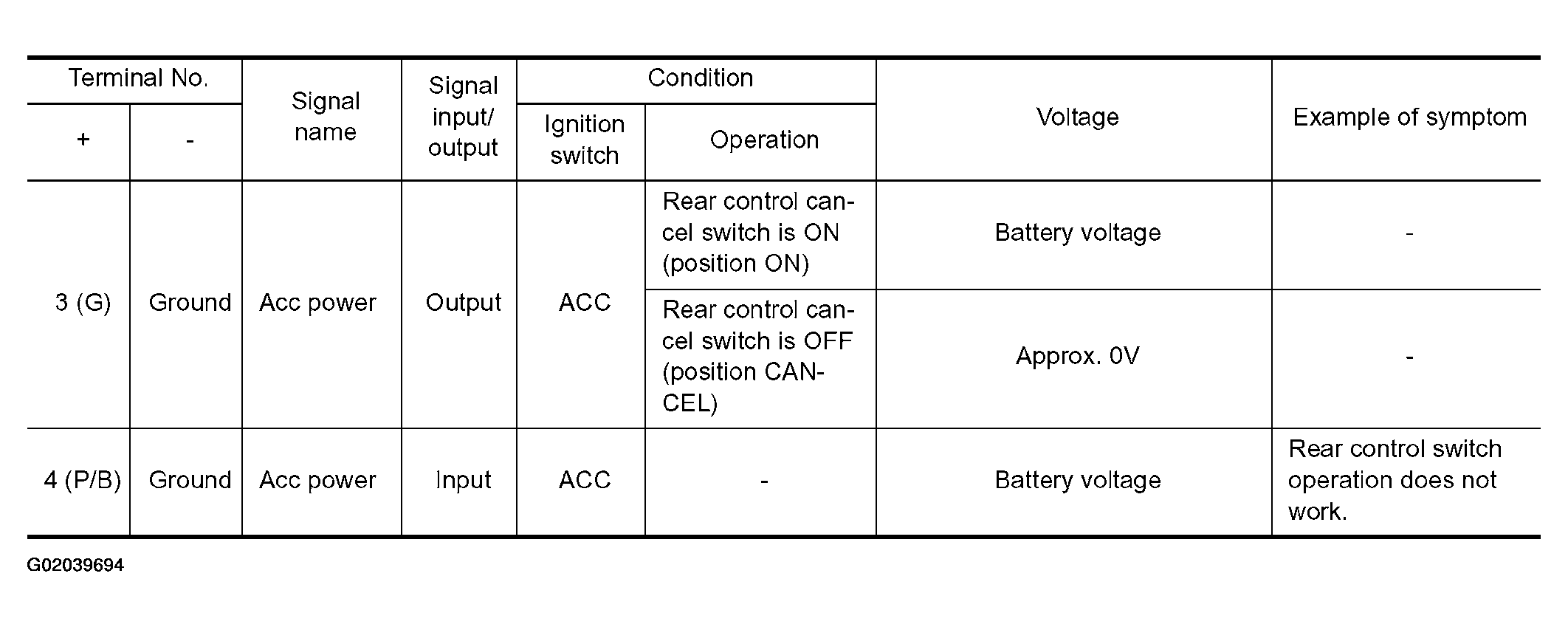

Fig 1: Rear Control Cancel Switch Terminals And Reference Value
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
