Terminals and Reference Value for Audio Unit

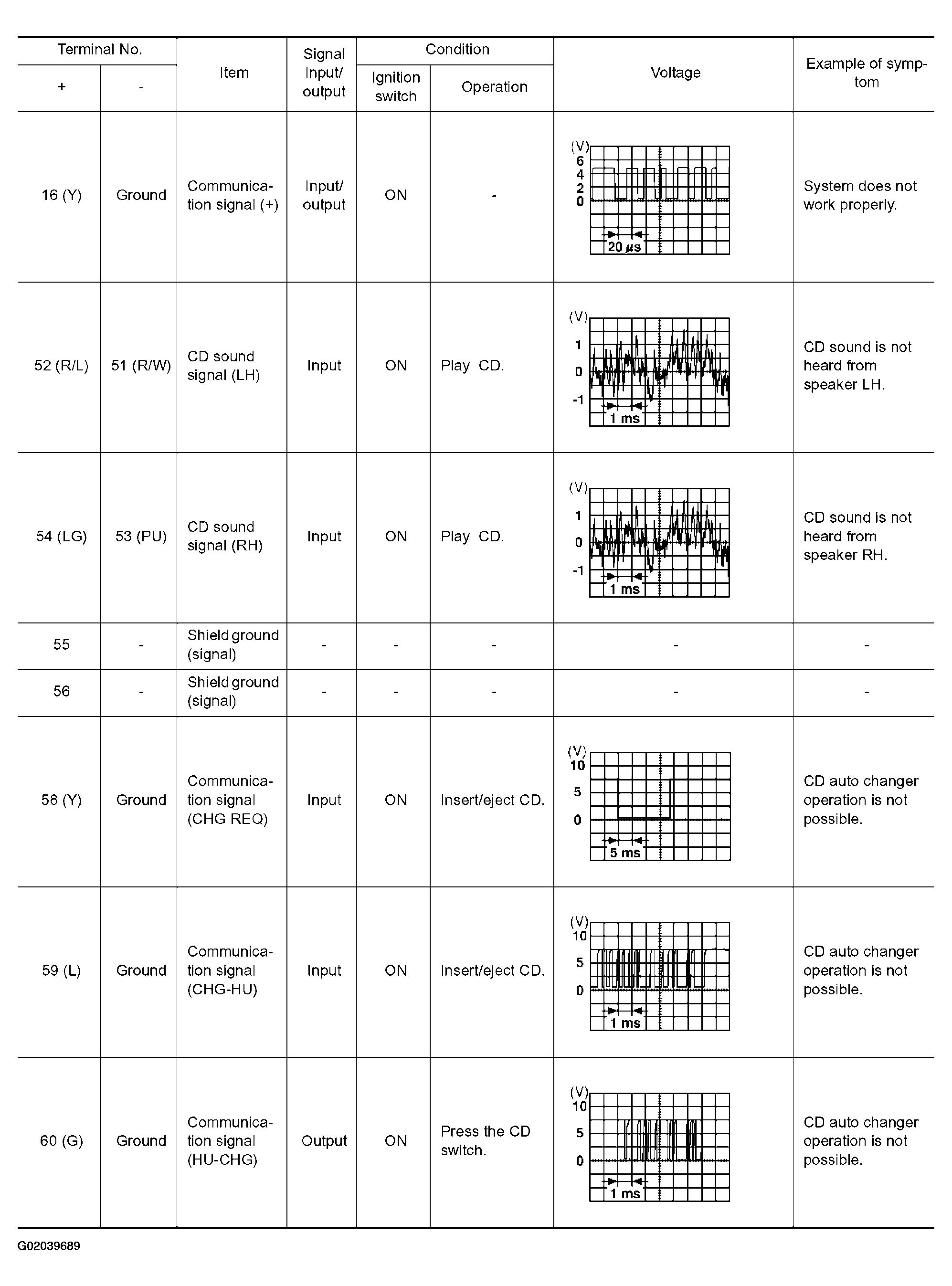

Fig 1: Audio Unit Terminals and Reference Value (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

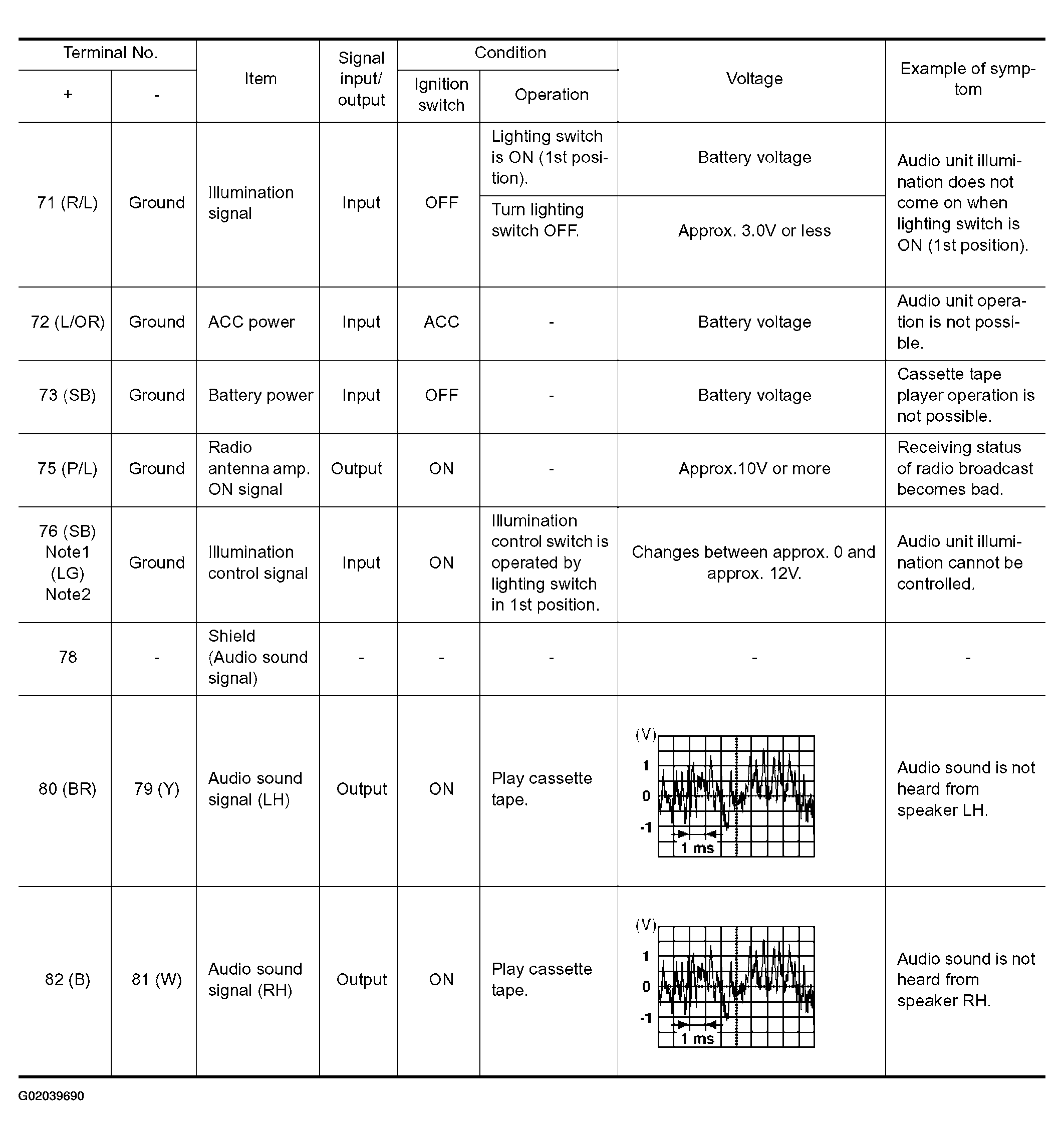

Fig 2: Audio Unit Terminals and Reference Value (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

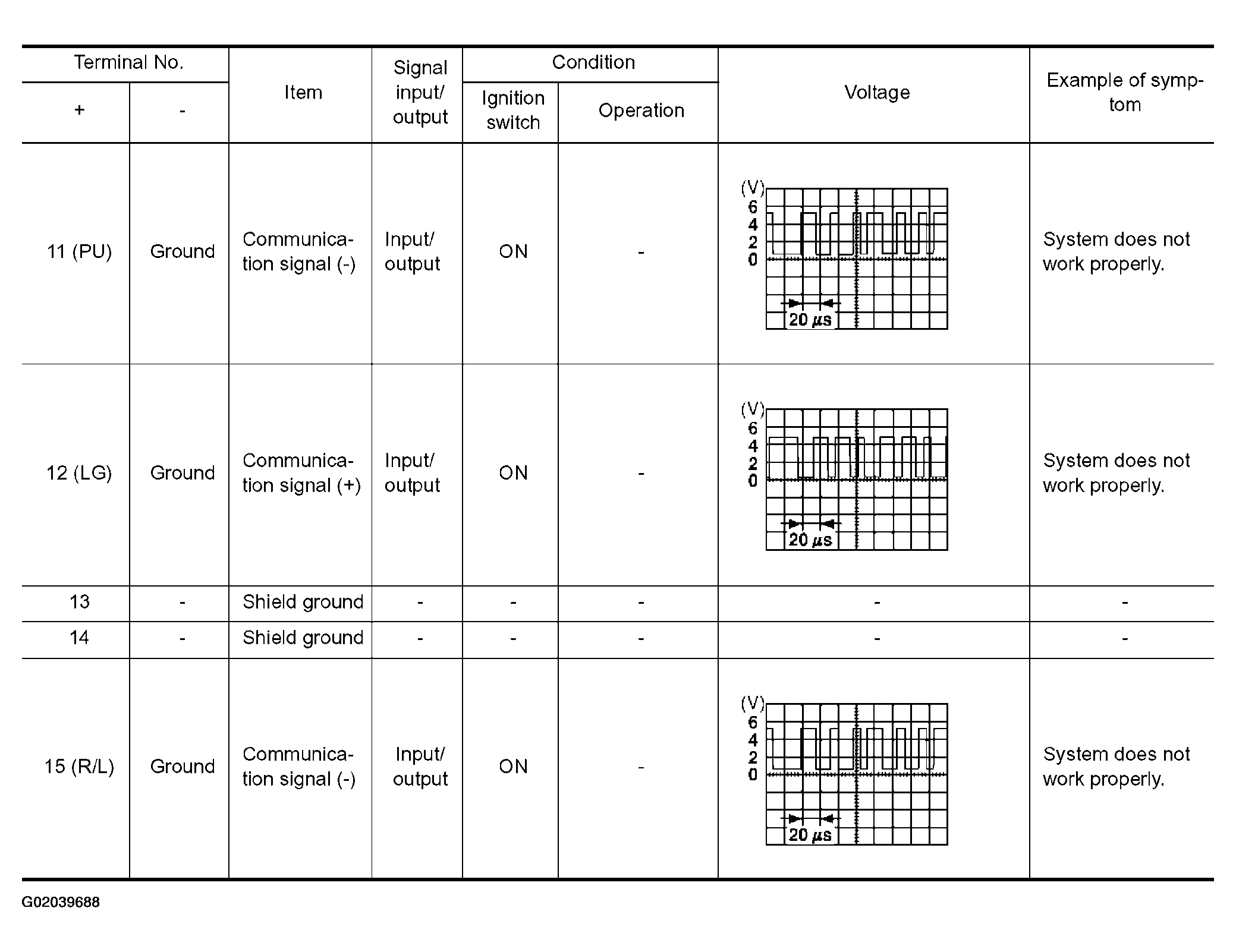

Fig 3: Audio Unit Terminals and Reference Value (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

1. With NAVI and for Canada with rear control switch.
2. Without NAVI.
