Steering Switch Does Not Operate

1. Carry out the self-diagnosis mode in the self-diagnosis function.
2. Push steering switch.
   1. Beep sound should operate.

OK or NG

1. OK - GO TO 2.
2. NG - GO TO  3 .

1. Carry out the self-diagnosis mode in the self-diagnosis function. Refer to "SELF-DIAGNOSIS MODE " (with navigation system) or refer to "SELF-DIAGNOSIS MODE ".

Dose self-diagnosis start?

1. YES - With self-diagnosis results, check the malfunction part.
2. NO -
   • Check multi-function switch of power supply and ground circuit check. Refer to "Inspection of Multifunction Switch for Power Supply and Ground Circuit ".
   • Check harness between multi-function switch and AV and NAVI control unit or AV control unit.

1. Turn ignition switch OFF.
2. Disconnect steering switch connector and multi-function switch connector.
3. Check the following.
   • Continuity between steering switch harness connector M444 terminal 2 (L) and multi-function switch harness connector M83 terminal 7 (GY/L).

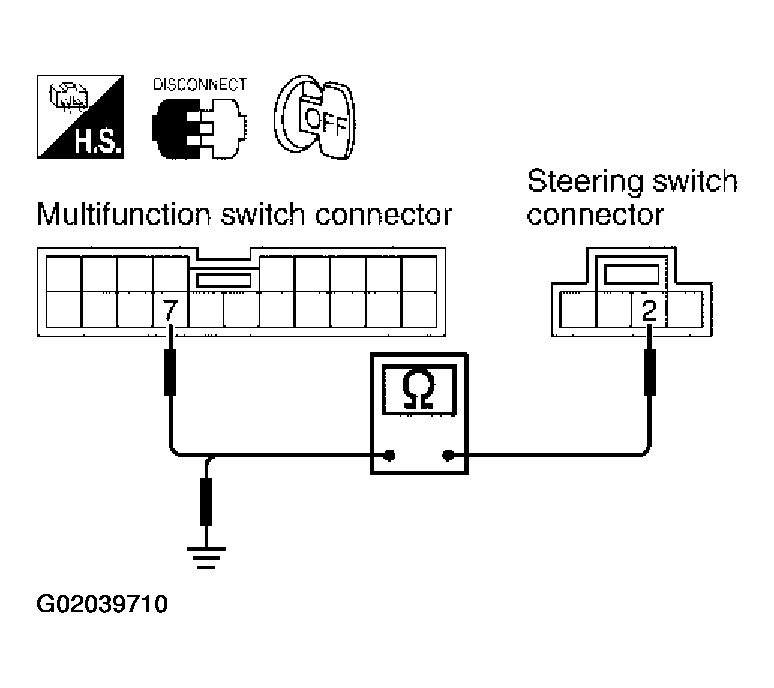

     Fig 1: Checking Continuity Between Steering Switch Harness Connector Terminal 2 And Multi-Function Switch Harness Connector Terminal 7

     Courtesy of NISSAN MOTOR CO., U.S.A.
   • Continuity between steering switch harness connector M444 terminal 2 (L) and ground.

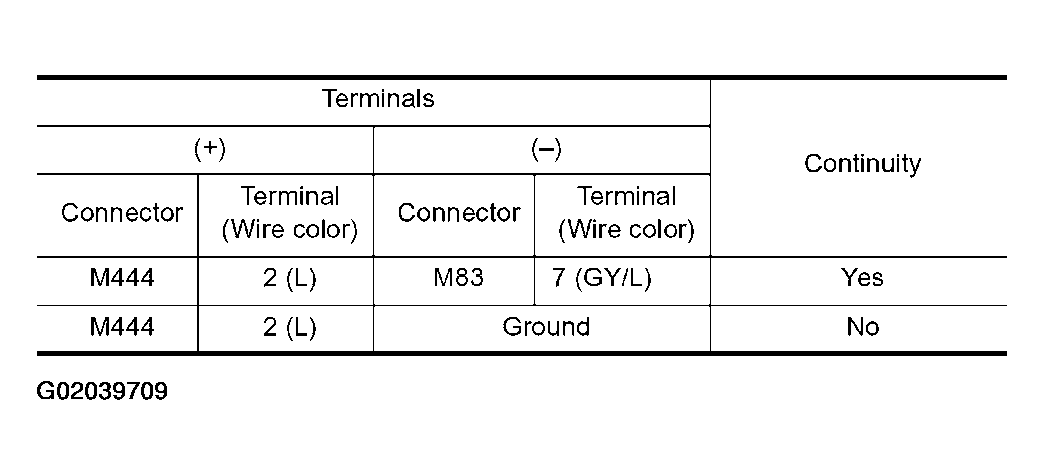

   Fig 2: Steering Switch Circuit Check Table

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK - GO TO 4.
2. NG - Check the following.
   • Harness between for open or short steering switch and spiral cable.
   • Connector housing terminal for disconnection and looseness.

1. Check horn operation.
   1. Horn should operate.

OK or NG

1. OK - GO TO 5.
2. NG - Check horn system.

1. Connect steering switch connector.
2. Turn the ignition switch ON.
3. Check harness between steering switch harness connector M444 terminal 1(R) and ground.

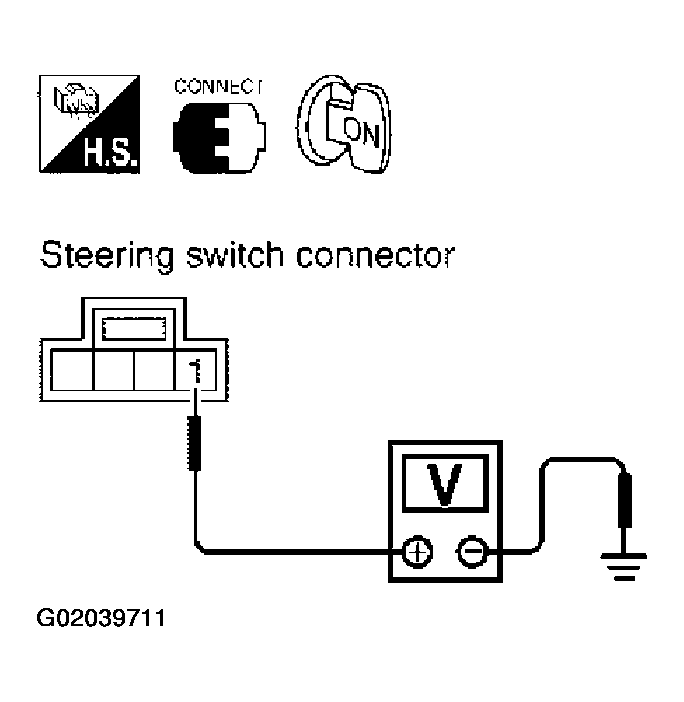

   Fig 3: Checking Harness Between Steering Switch Harness Connector M444 Terminal 1 (R) And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
   1. Battery voltage should exist.

OK or NG

1. OK - GO TO 6
2. NG - Check harness for open or short between steering switch and horn relay [located in fuse, fusible link and relay block (J/B)]

1. Disconnect steering switch connector.
2. Check harness between steering switch harness connector M444 terminal 3 (B) and ground.

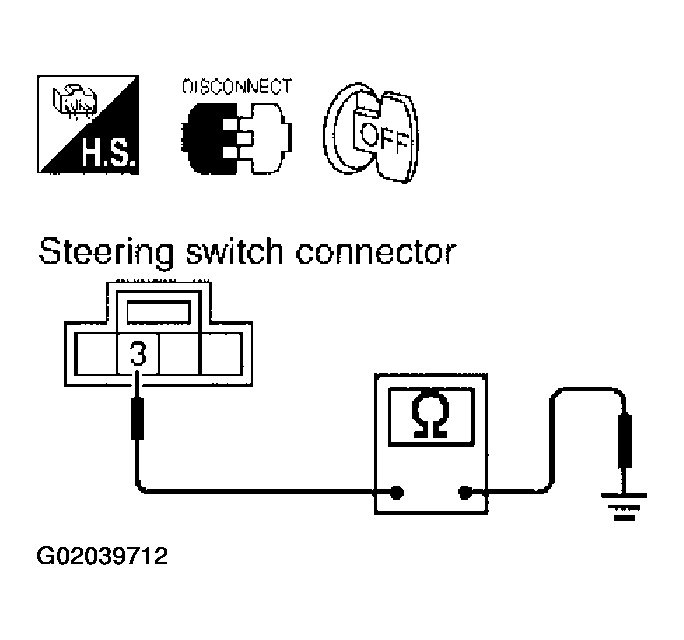

   Fig 4: Checking Harness Between Steering Switch Harness Connector M444 Terminal 3 (B) And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
   1. Continuity should exist.

OK or NG

1. OK - Replace steering switch.
2. NG - Repair or replace harness.
