Entertainment Systems: Audio: Schematic

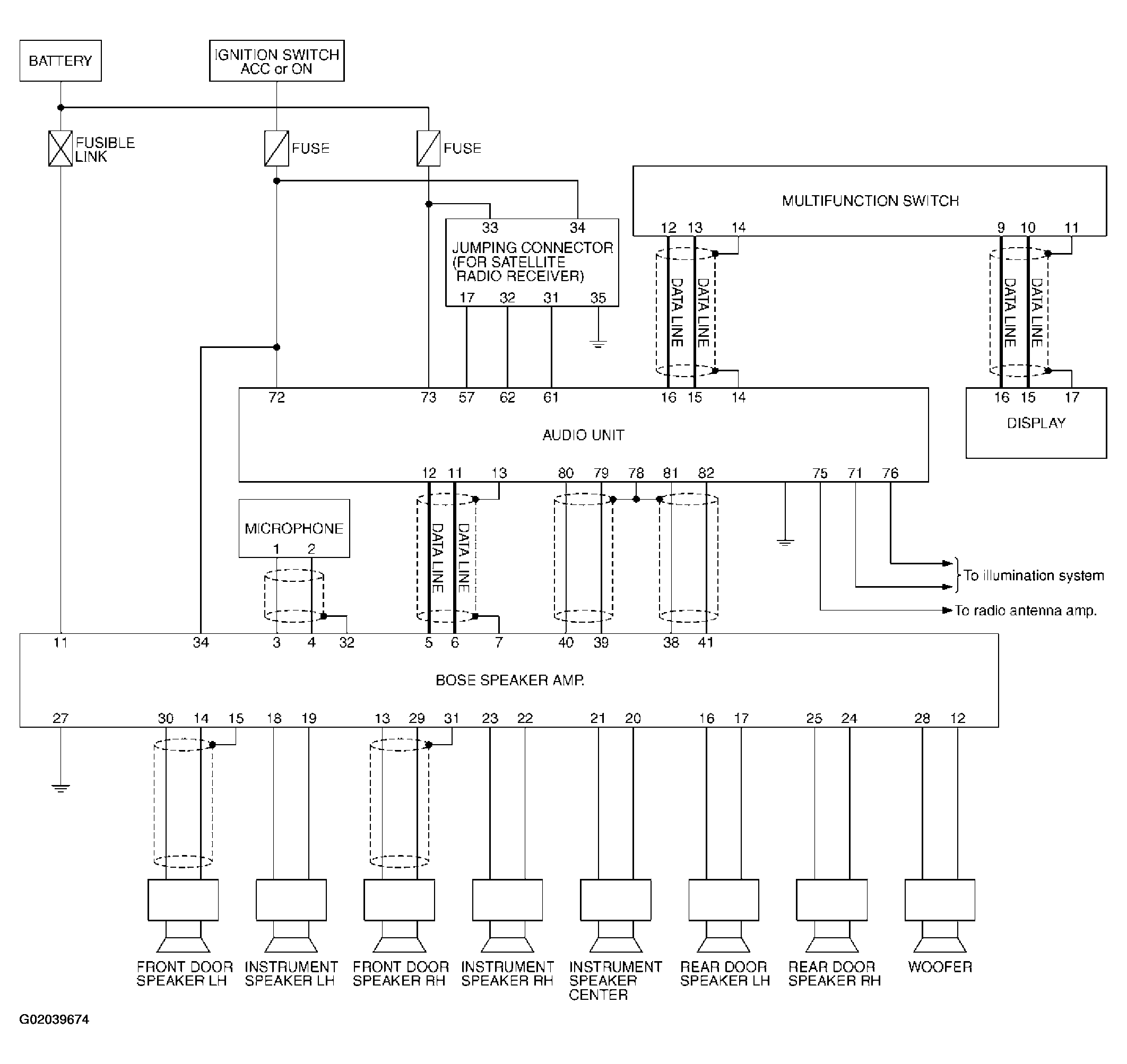

Fig 1: Schematic

G02039674

Courtesy of NISSAN MOTOR CO., U.S.A.
