Rear Control Switch Audio Operation Does Not Work

1. Is it activated by normal audio operation?

YES or NO

1. YES - GO TO 2.
2. NO - Refer to "AUDIO SYSTEM DOES NOT TURN ON  "

1. Carry out the self-diagnosis mode in the self-diagnosis function. For models with navigation, refer to "SELF-DIAGNOSIS MODE ", and for models without navigation, refer to "SELF-DIAGNOSIS MODE ".

Is the self-diagnosis result OK?

1. OK - GO TO 3.
2. NG - With self-diagnosis results, check the faulty part.

1. Turn ignition switch OFF.
2. Disconnect rear control switch connector and multi-function switch connector.
3. Check the following.

• Continuity harness between rear control switch harness connector B502 terminal 10(Y) and multi-function switch harness connector M83 terminal 8 (Y).
• Continuity between rear control switch harness connector B502 terminal 10 (Y) and ground.

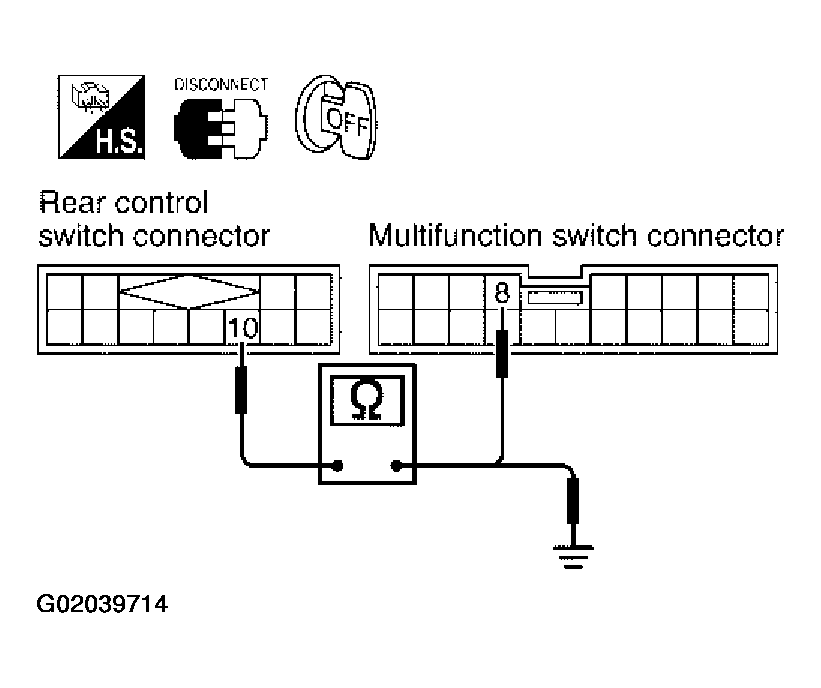

  Fig 1: Checking Continuity Between Rear Control Switch Harness Connector B502 Terminal 10 (Y) And Ground

  Courtesy of NISSAN MOTOR CO., U.S.A.

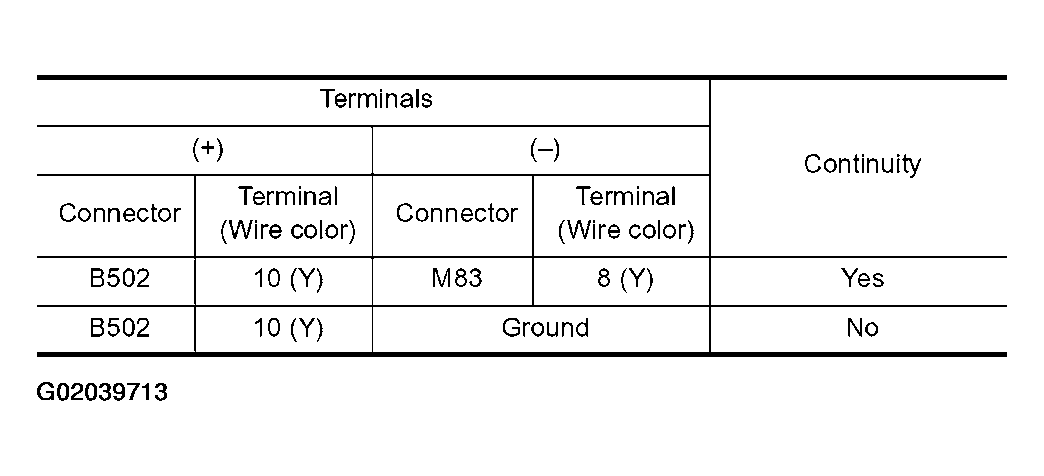

  Fig 2: Rear Control Switch Open Or Short Circuit Table

  Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK - Replace rear control switch.
2. NG - Repair or replace harness.
