2. Check ASCD Steering Switch

1. Disconnect ASCD steering switch.
2. Check resistance between M442 terminals 1 and 2 by depressing each switch.

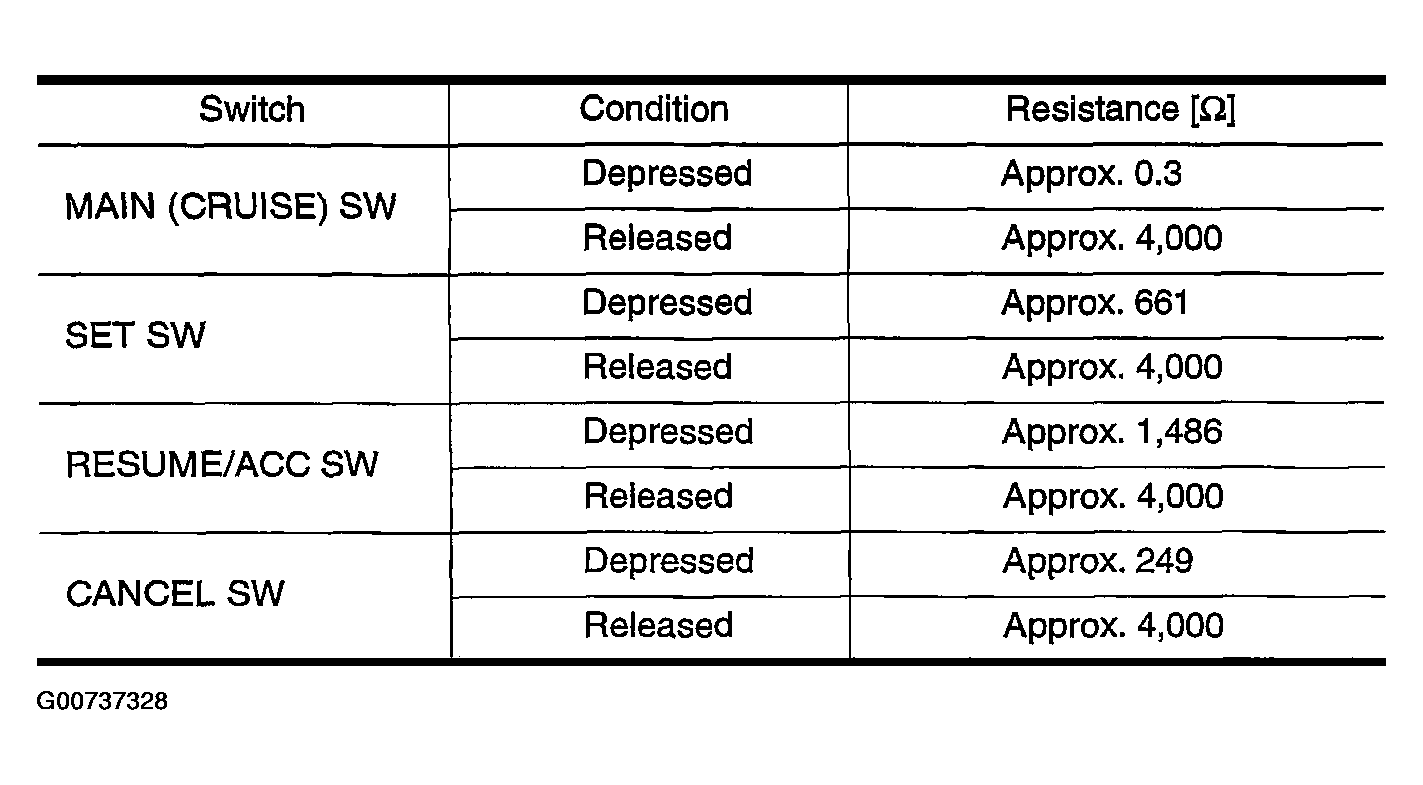

   Fig 1: ASCD Steering Switch Resistance Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 2: Checking ASCD Steering Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Check harness for open or short between ASCD steering switch and ASCD control unit.
2. NG : Replace ASCD steering switch.
