Automatic Speed Control Device (ASCD): Schematic

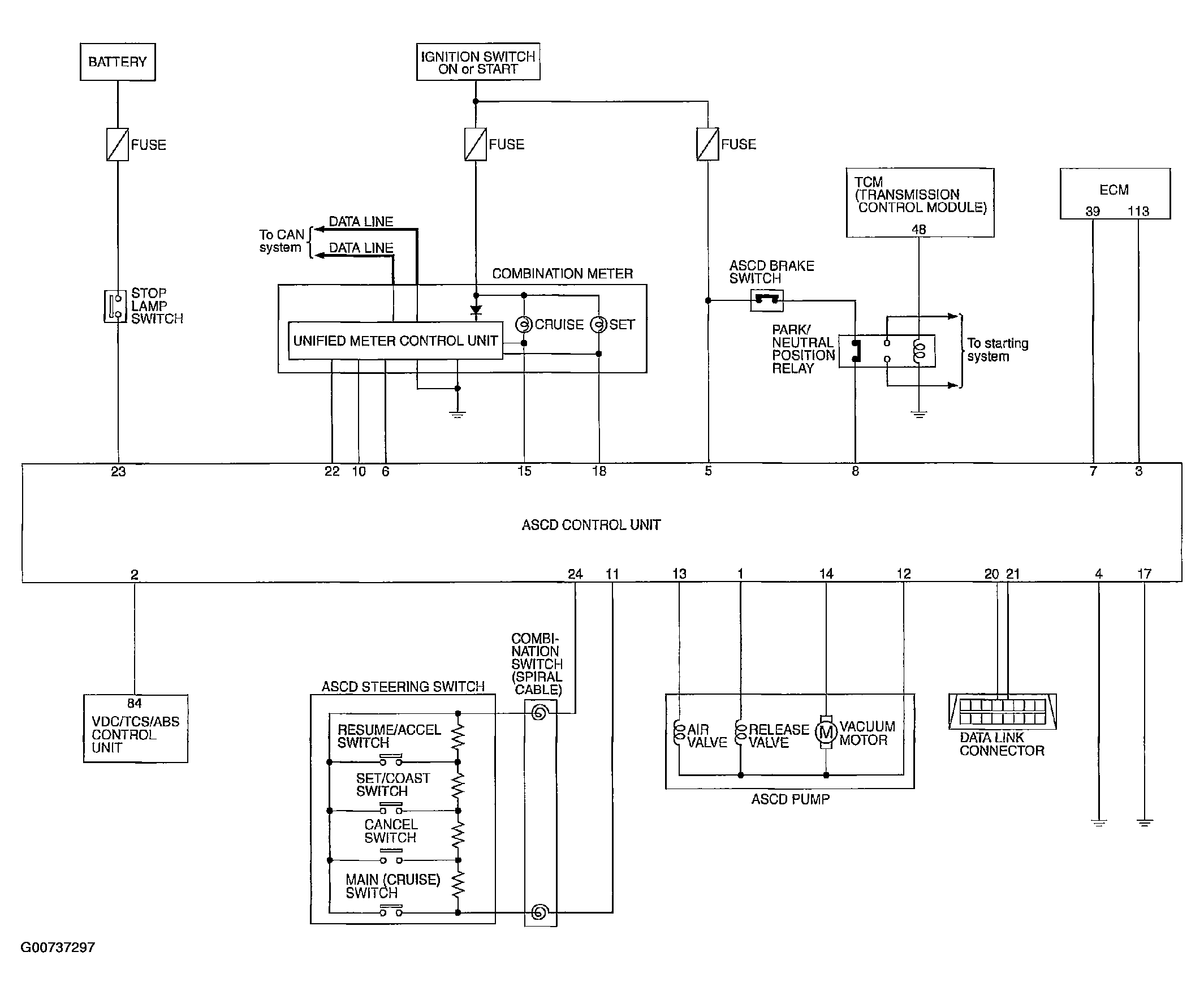

Fig 1: ASCD Wiring Schematic

G00737297

Courtesy of NISSAN MOTOR CO., U.S.A.
