Sleep Control

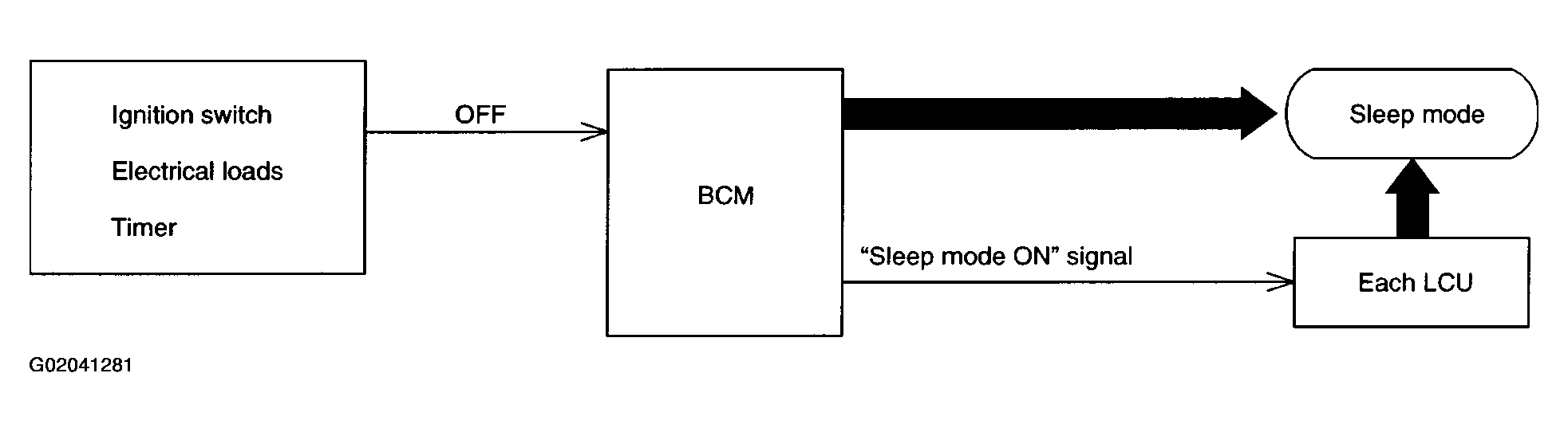

Fig 1: Sleep Control Mode Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

"Sleep" control prevents unnecessary power consumption. After the following conditions are met, the BCM suspends the communication between itself and all LCUs. The whole IVMS is set in the "sleep" mode.

• Ignition switch "OFF"
• All electrical loads (in the IVMS) "OFF"
• Timer "OFF"
