Diagnostic Items Application

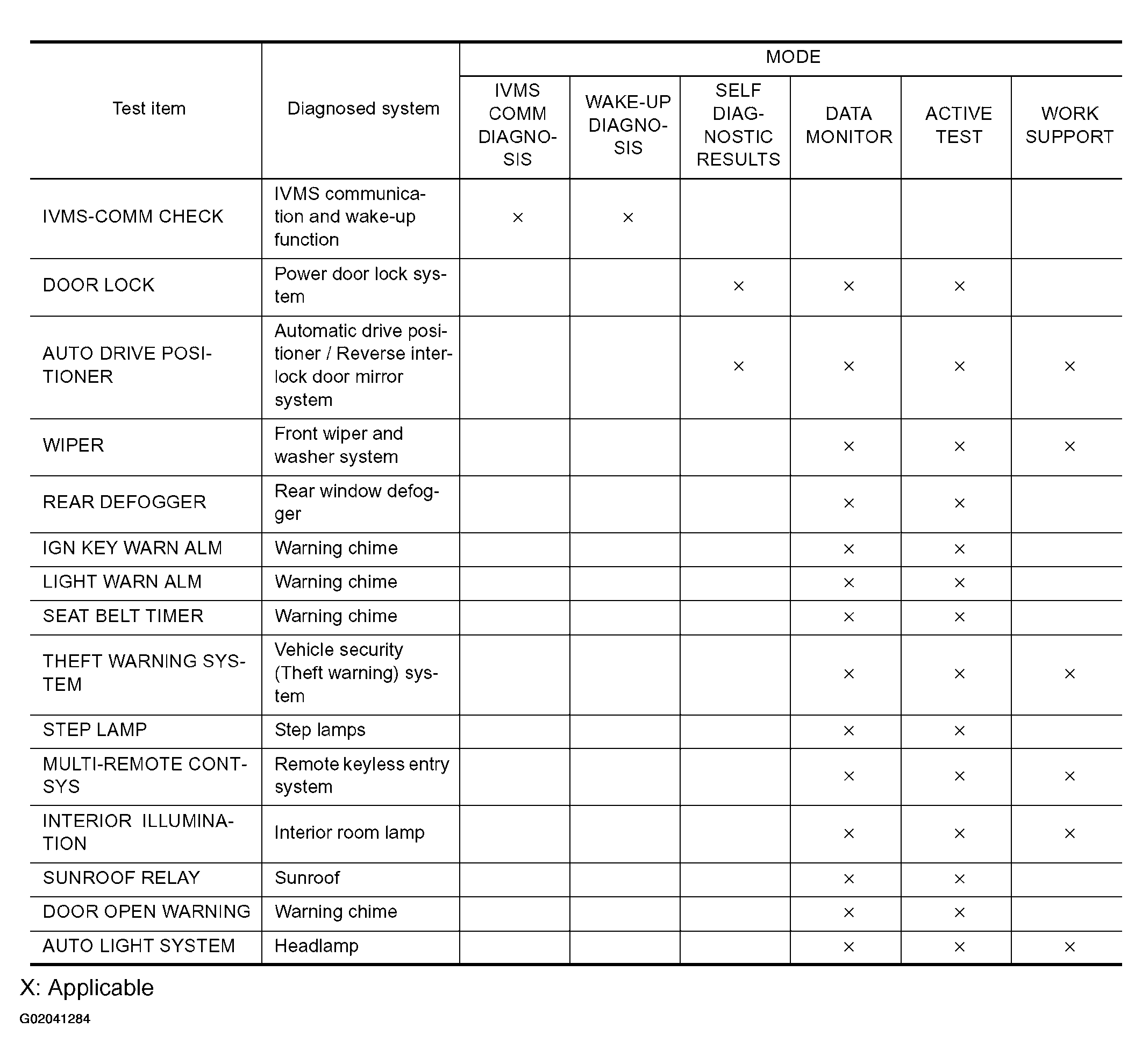

Fig 1: Diagnostic Item Application Chart

G02041284

Courtesy of NISSAN MOTOR CO., U.S.A.

For diagnostic item in each control system, read the CONSULT-II Operation Manual.
