System Description: Notes

When switching the door mirror remote control switch position (LH/RH), the system moves driver or passenger door mirror face downward, in relation to the A/T selector lever being shifted to Reverse Position.
The mirror position with the reverse gear engaged can be adjusted and the adjusted mirror position can be stored in memory (2 positions).
With reverse gear-linked operation signal, the door mirror control unit-driver side / passenger side (LCU) installed on the door panel drives and controls the motors (UP/DOWN, LH/RH).
Using the self-diagnostic function and CONSULT-II, system diagnosis can be performed.

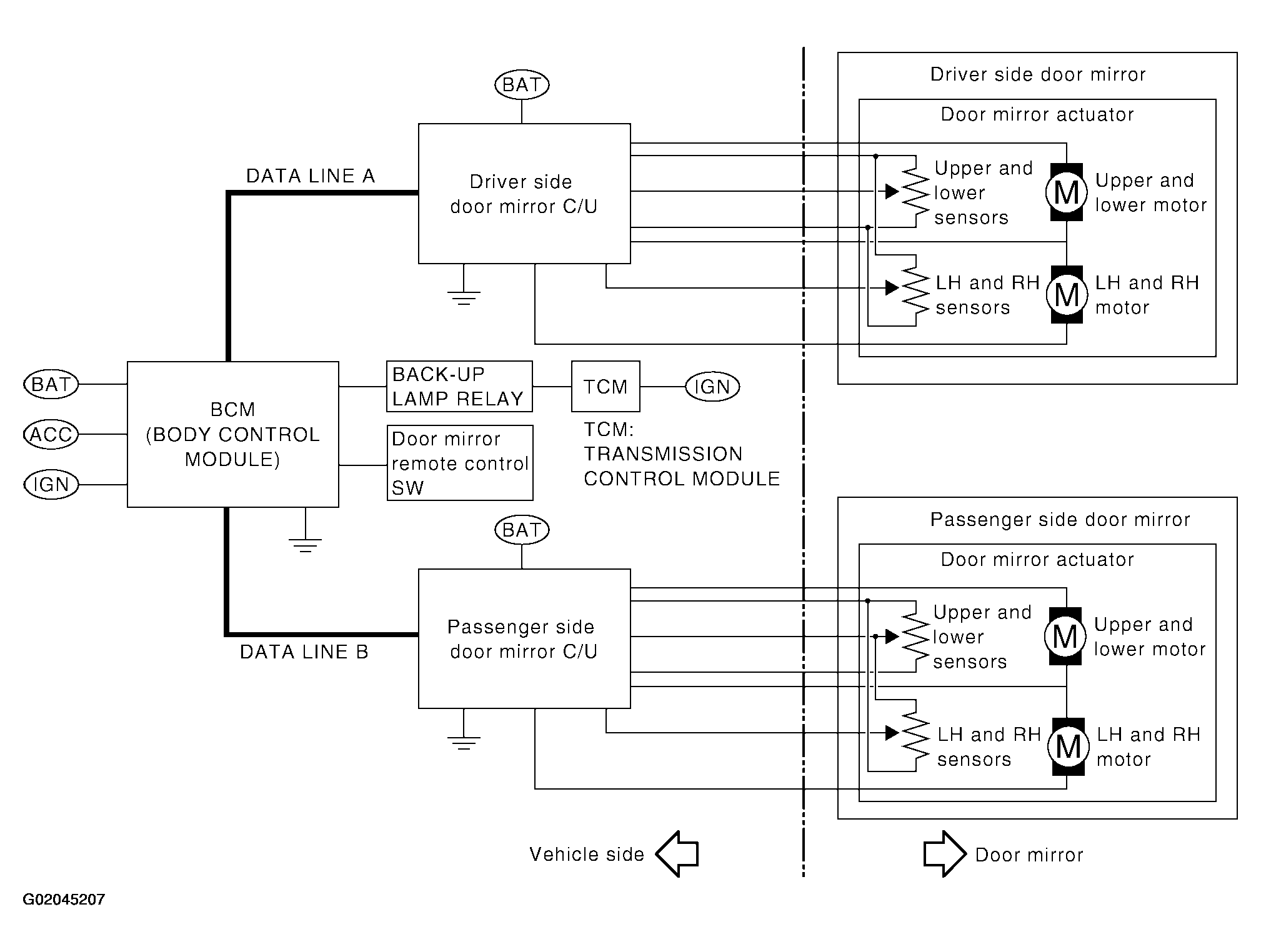

Fig 1: Reverse Interlock Door Mirror System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
