CONSULT-II Function: Notes

CONSULT-II executes the following functions by combining data received and command transmitted via the communication line from BCM. IVMS communication inspection, work support (only function setting of seats and steering wheel), self-diagnosis, data monitor, and active test display.

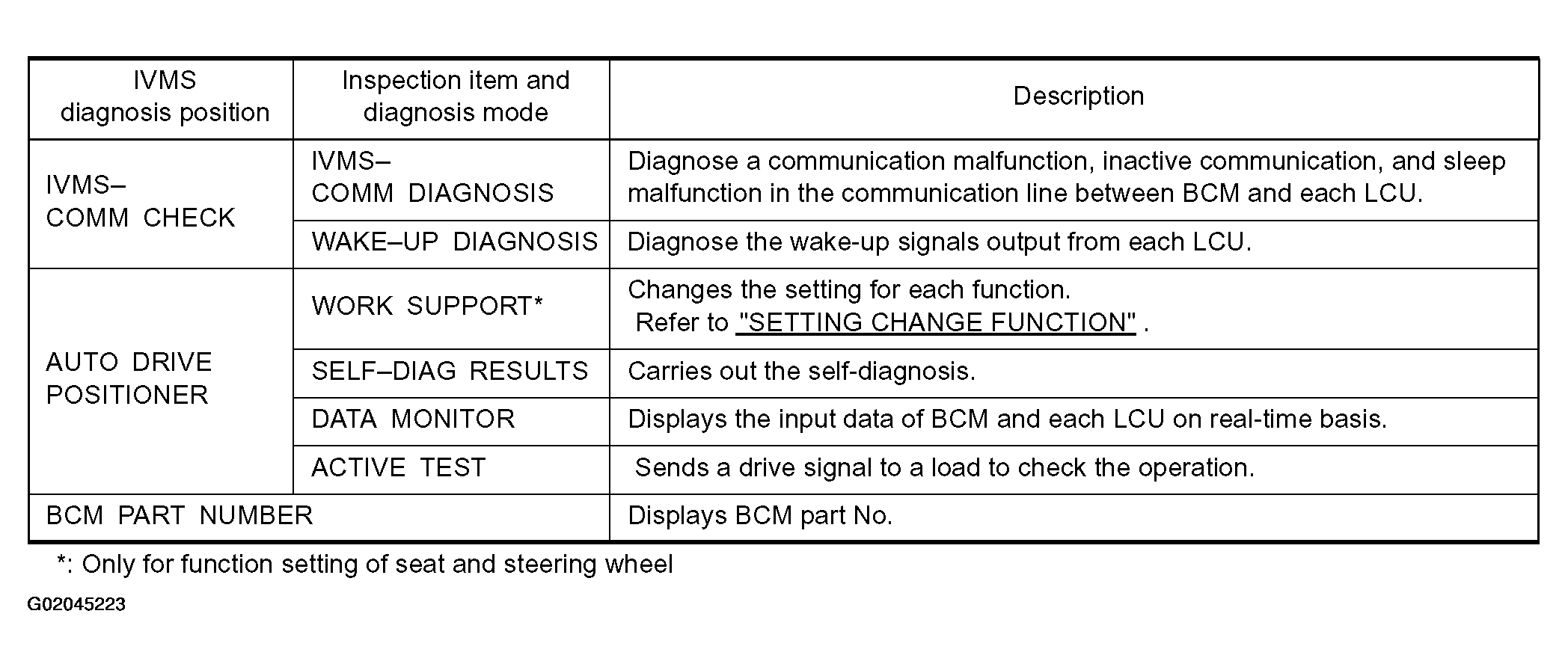

Fig 1: IVMS Diagnose Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
