Symptom Chart

The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.

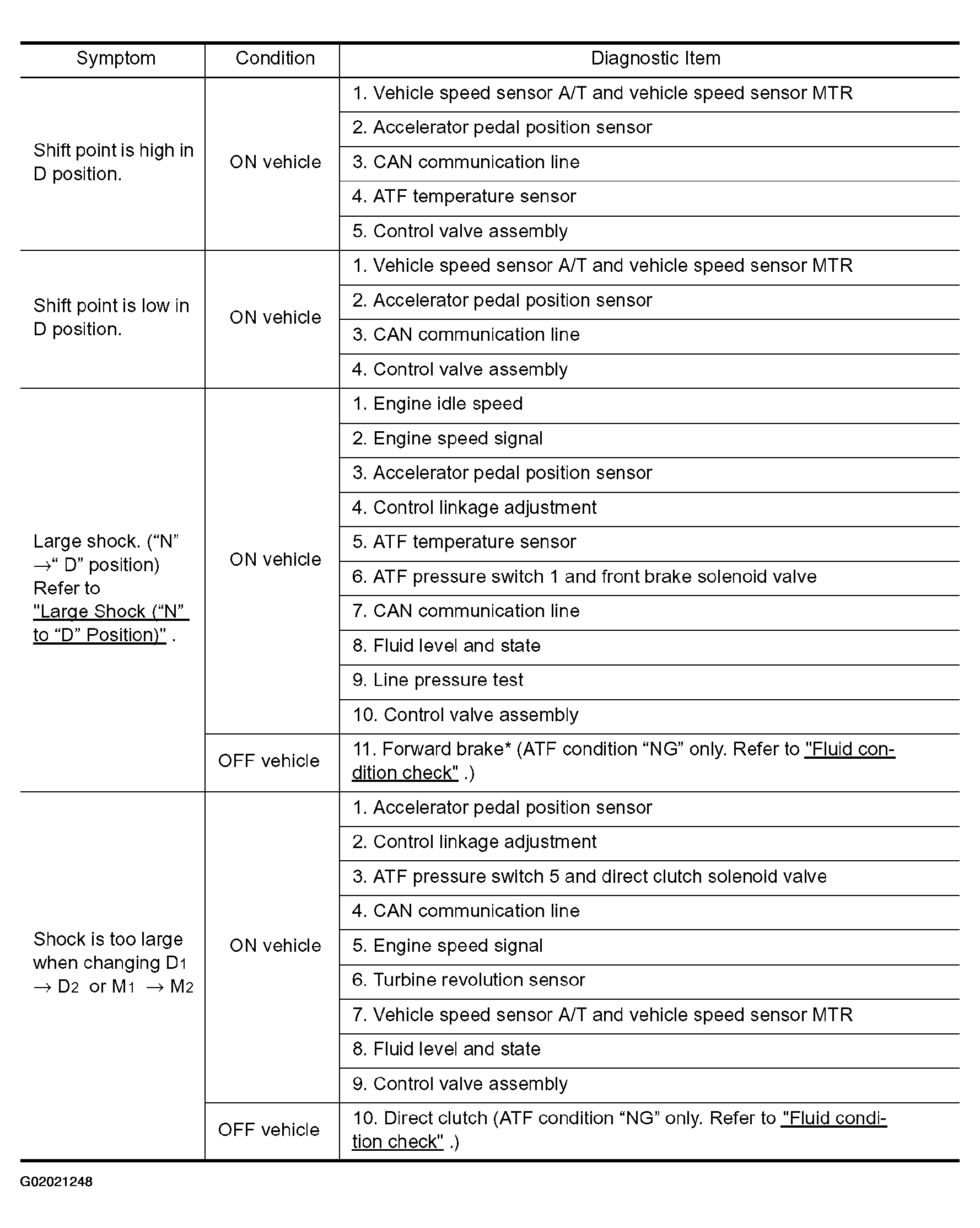

Fig 1: A/T Problem Symptom Chart (1 Of 23)

G02021248

Courtesy of NISSAN MOTOR CO., U.S.A.

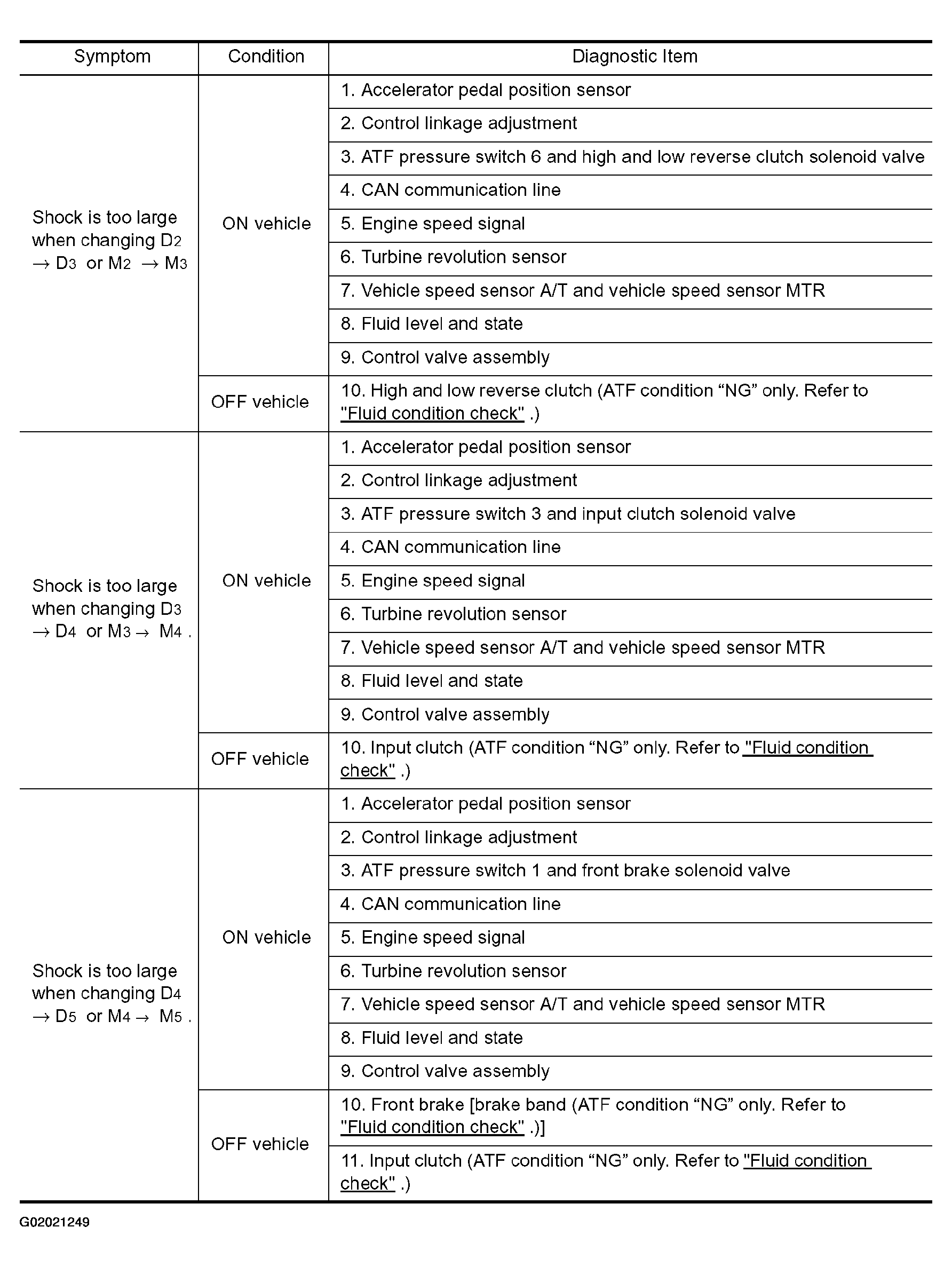

Fig 2: A/T problem symptom chart (2 Of 23)

G02021249

Courtesy of NISSAN MOTOR CO., U.S.A.

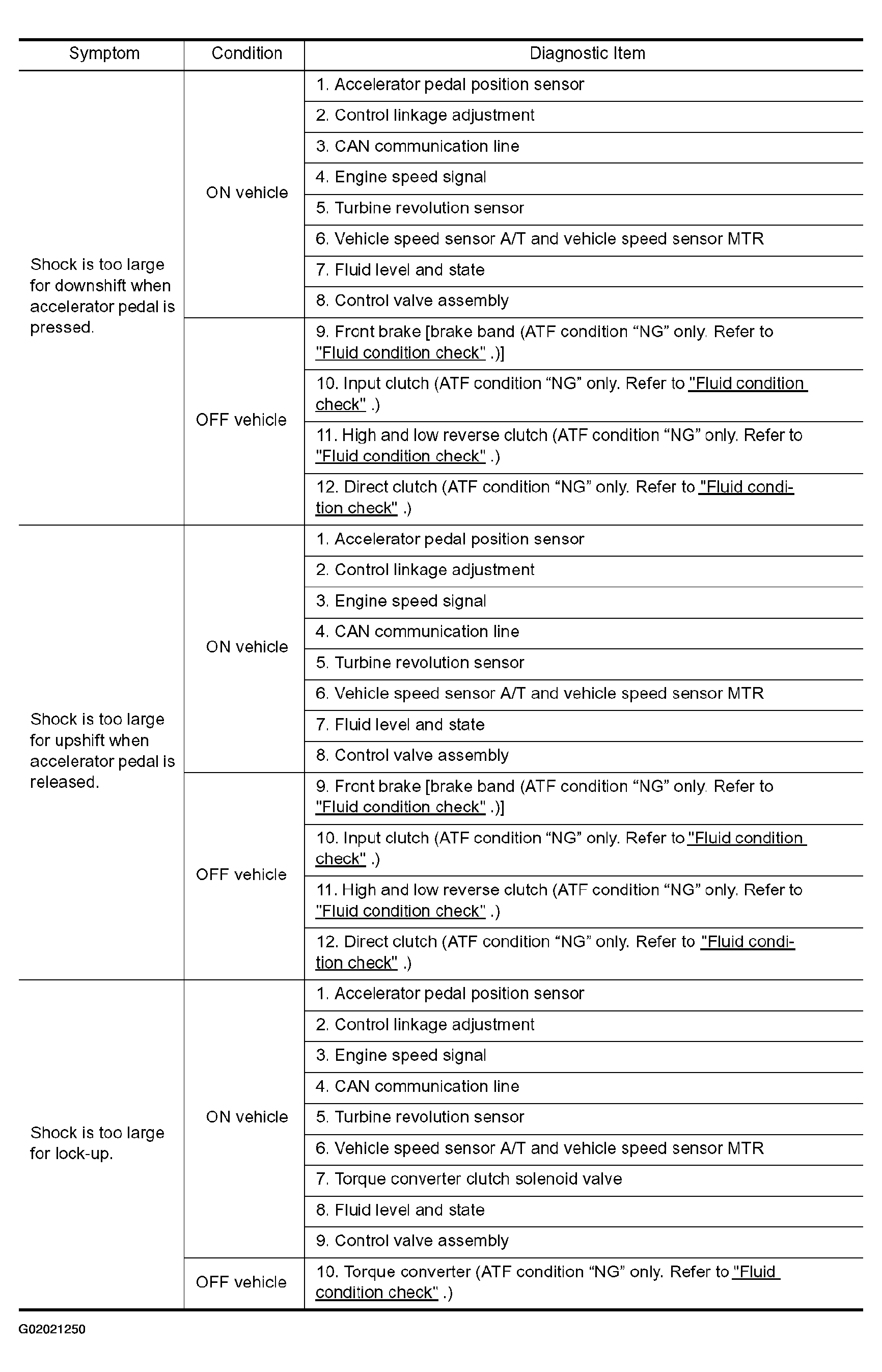

Fig 3: A/T problem symptom chart (3 Of 23)

G02021250

Courtesy of NISSAN MOTOR CO., U.S.A.

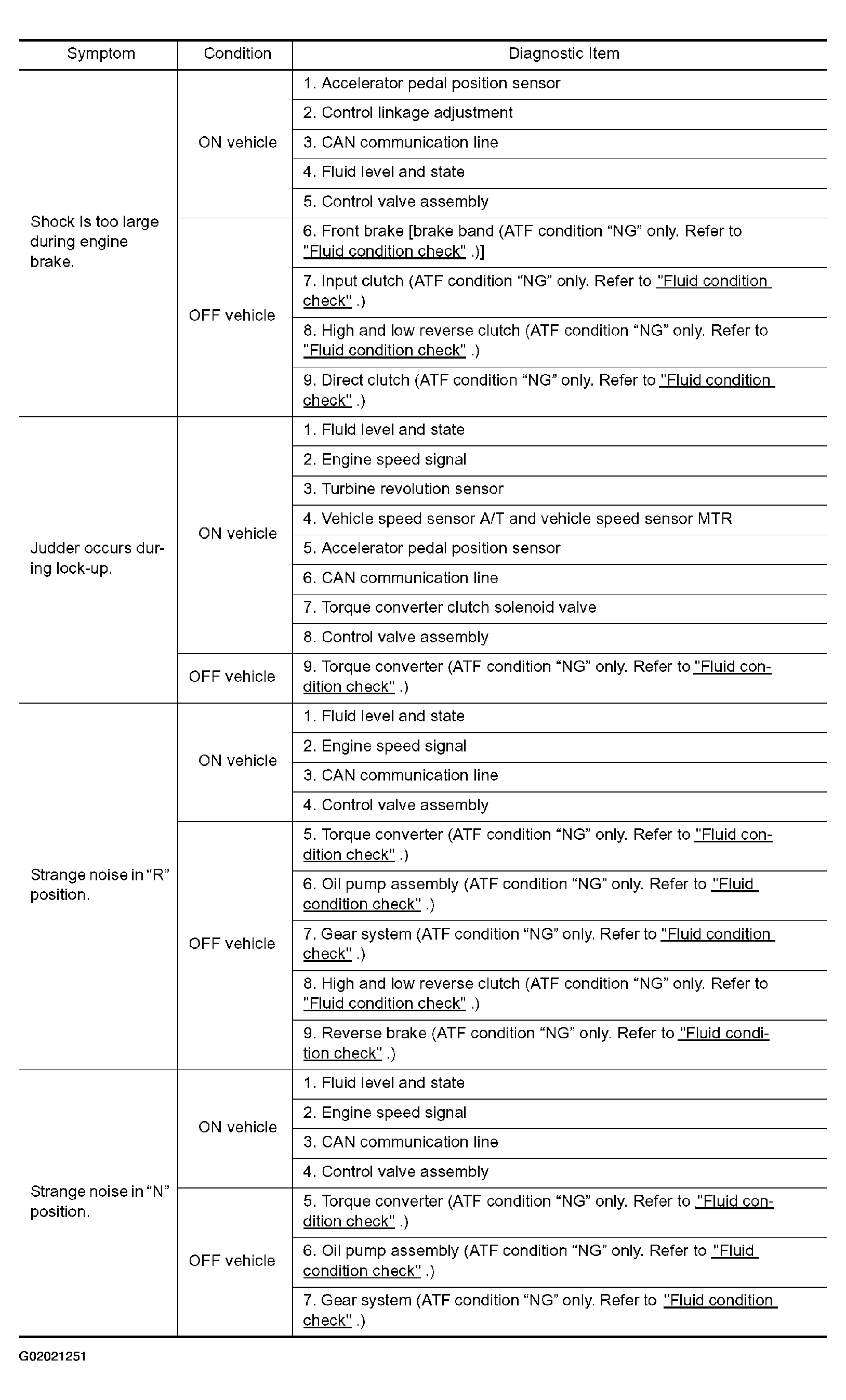

Fig 4: A/T problem symptom chart (4 Of 23)

G02021251

Courtesy of NISSAN MOTOR CO., U.S.A.

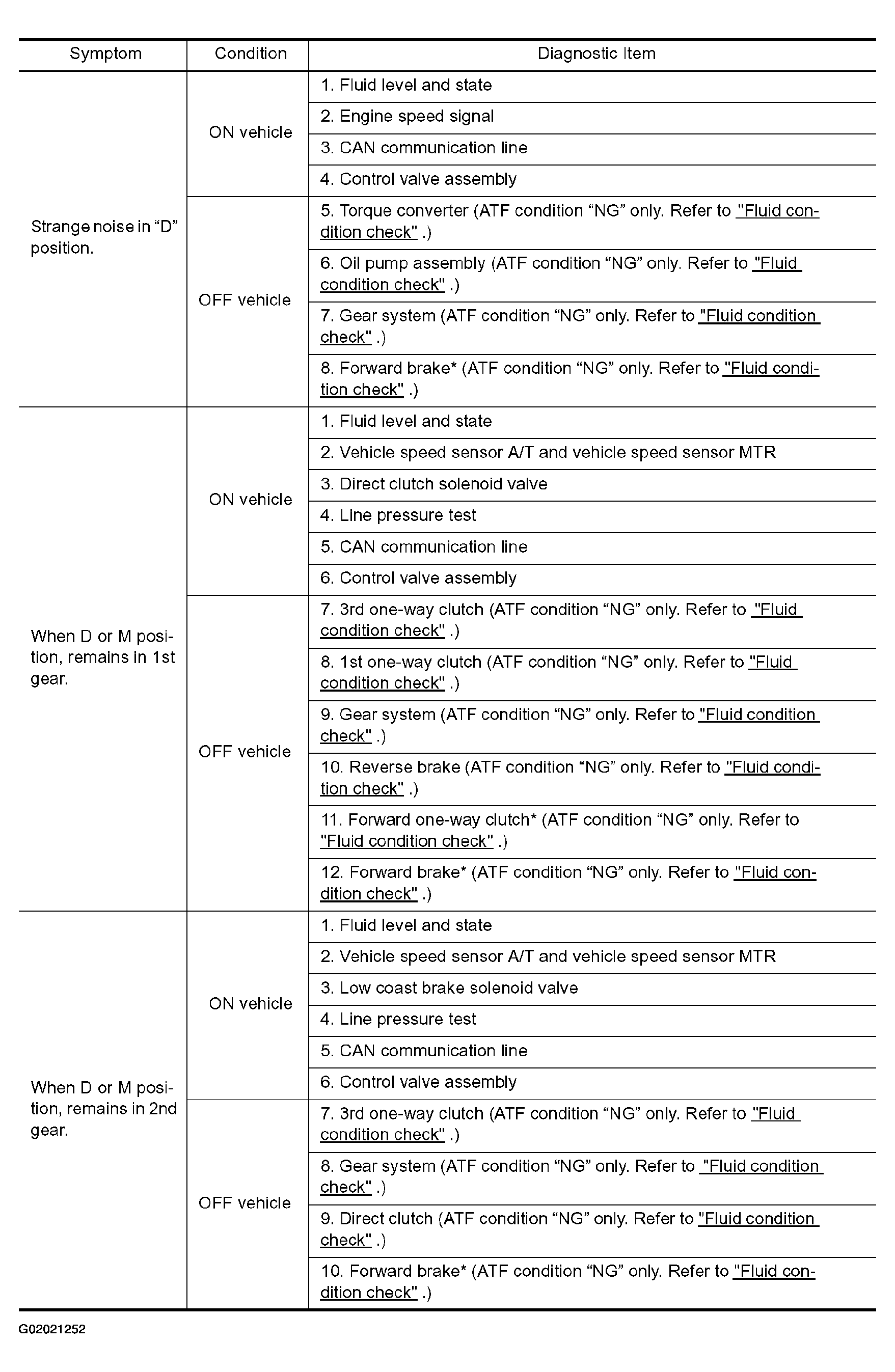

Fig 5: A/T problem symptom chart (5 Of 23)

G02021252

Courtesy of NISSAN MOTOR CO., U.S.A.

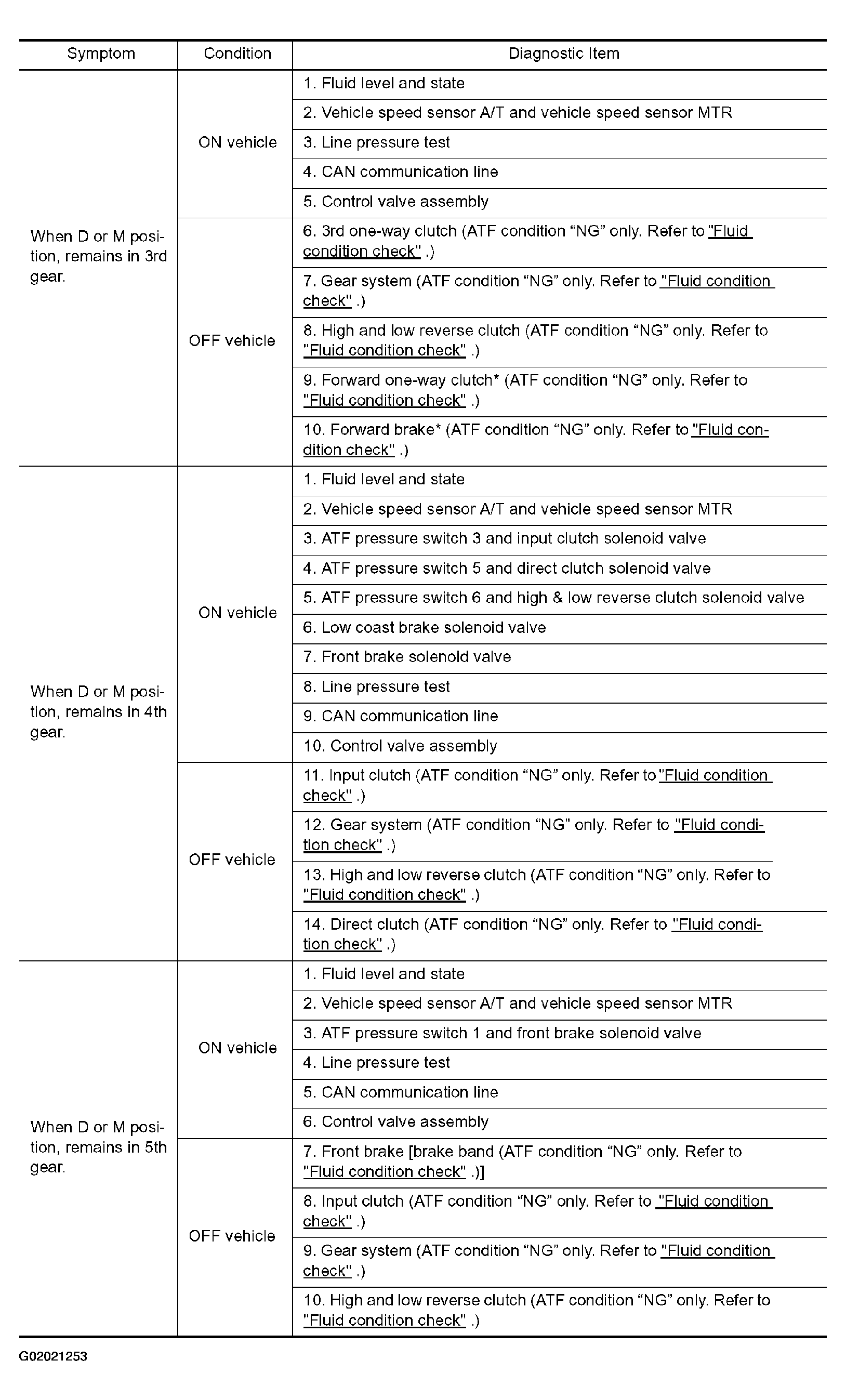

Fig 6: A/T problem symptom chart (6 Of 23)

G02021253

Courtesy of NISSAN MOTOR CO., U.S.A.

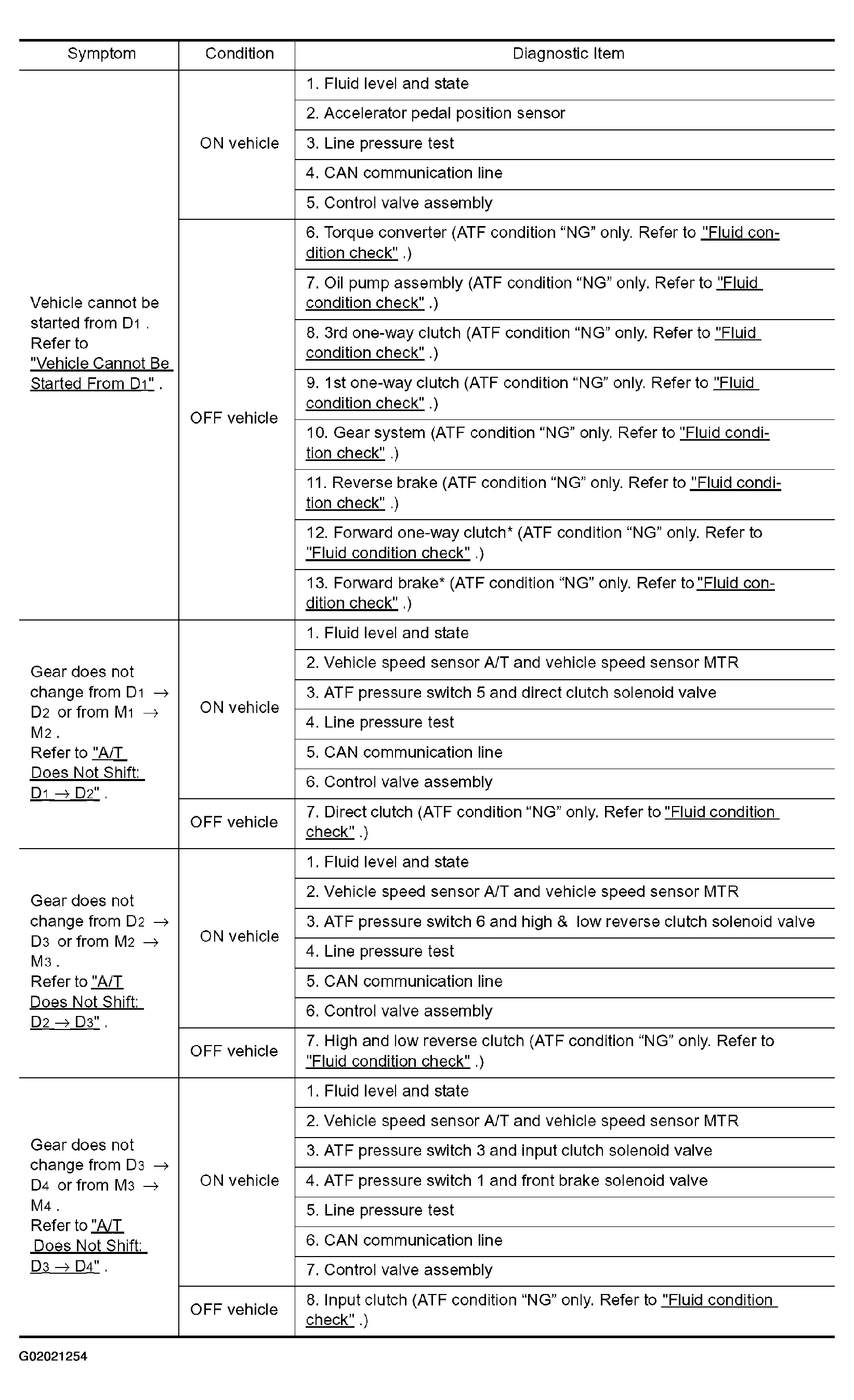

Fig 7: A/T problem symptom chart (7 Of 23)

G02021254

Courtesy of NISSAN MOTOR CO., U.S.A.

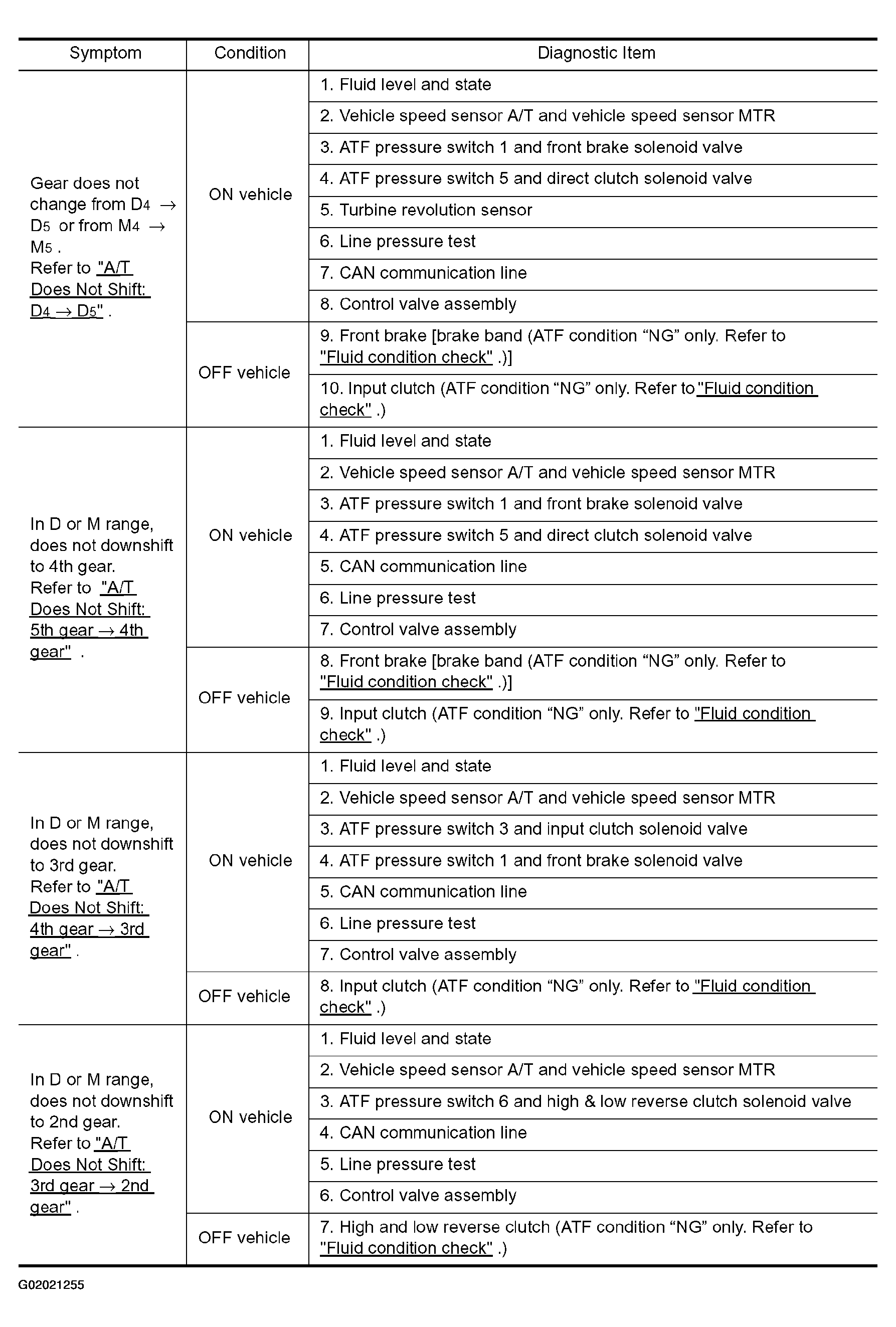

Fig 8: A/T problem symptom chart (8 Of 23)

G02021255

Courtesy of NISSAN MOTOR CO., U.S.A.

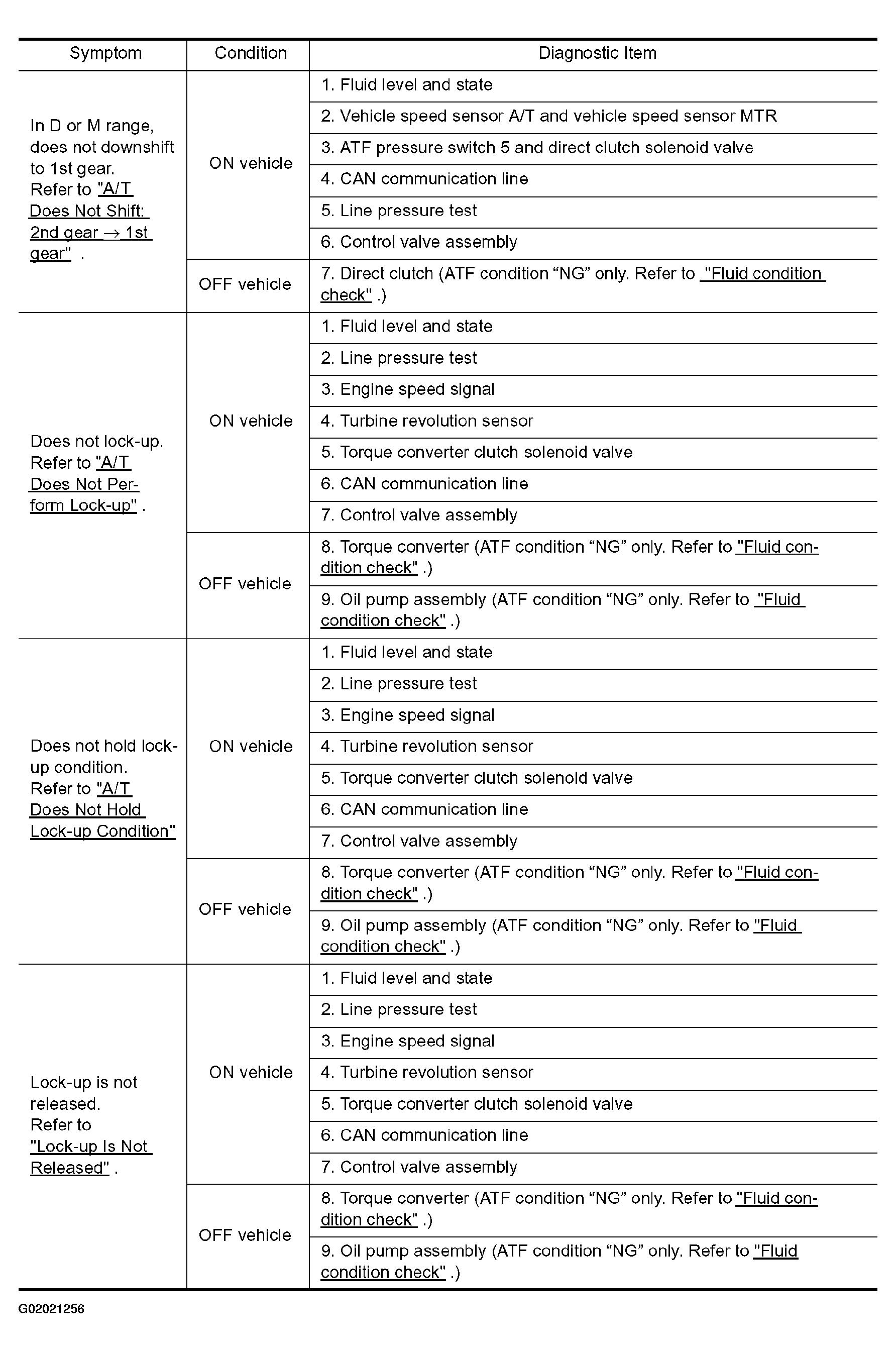

Fig 9: A/T problem symptom chart (9 Of 23)

G02021256

Courtesy of NISSAN MOTOR CO., U.S.A.

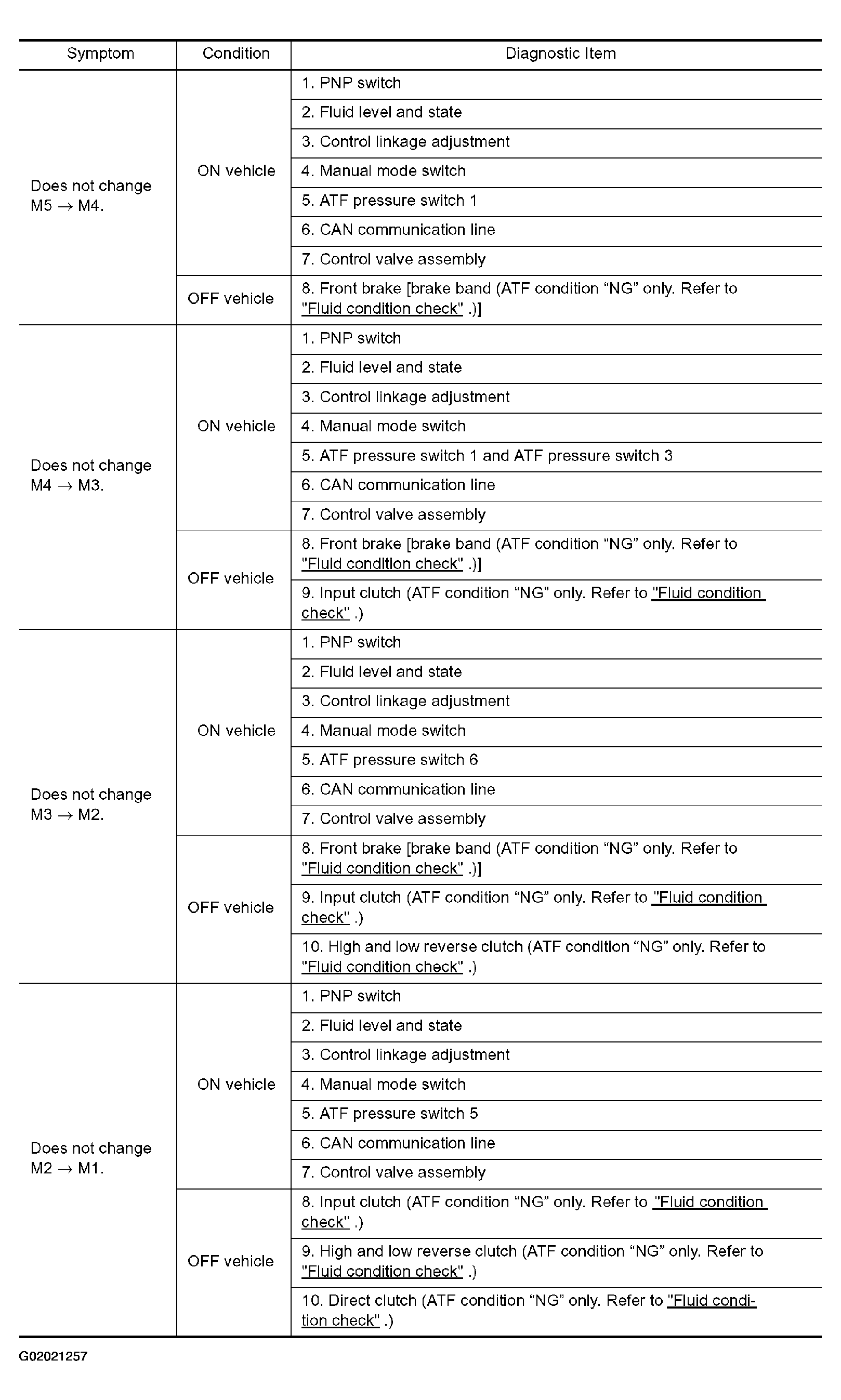

Fig 10: A/T problem symptom chart (10 Of 23)

G02021257

Courtesy of NISSAN MOTOR CO., U.S.A.

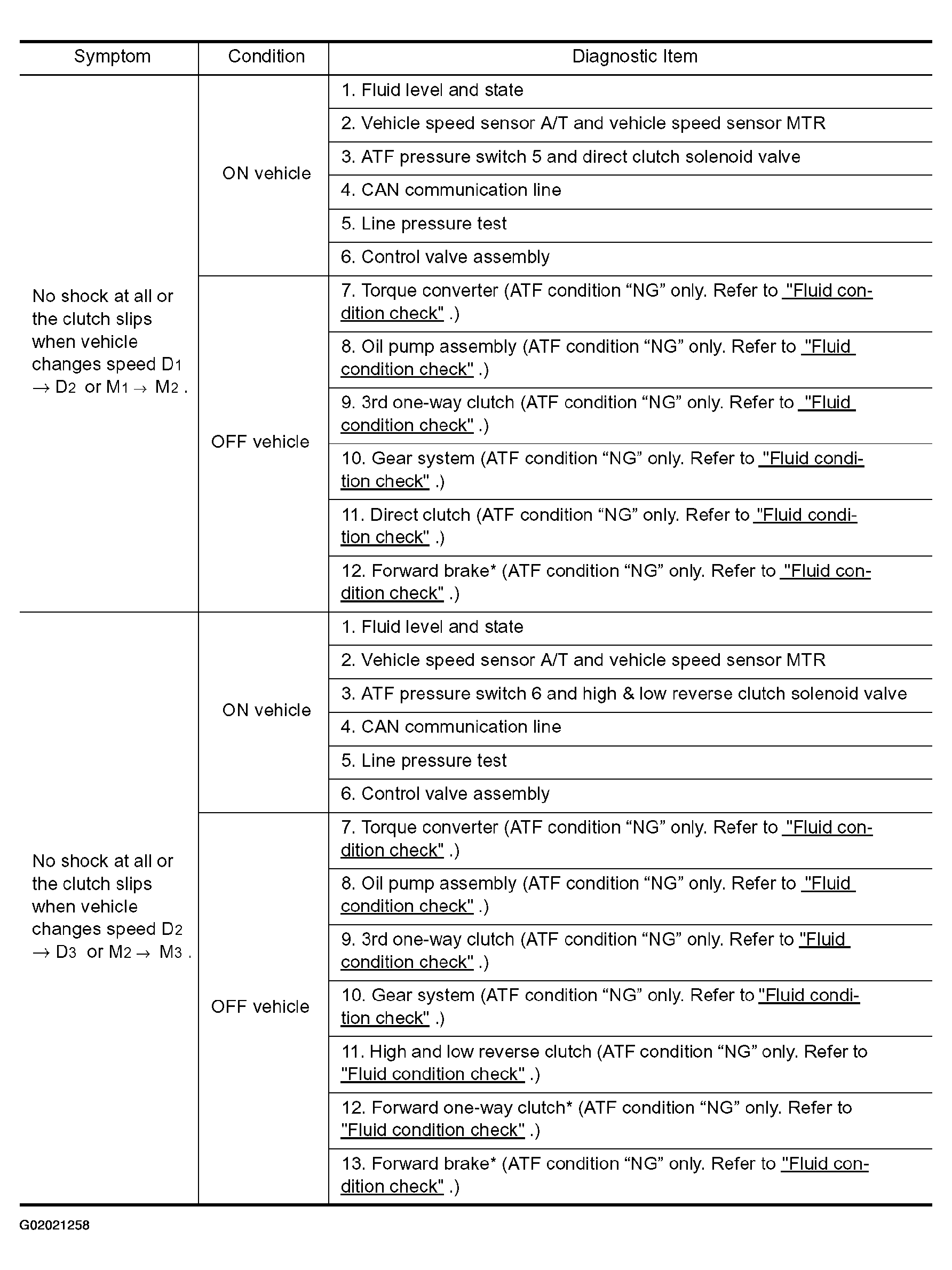

Fig 11: A/T problem symptom chart (11 Of 23)

G02021258

Courtesy of NISSAN MOTOR CO., U.S.A.

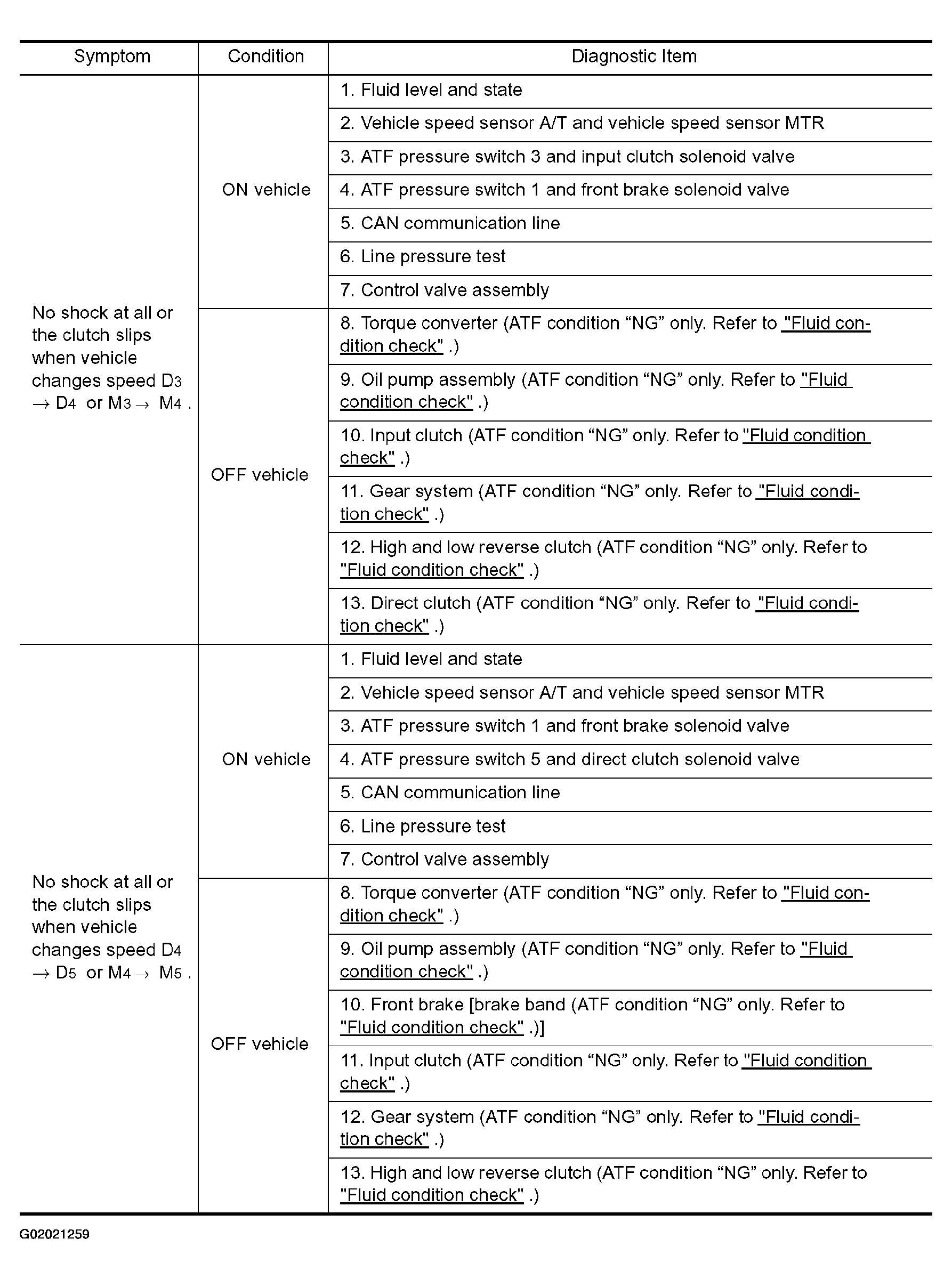

Fig 12: A/T problem symptom chart (12 Of 23)

G02021259

Courtesy of NISSAN MOTOR CO., U.S.A.

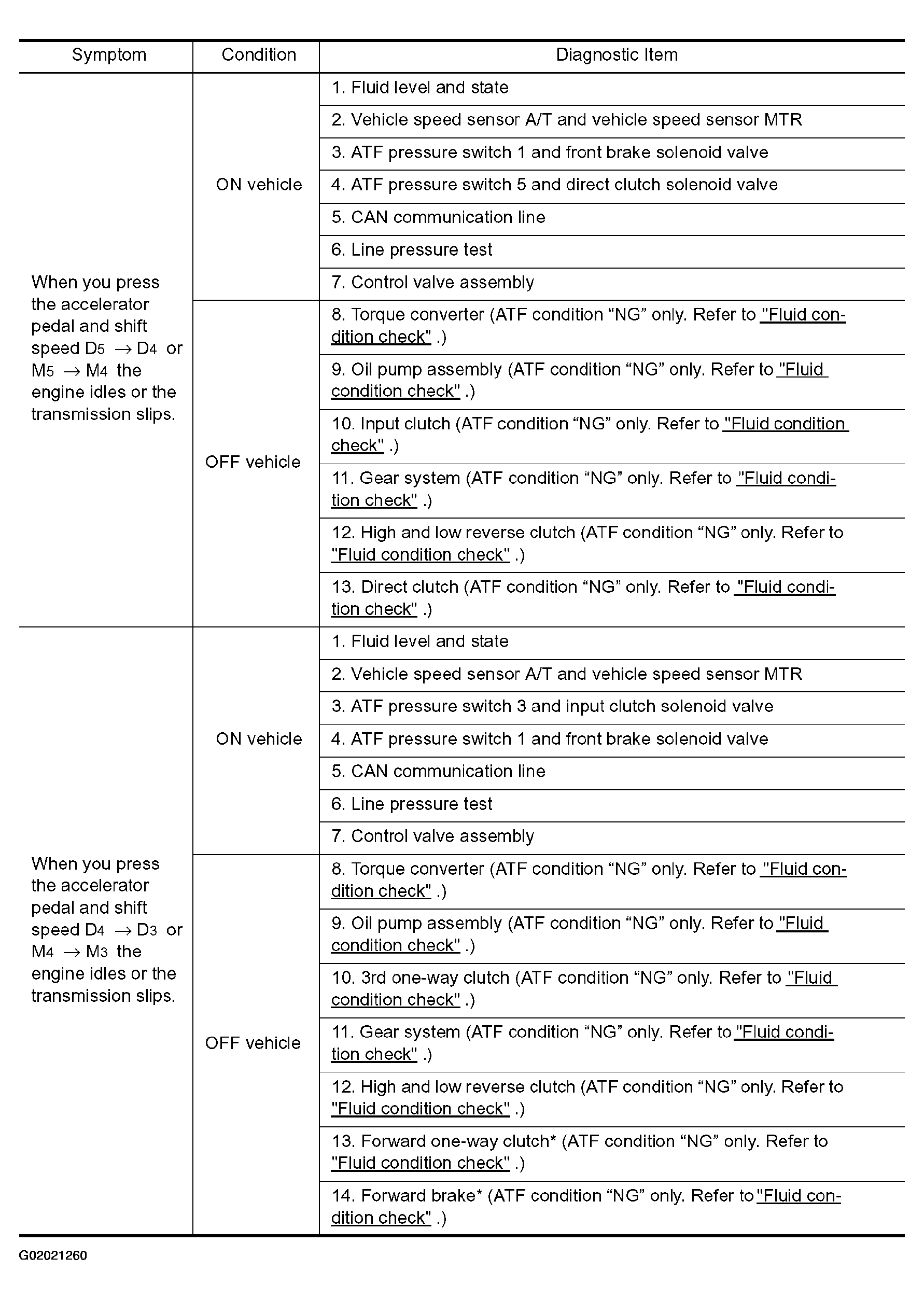

Fig 13: A/T problem symptom chart (13 Of 23)

G02021260

Courtesy of NISSAN MOTOR CO., U.S.A.

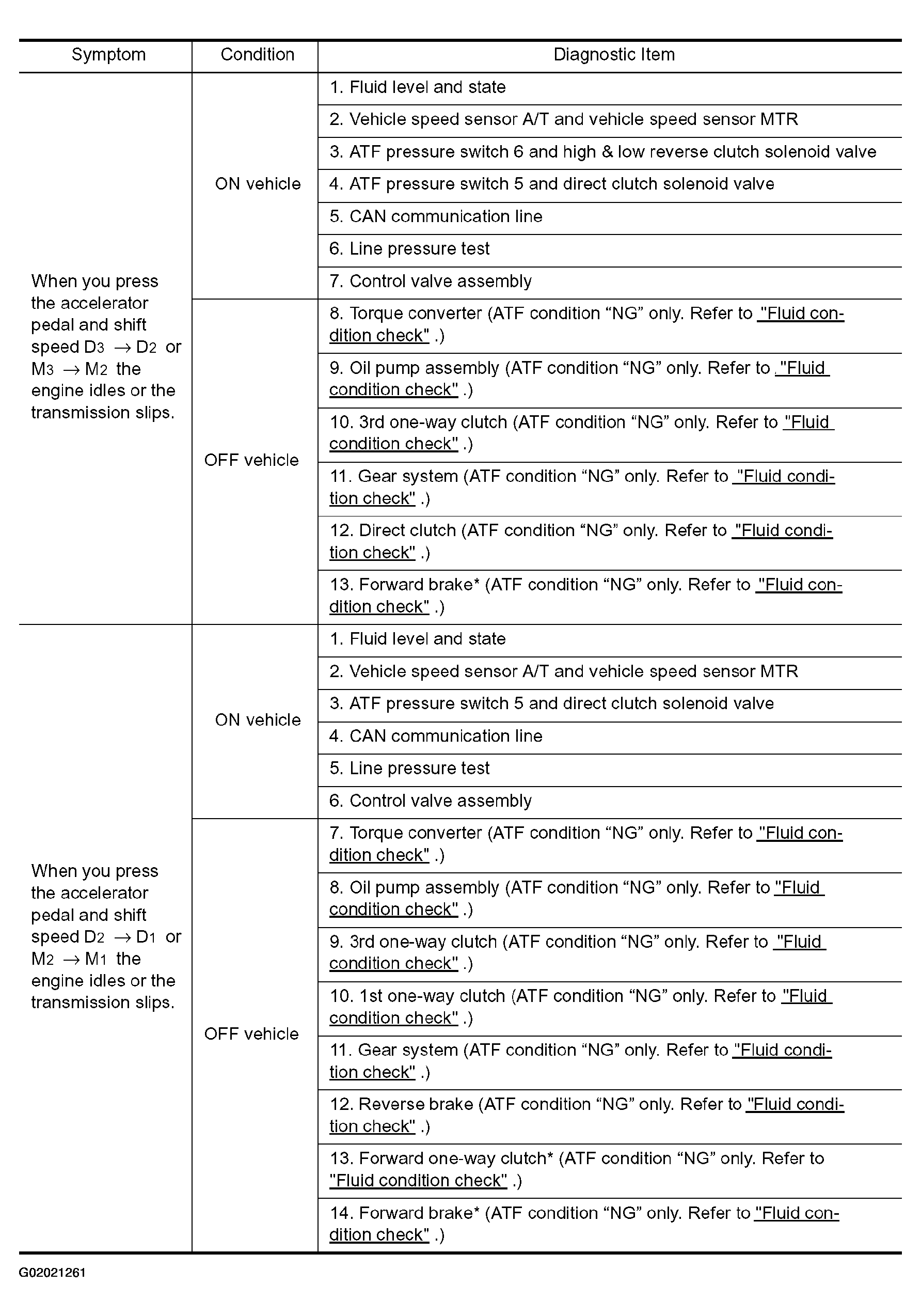

Fig 14: A/T problem symptom chart (14 Of 23)

G02021261

Courtesy of NISSAN MOTOR CO., U.S.A.

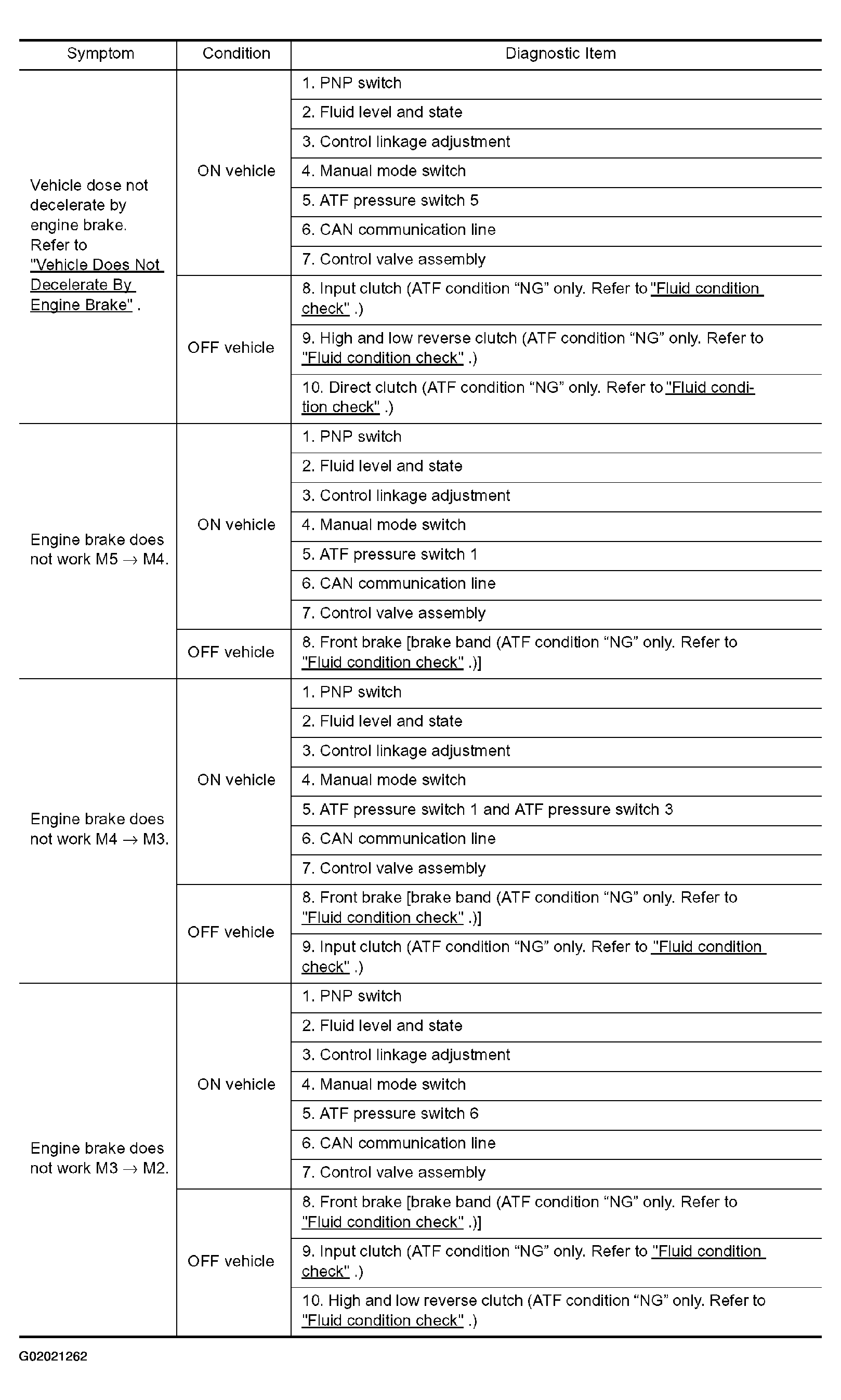

Fig 15: A/T problem symptom chart (15 Of 23)

G02021262

Courtesy of NISSAN MOTOR CO., U.S.A.

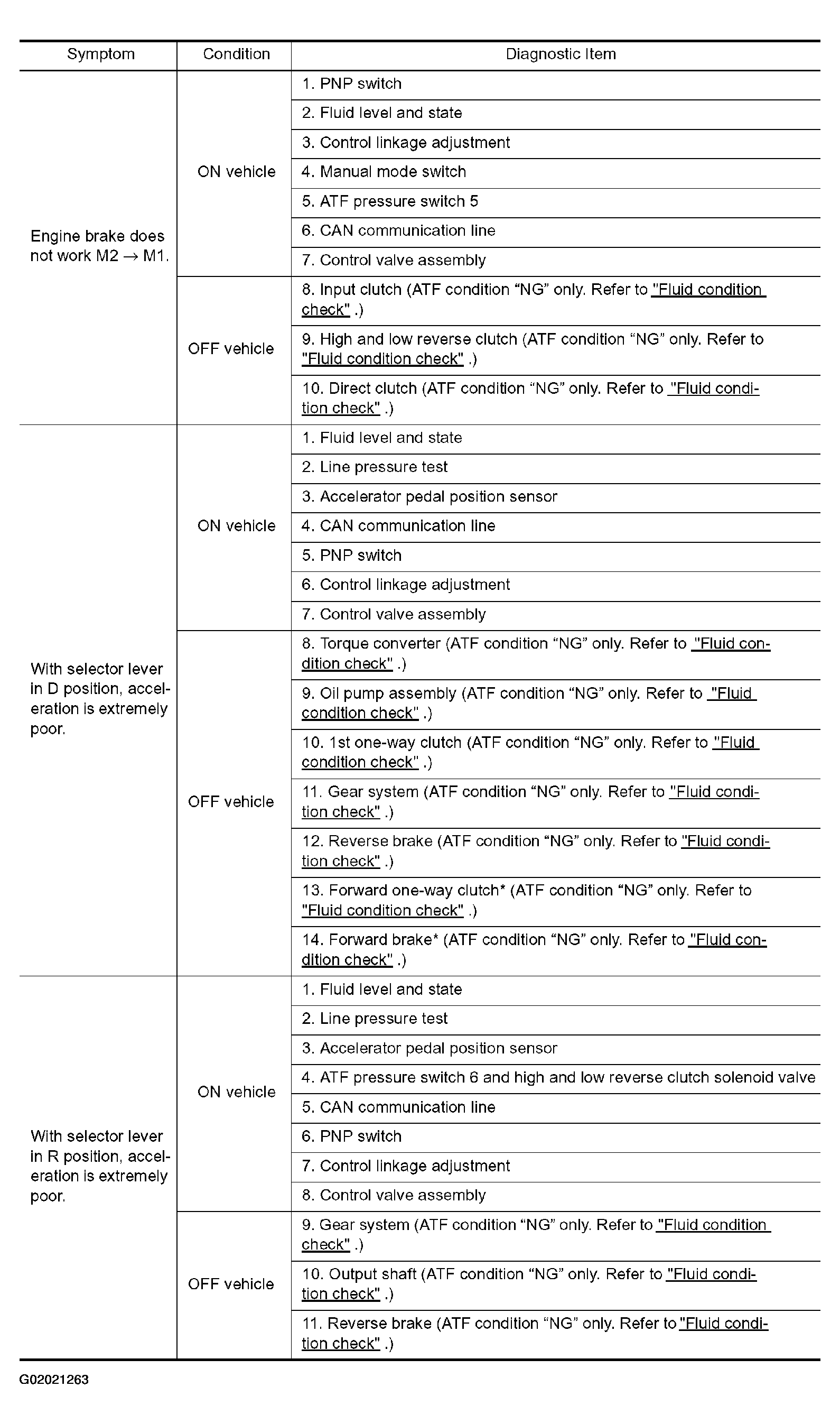

Fig 16: A/T problem symptom chart (16 Of 23)

G02021263

Courtesy of NISSAN MOTOR CO., U.S.A.

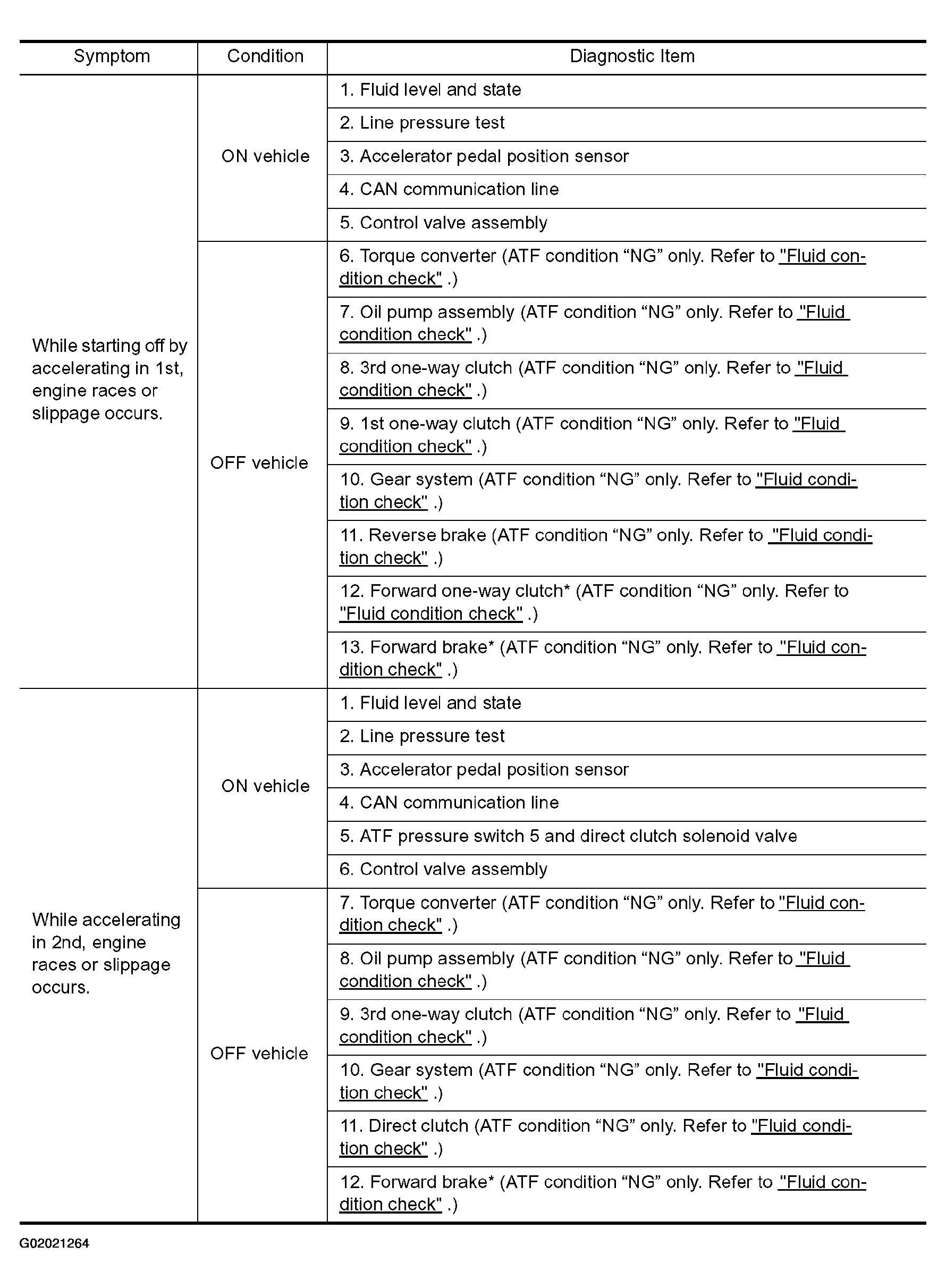

Fig 17: A/T problem symptom chart (17 Of 23)

G02021264

Courtesy of NISSAN MOTOR CO., U.S.A.

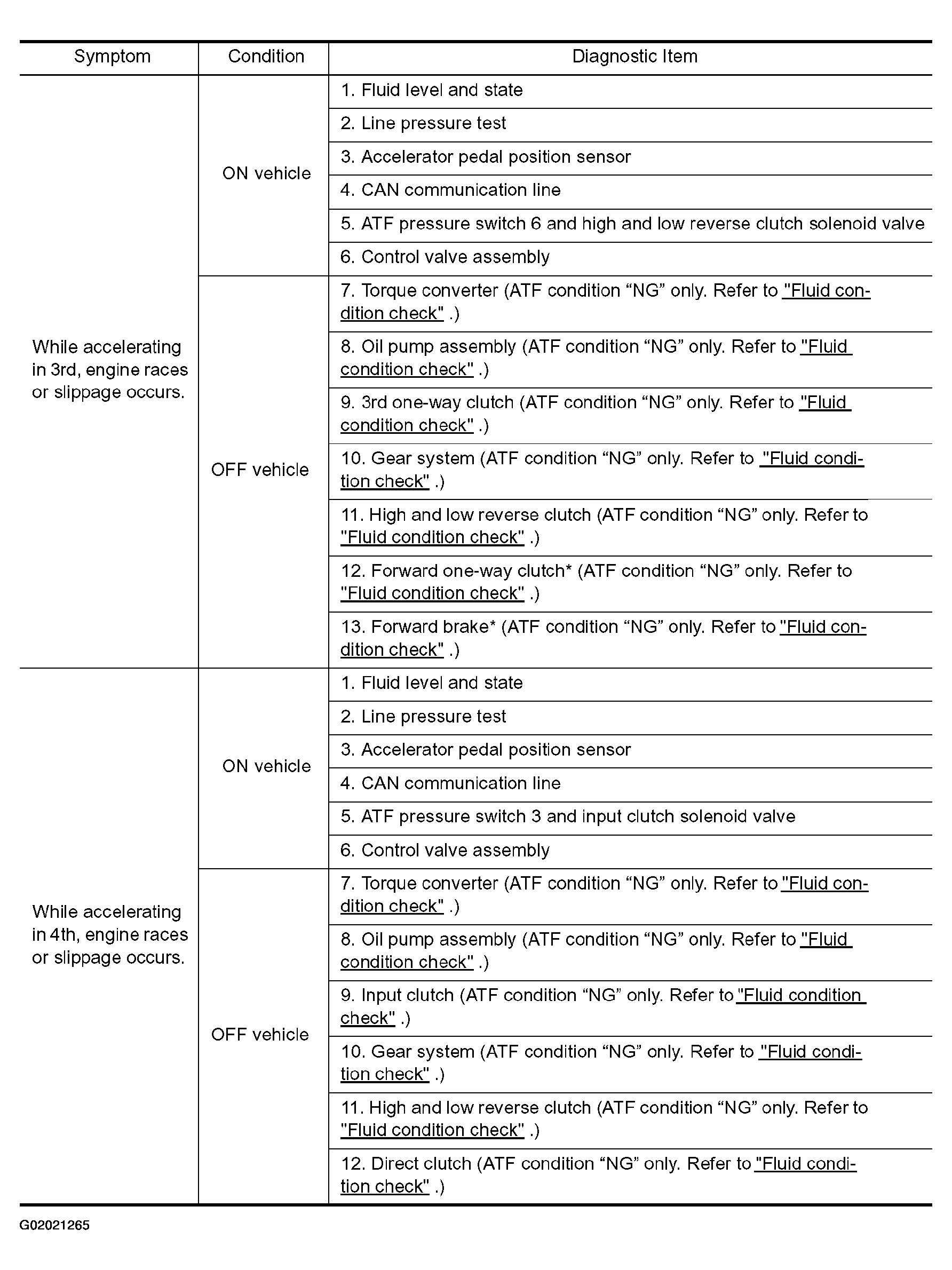

Fig 18: A/T problem symptom chart (18 Of 23)

G02021265

Courtesy of NISSAN MOTOR CO., U.S.A.

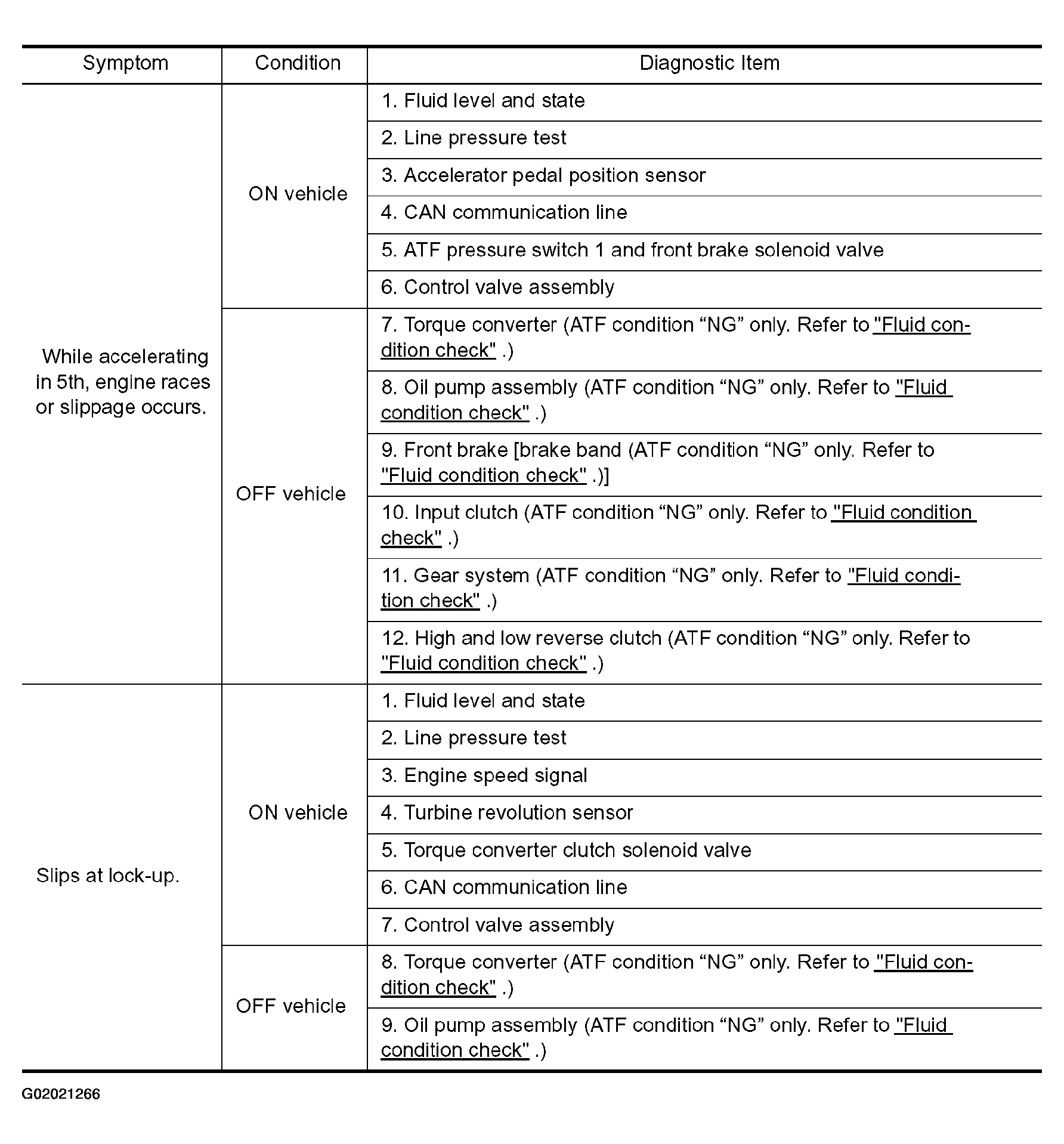

Fig 19: A/T problem symptom chart (19 Of 23)

G02021266

Courtesy of NISSAN MOTOR CO., U.S.A.

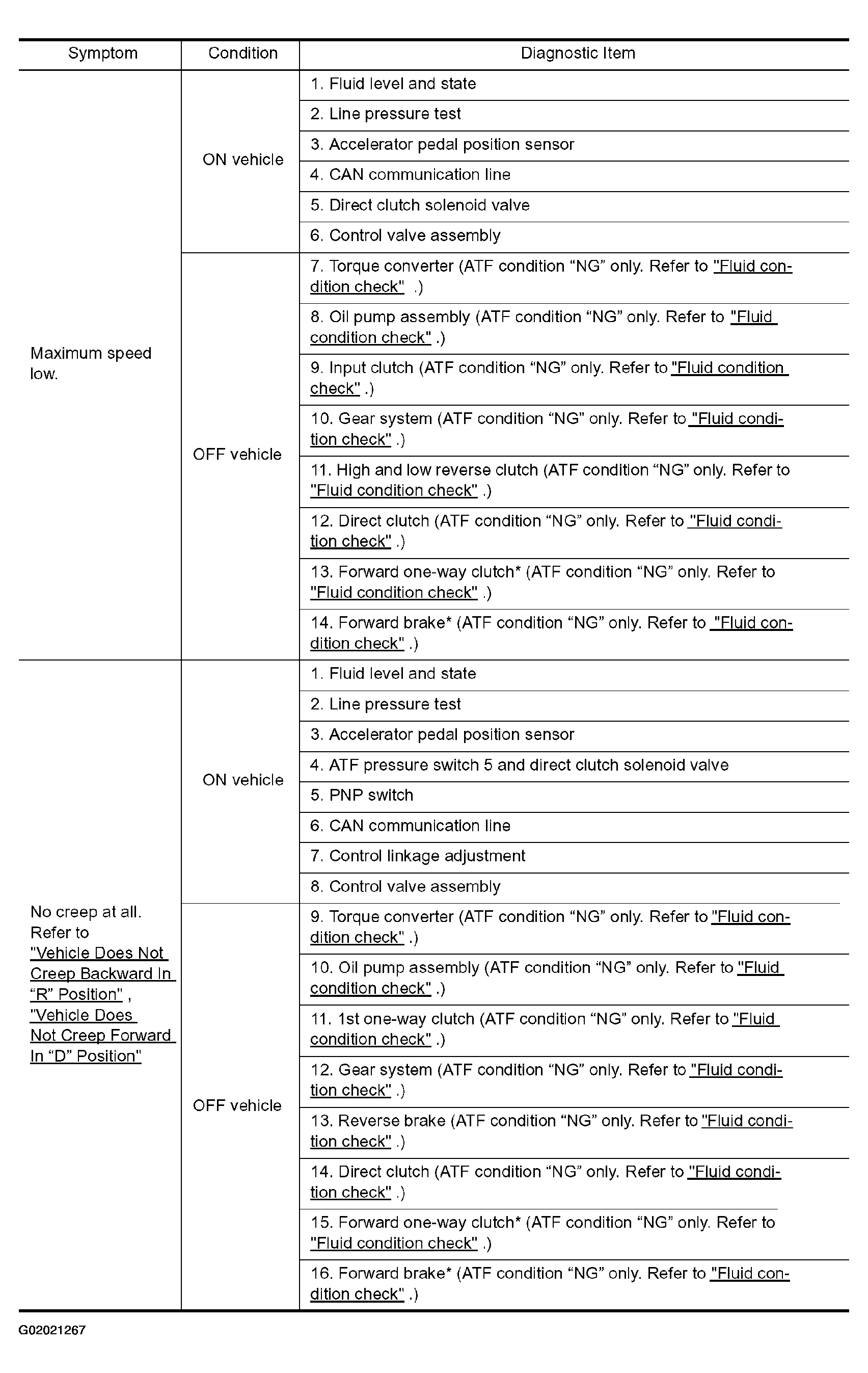

Fig 20: A/T problem symptom chart (20 Of 23)

G02021267

Courtesy of NISSAN MOTOR CO., U.S.A.

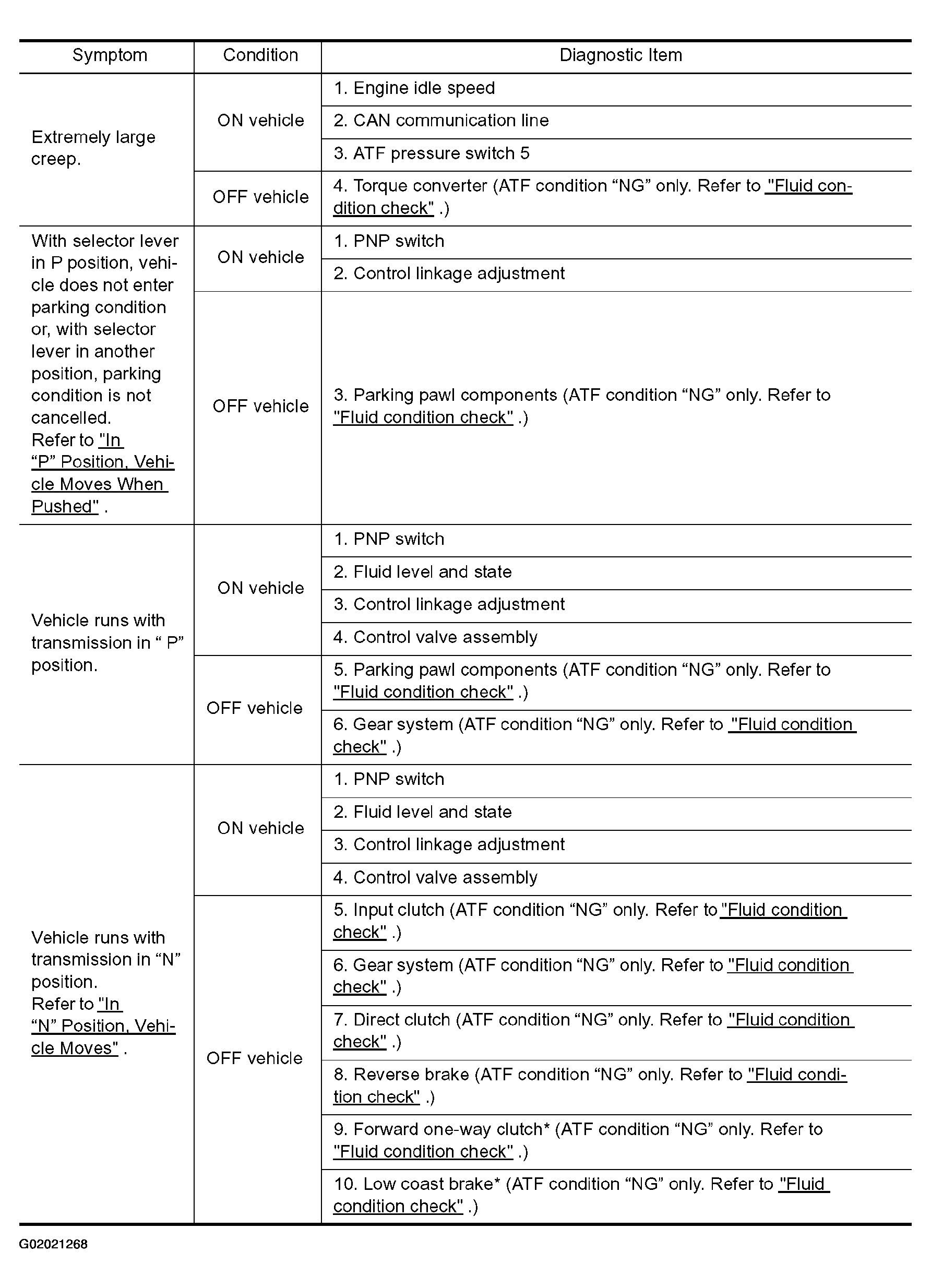

Fig 21: A/T problem symptom chart (21 Of 23)

G02021268

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 22: A/T problem symptom chart (22 Of 23)

G02021269

Courtesy of NISSAN MOTOR CO., U.S.A.

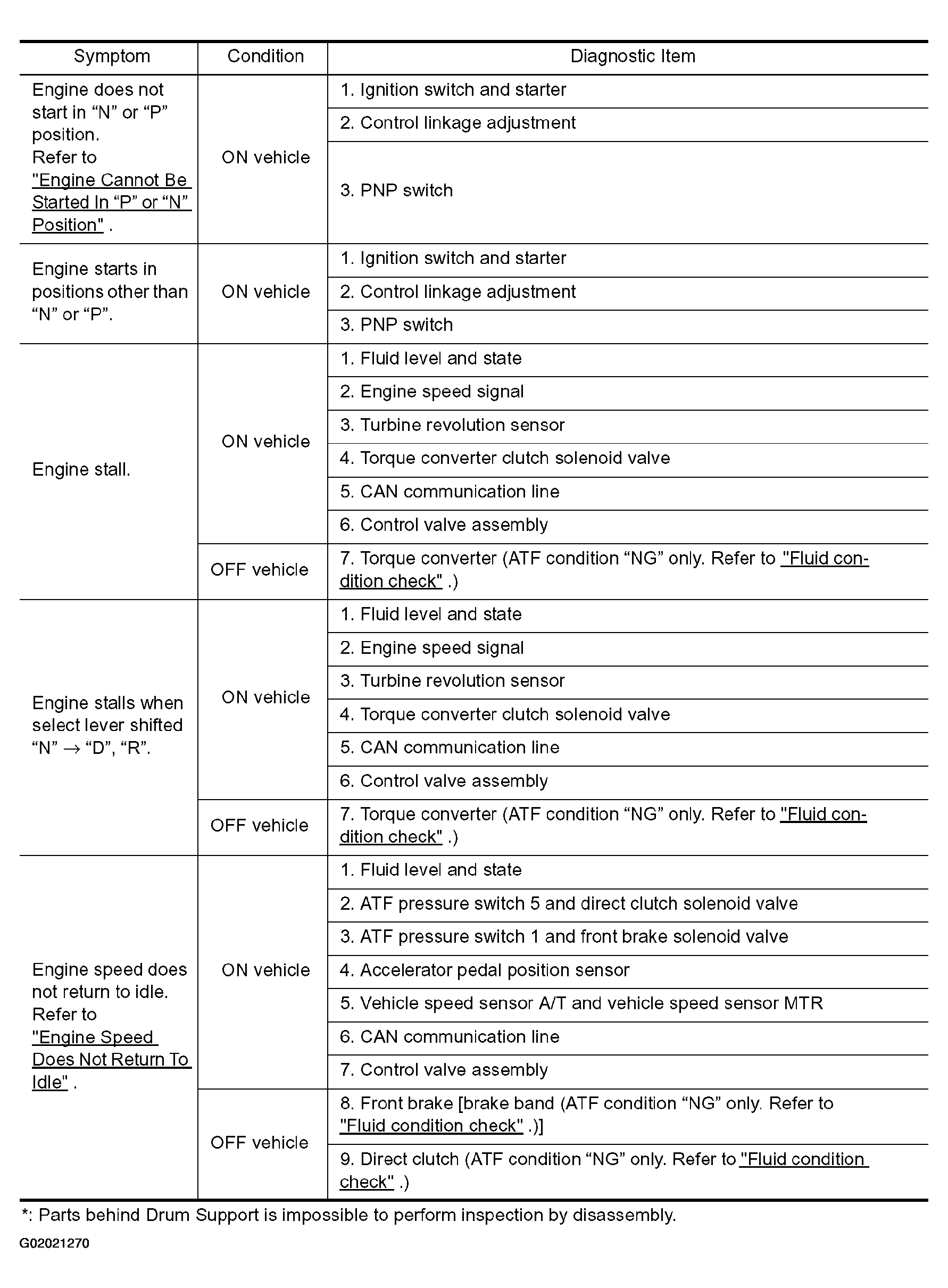

Fig 23: A/T problem symptom chart (23 Of 23)

G02021270

Courtesy of NISSAN MOTOR CO., U.S.A.
