CONSULT-II Setting Procedure

For details, refer to the separate "CONSULT-II Operation Manual".

Turn ignition switch "OFF".
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.

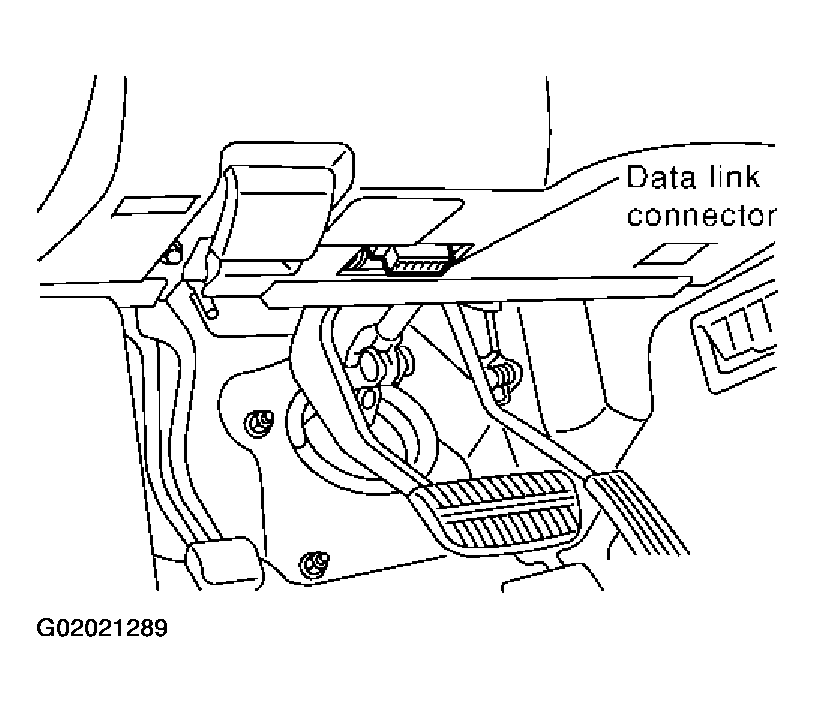

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START".

Fig 2: Consult II Start Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".
If "A/T" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Consult II A/T Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DTC WORK SUPPORT".

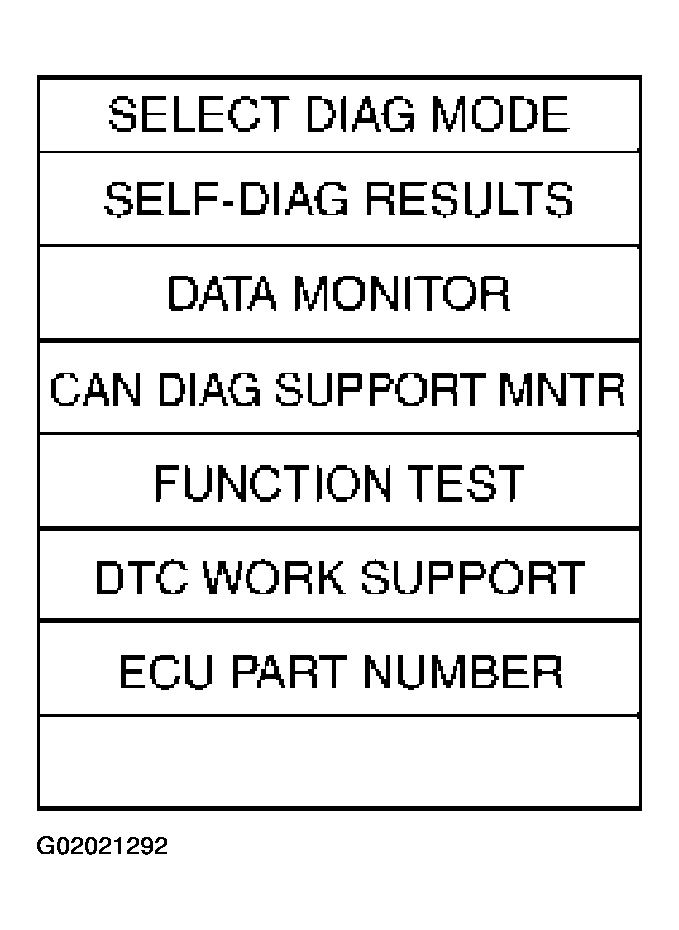

Fig 4: Consult II DTC Work Support Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu.

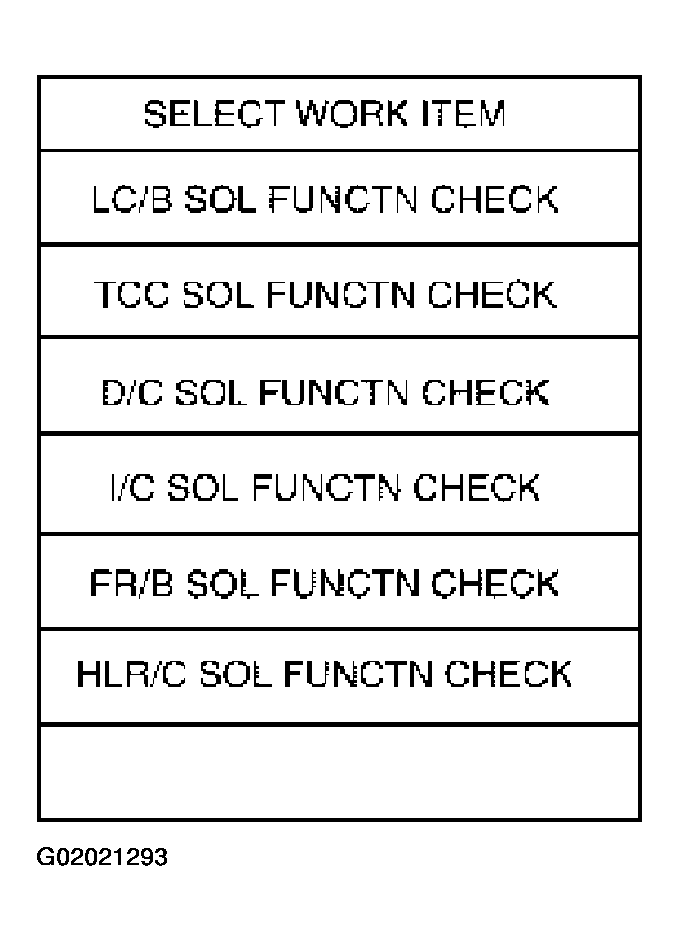

Fig 5: Consult II Select Work Item Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

Fig 6: LC/B SOL function check display (1 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

Fig 7: LC/B SOL function check display (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

  Fig 8: LC/B SOL function check display (3 Of 6)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure is ended.

Fig 9: LC/B SOL function check display (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

Fig 10: LC/B SOL function check display (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: LC/B SOL function check display (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

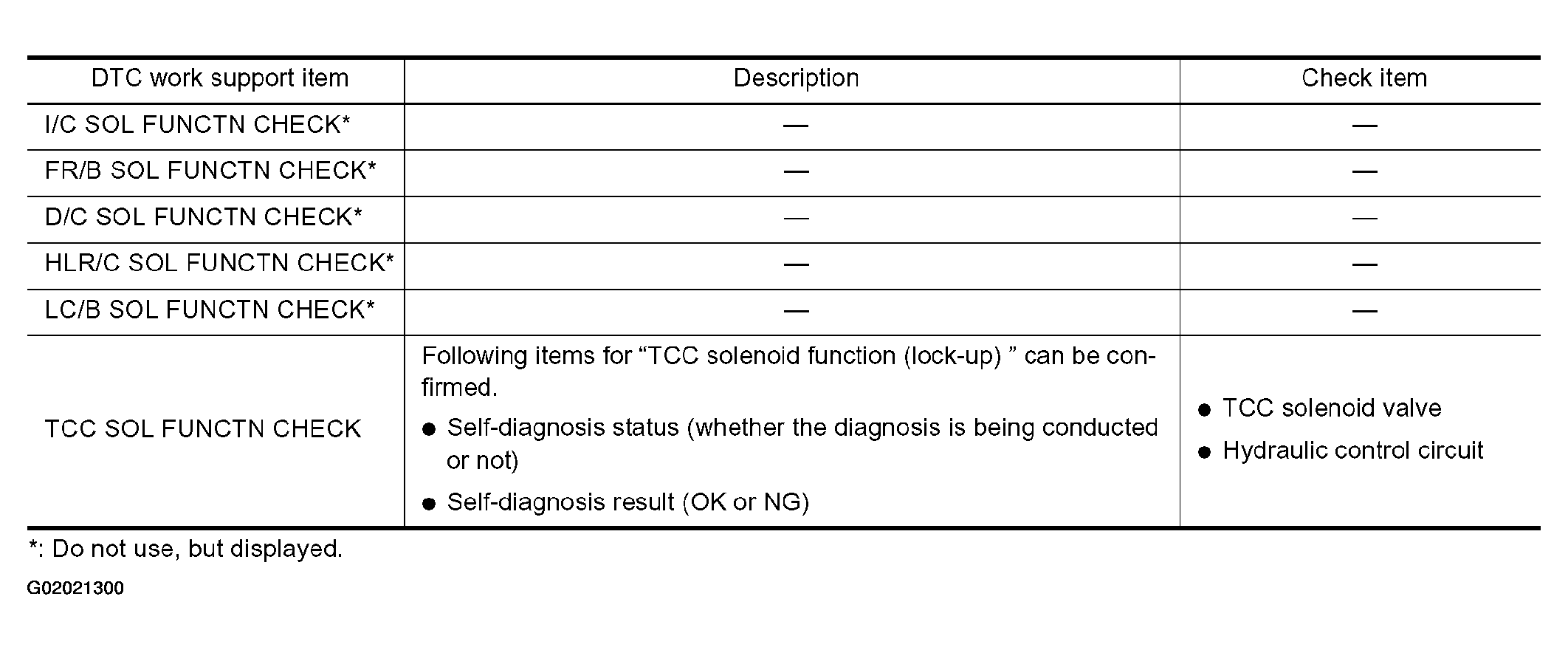

Fig 12: DTC Work Support Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
