Diagnostic Procedure

With CONSULT-II

1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "ECU INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Read out ON/OFF switching action of the "MANU MODE SW", "NON M-MODE SW", "UP SW LEVER", "DOWN SW LEVER".

OK or NG

OK >> GO TO  4.

NG >> GO TO 3.

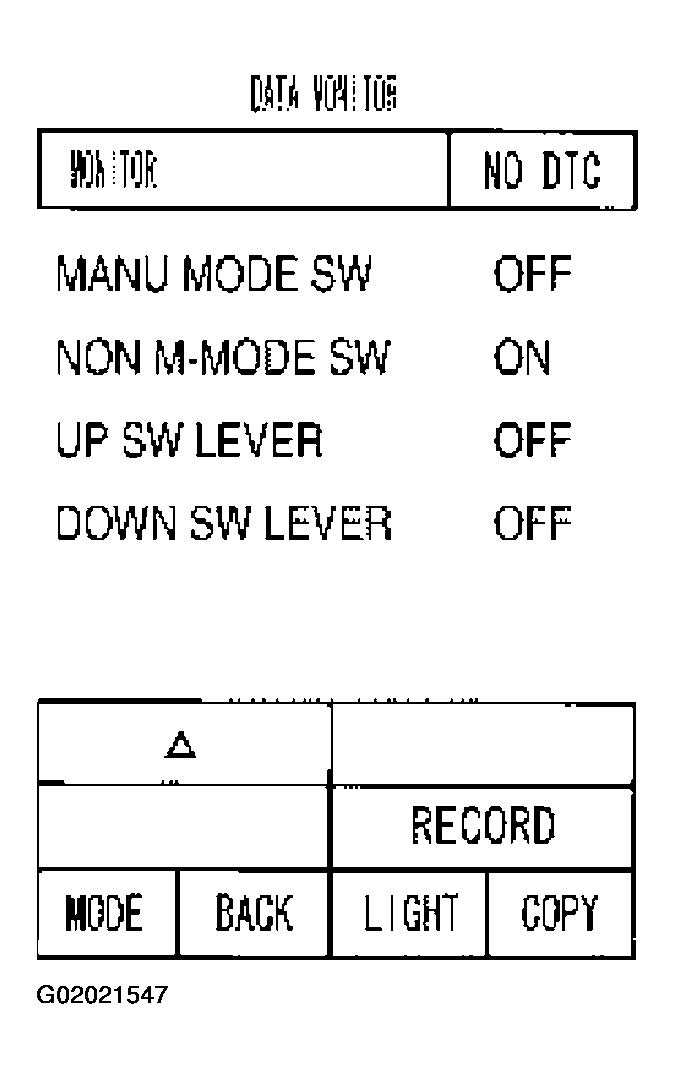

Fig 1: Checking Manual Mode Switch Circuit (With CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Drive vehicle in the manual mode, and confirm that the actual gear position and the meter's indication of the position mutually coincide when the selector lever is shifted to the "+ (up)" or "- (down)" side (1st => 5th gear).

OK or NG

OK >> GO TO  4.

NG >> GO TO 3.

Check the following items.

• Power supply. Refer to "COMBINATION METERS ".
• Manual mode switch. Refer to "COMPONENT INSPECTION ".
• Pin terminals for damage or loose connection with harness connector.
• Open circuit or short to ground or short to power in harness or connector for A/T device (manual mode switch).

OK or NG

OK >> GO TO 4.

NG >> Repair or replace damaged parts.

Perform DTC confirmation procedure. Refer to "DTC CONFIRMATION PROCEDURE ".

OK or NG

OK >> INSPECTION END

NG >> Replace the control device assembly.
