Diagnostic Procedure

With CONSULT-II

1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "SELF-DIAG RESULTS" mode for "ENGINE" with CONSULT-II. Refer to "CONSULT-II FUNCTIONS ".

OK or NG

OK >> GO TO 2.

NG >> Check the DTC detected item. Go to "CONSULT-II FUNCTIONS ".

• If CAN communication line is detected, go to "DTC U1000: CAN COMMUNICATION LINE ".
  Fig 1: Checking DTC With ECM (Consult II) Display (1 Of 2)

  Courtesy of NISSAN MOTOR CO., U.S.A.

With CONSULT-II

1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "ECU INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Depress accelerator pedal and read out the value of "ACCLEPOS" and "THROTTLE POSI".

   Check engine speed changes according to throttle position.

4. Select "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II. Refer to "CONSULT-II ".

OK or NG

OK >> GO TO 3.

NG >> Repair or replace damaged parts.

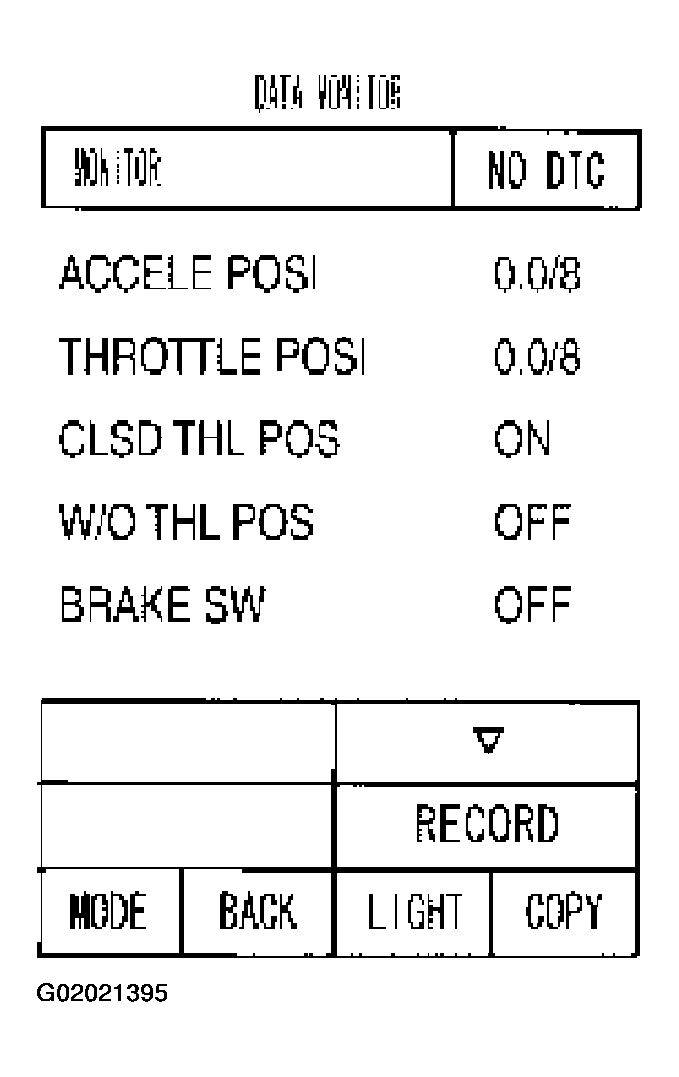

Fig 2: Checking DTC With ECM (Consult II) Display (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Perform "DTC Confirmation Procedure". Refer to "DTC CONFIRMATION PROCEDURE ".

OK >> INSPECTION END

NG >> GO TO 4.

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK >> INSPECTION END

NG >> Repair or replace damaged parts.
