Infiniti
>>
2003
>>
M45
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Hydraulic Line
>>
Removal and Installation
Removal and Installation

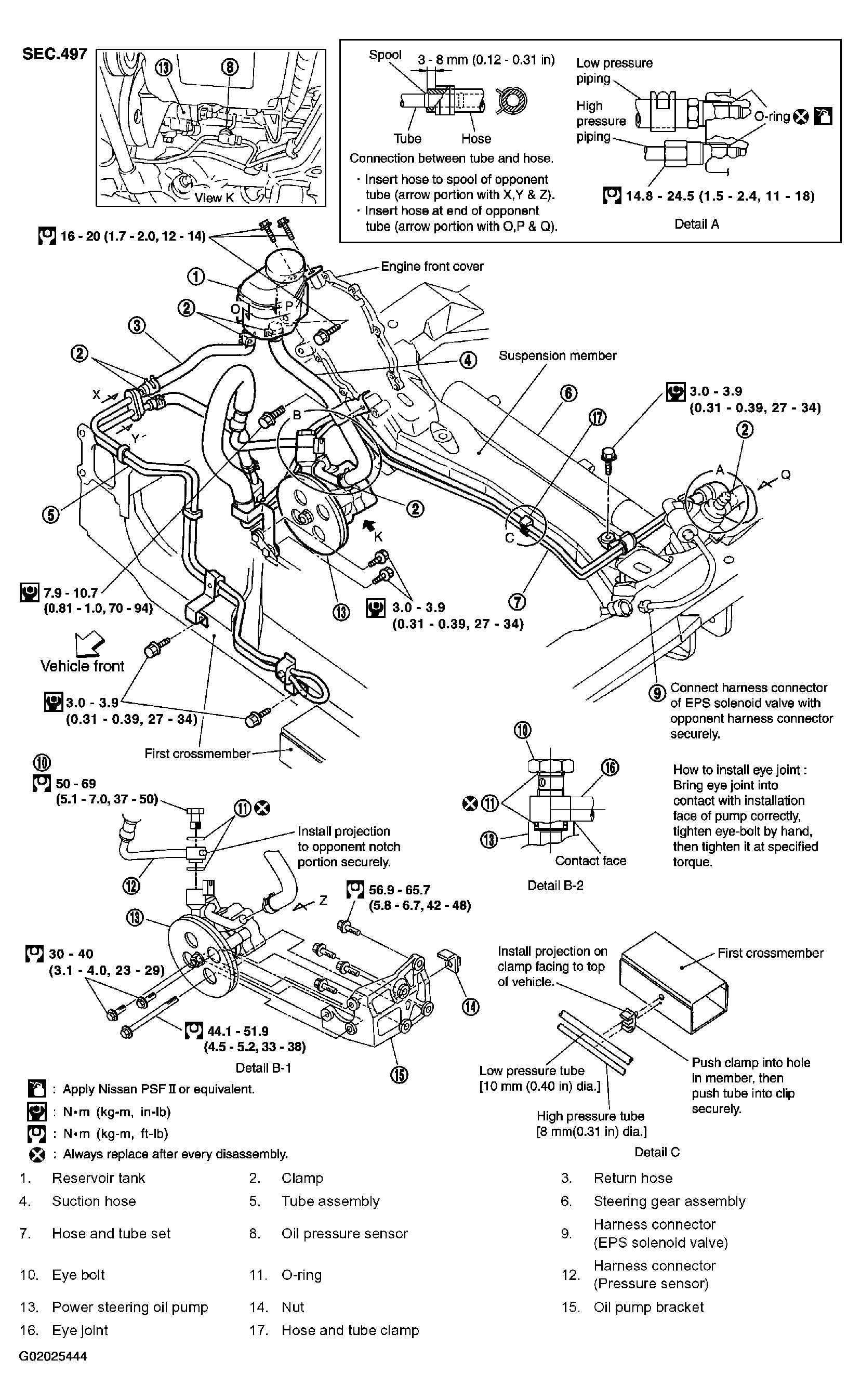

Fig 1: Exploded View Of Hydraulic Line Components And Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
