Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove spiral cable assembly. Refer to SPIRAL CABLE .
  2. Remove steering angle sensor from spiral cable assembly.

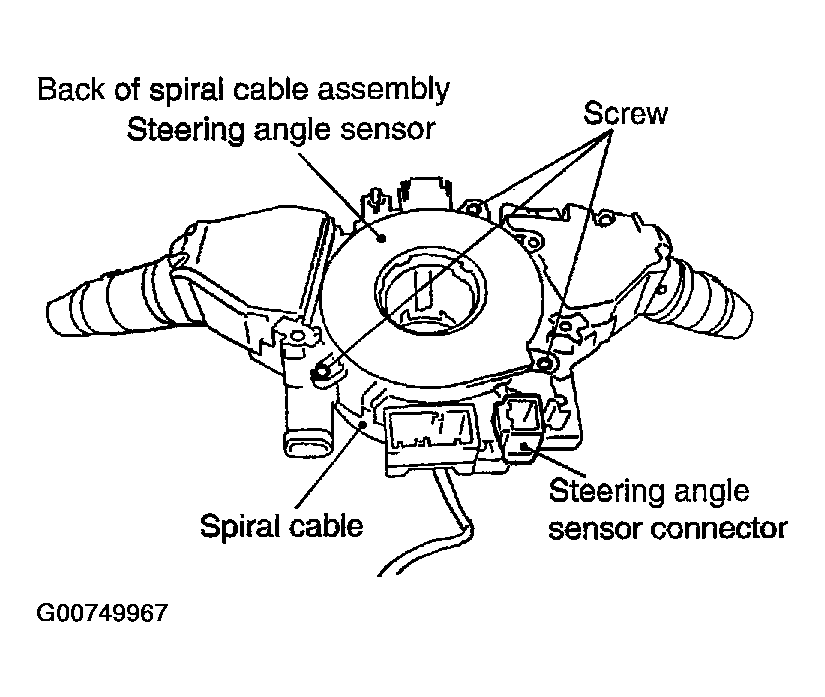

    Fig 1: Removing & Installing Spiral Cable
    G00749967Courtesy of NISSAN MOTOR CO., U.S.A.
