Overall Function Check & Diagnostic Procedure

NOTE: For diagnostic procedure of closed loop control, use diagnostic procedure for DTC P0133 and P0153. See DTC P0133 & P0153: HEATED OXYGEN SENSOR 1  .

For overall function check, see Fig 1 .

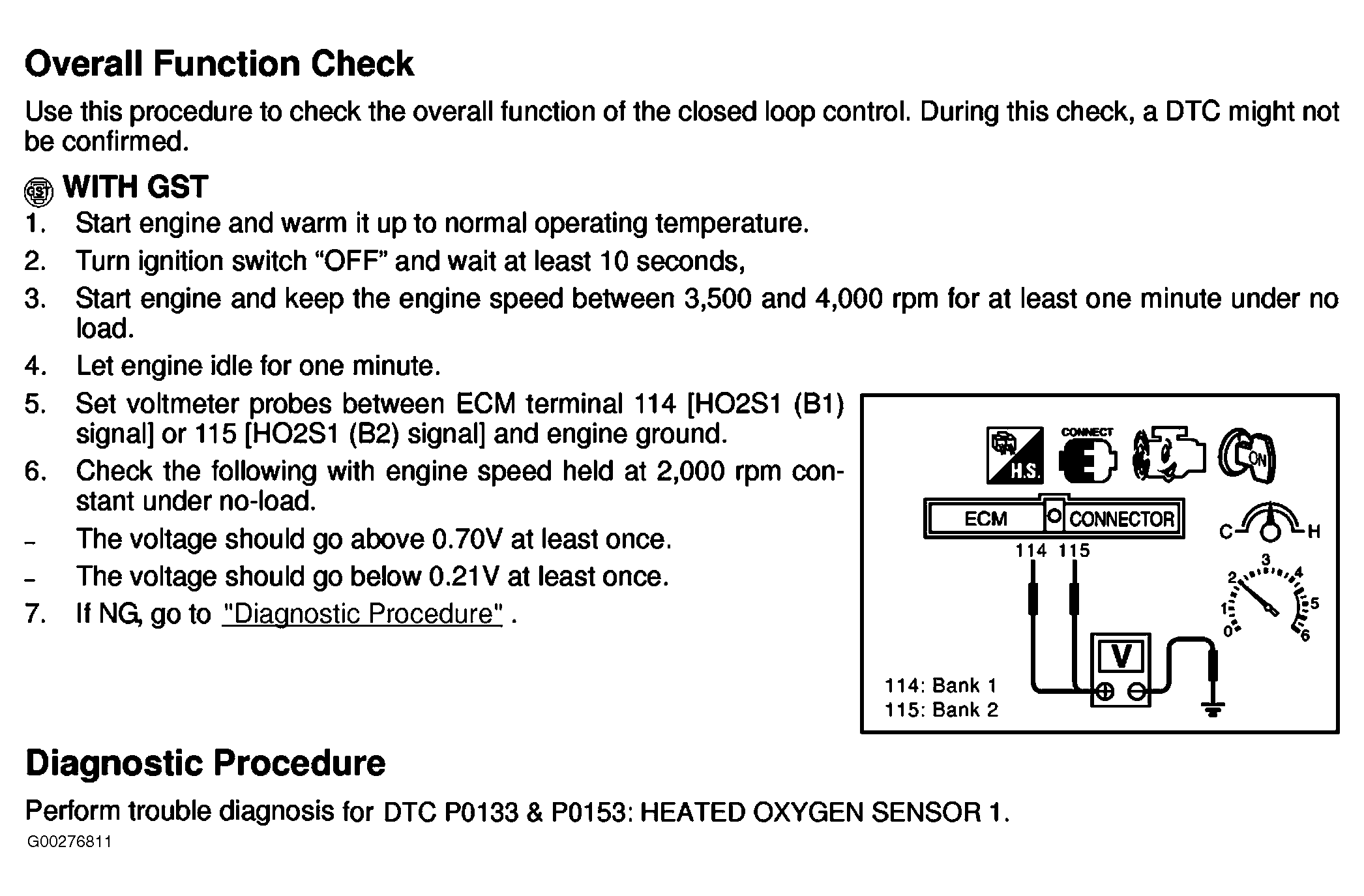

Fig 1: Overall Function Check & Diagnostic Procedure
G00276811Courtesy of NISSAN MOTOR CO., U.S.A.
