DTC P1124: Throttle Control Motor Relay (Short) Or P1126: Throttle Control Motor Relay (Open)
>>
Component Inspection
Component Inspection
For component inspection, see

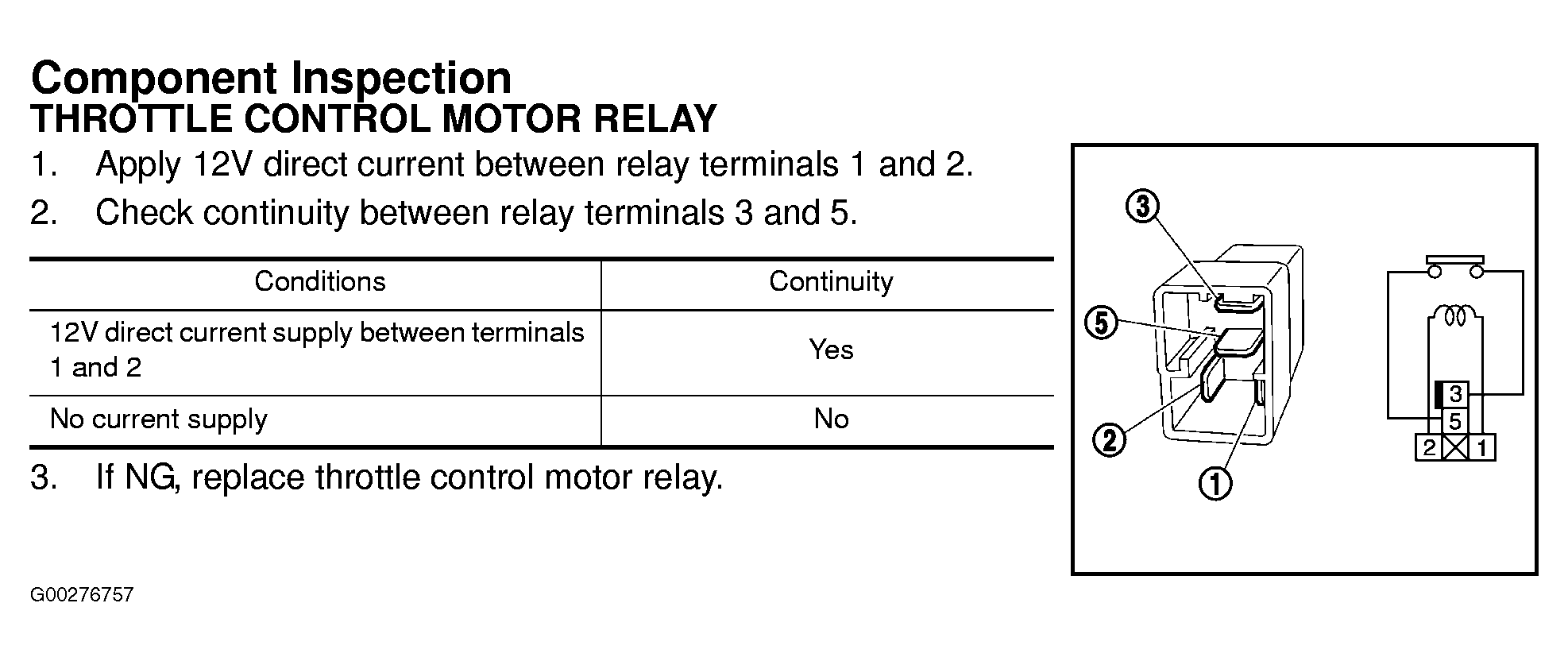

Fig 1
.
Fig 1: Component Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
