Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 3 .

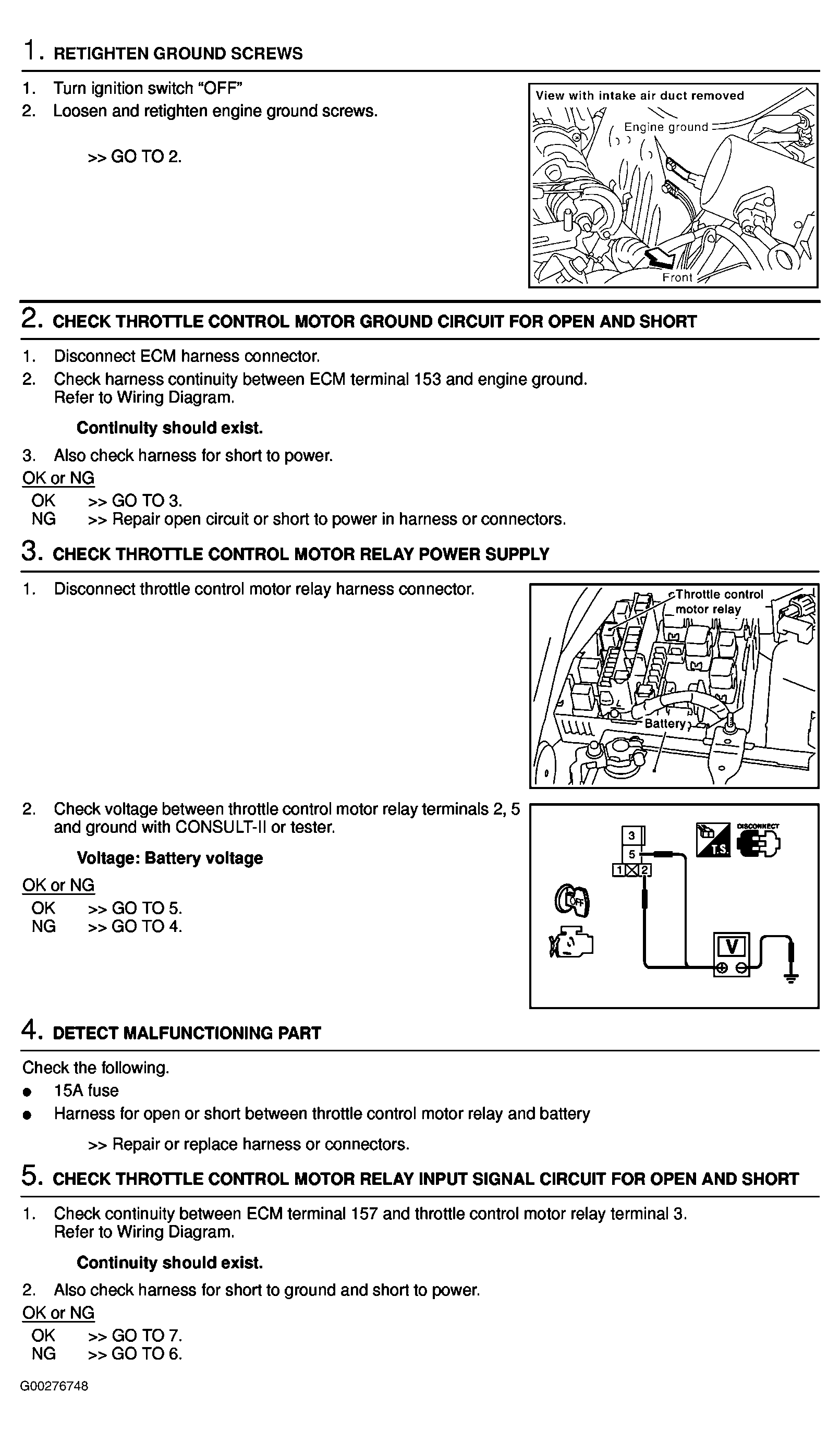

Fig 1: Diagnostic Procedure (Steps 1-5)
G00276748Courtesy of NISSAN MOTOR CO., U.S.A.

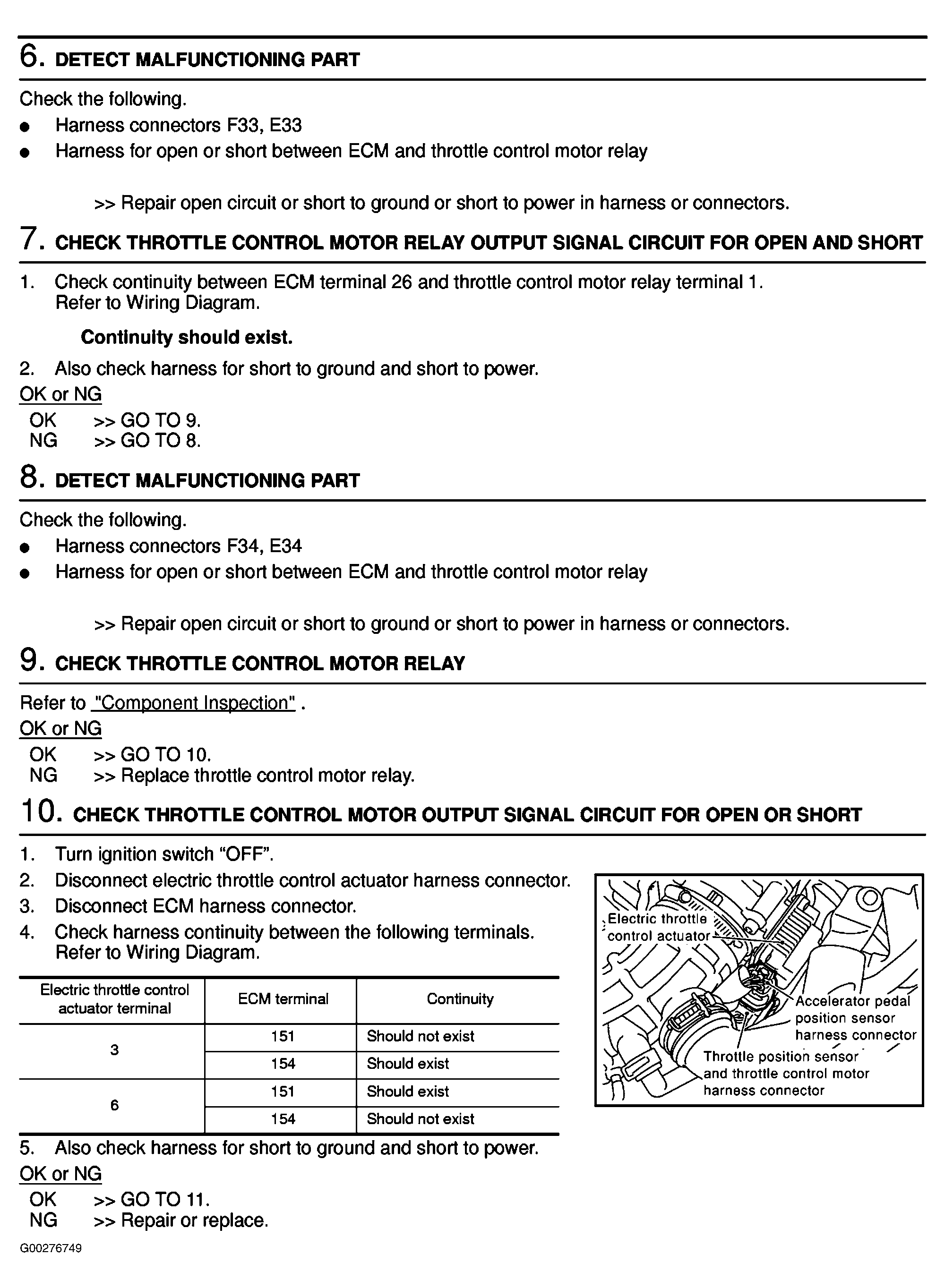

Fig 2: Diagnostic Procedure (Steps 6-10)
G00276749Courtesy of NISSAN MOTOR CO., U.S.A.

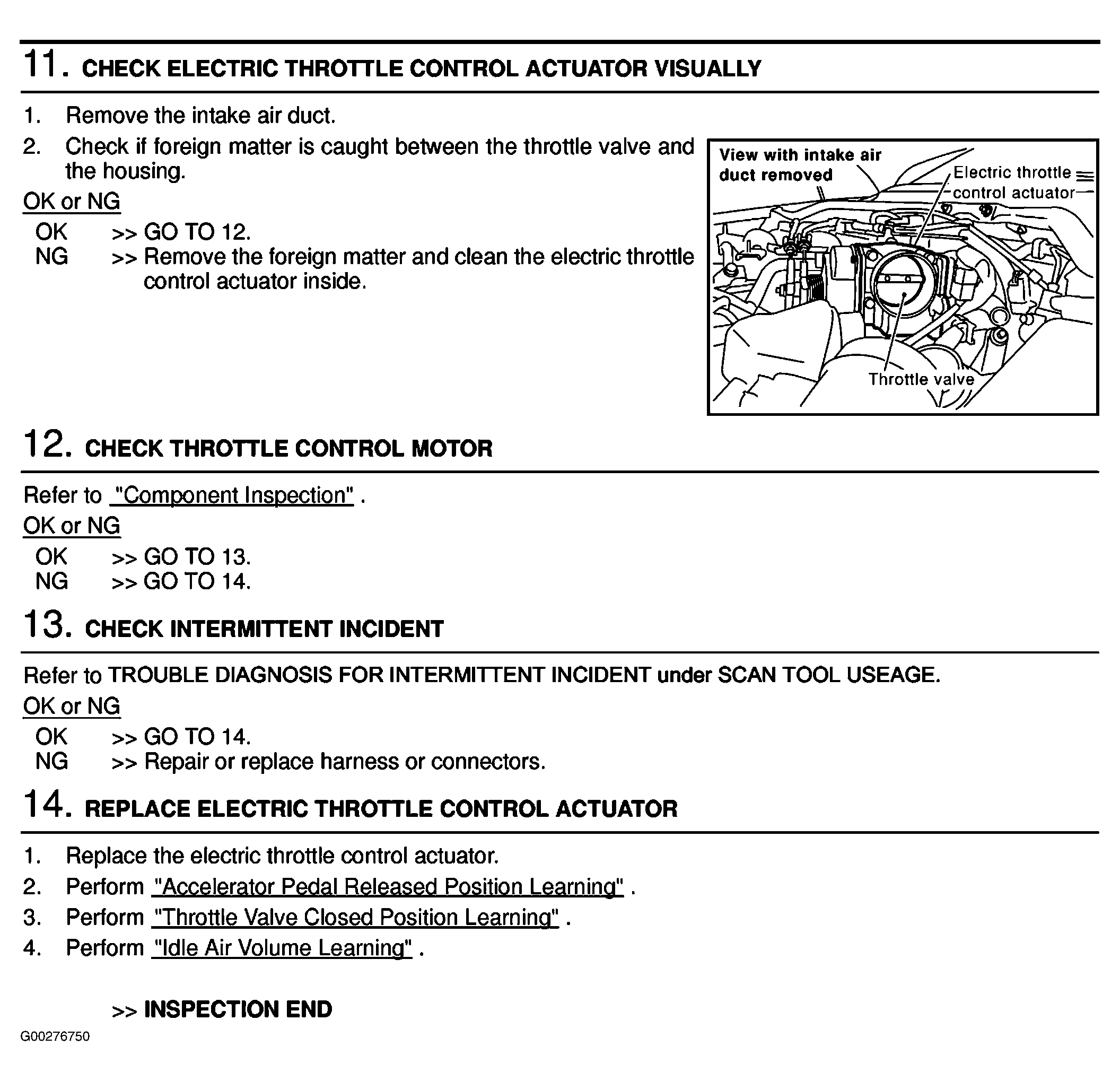

Fig 3: Diagnostic Procedure (Steps 11-14)
G00276750Courtesy of NISSAN MOTOR CO., U.S.A.
