Description, On Board Diagnosis Logic, Fail-Safe Mode & DTC Confirmation Procedure

For description, on board diagnosis logic, fail-safe mode and DTC confirmation procedure, see Fig 1 .

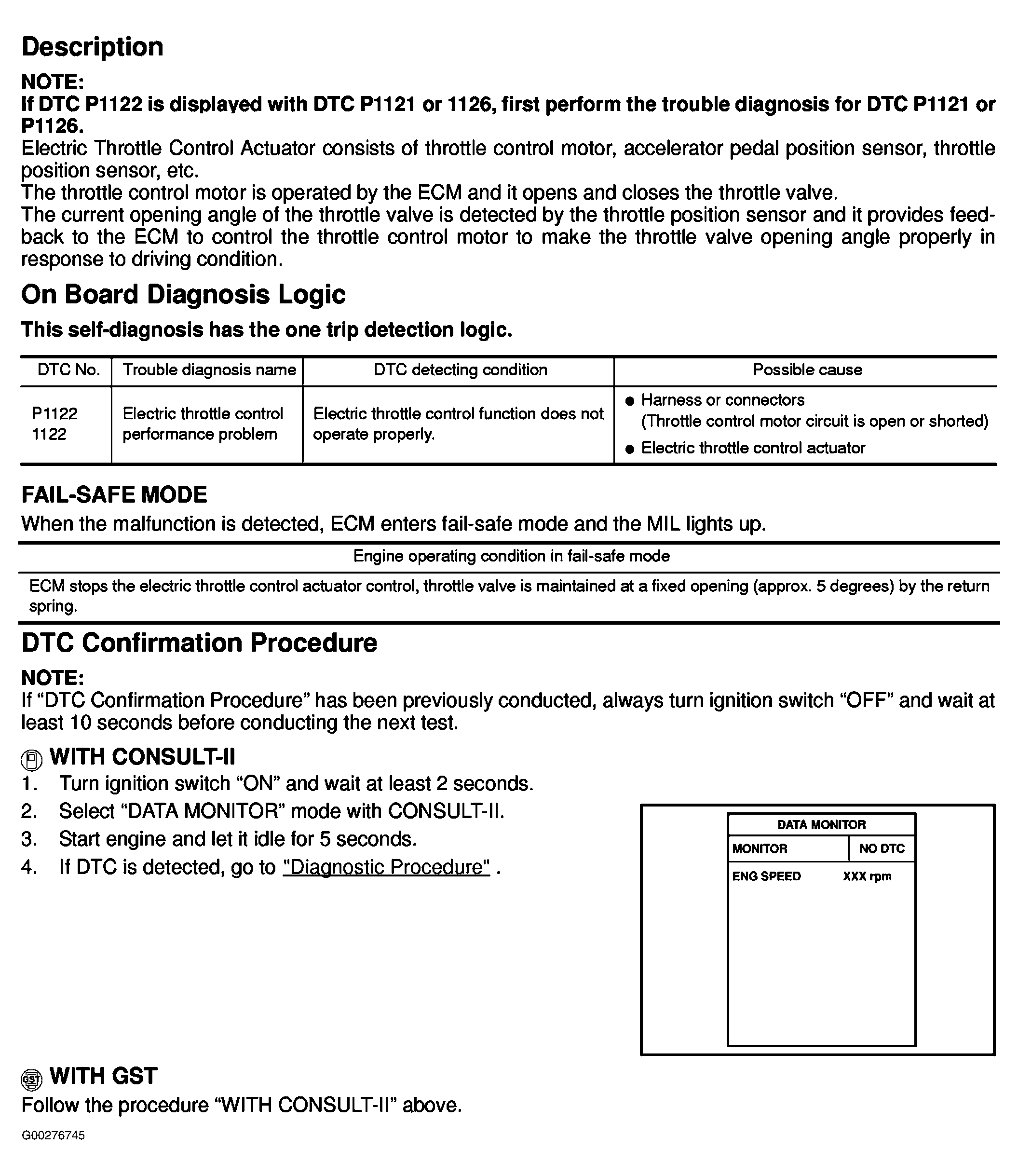

Fig 1: Description, On Board Diagnosis Logic, Fail-Safe Mode & DTC Confirmation Procedure

Courtesy of NISSAN MOTOR CO., U.S.A.
