Component Description, Reference Data, On Board Diagnosis Logic & Fail-Safe Mode

For component description, reference data, on board diagnosis logic and fail-safe mode, see Fig 1 .

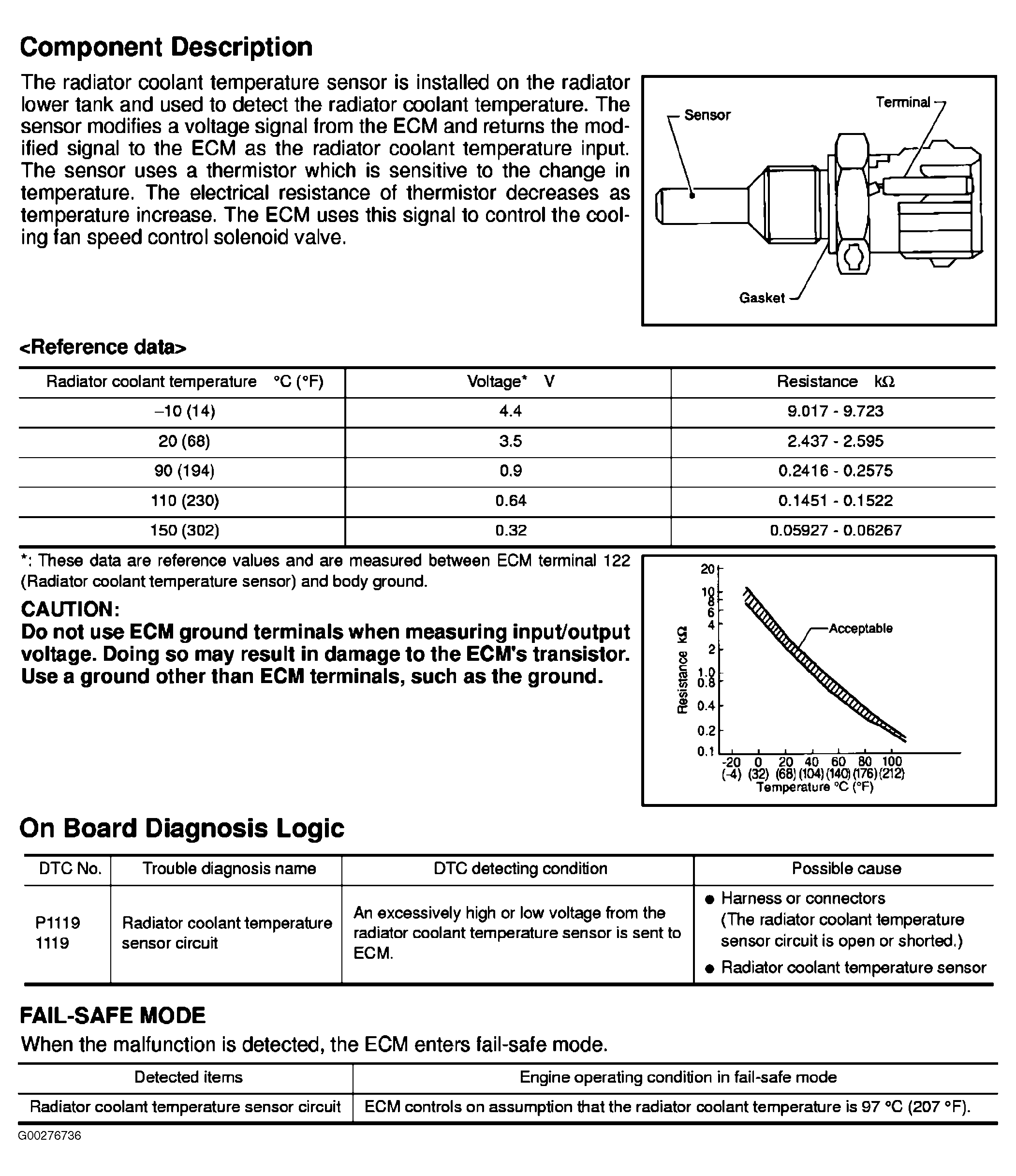

Fig 1: Component Description, Reference Data, On Board Diagnosis Logic & Fail-Safe Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
