CONSULT-II Reference Value In Data Monitor Mode & On Board Diagnosis Logic

For CONSULT-II reference value in data monitor mode and on board diagnosis logic, see Fig 1 .

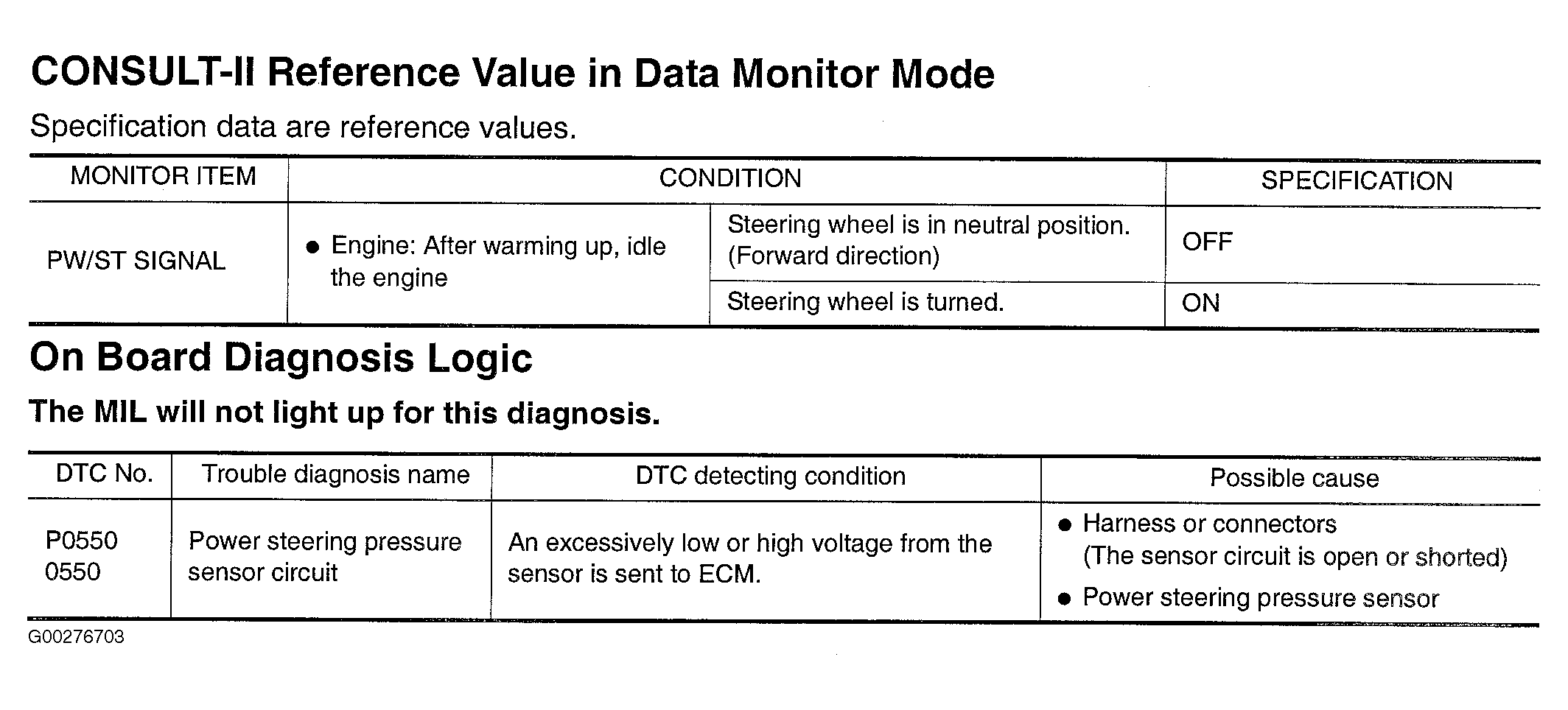

Fig 1: CONSULT-II Reference Value In Data Monitor Mode & On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
