Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 5 .

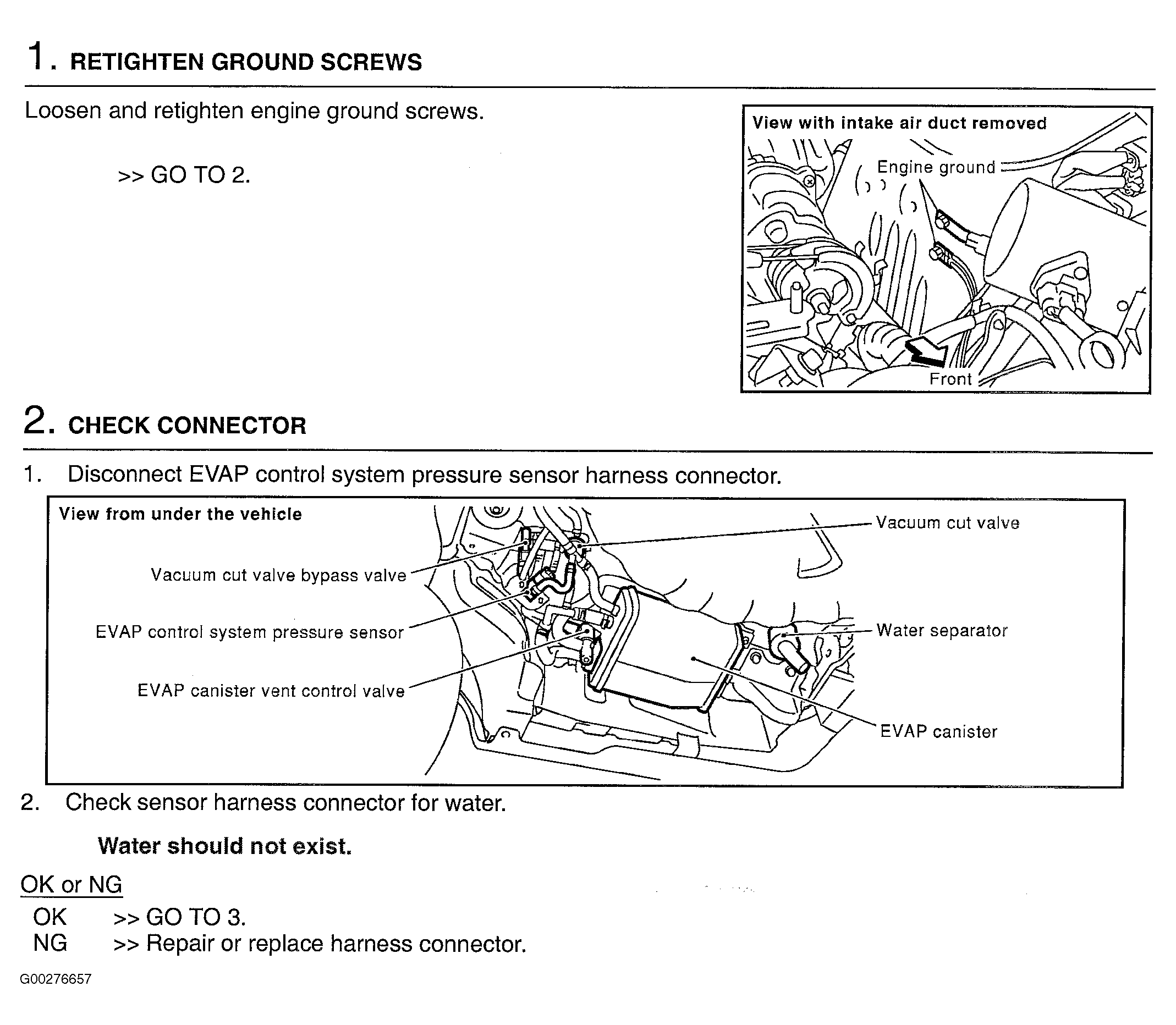

Fig 1: Diagnostic Procedure (Steps 1-2)
G00276657Courtesy of NISSAN MOTOR CO., U.S.A.

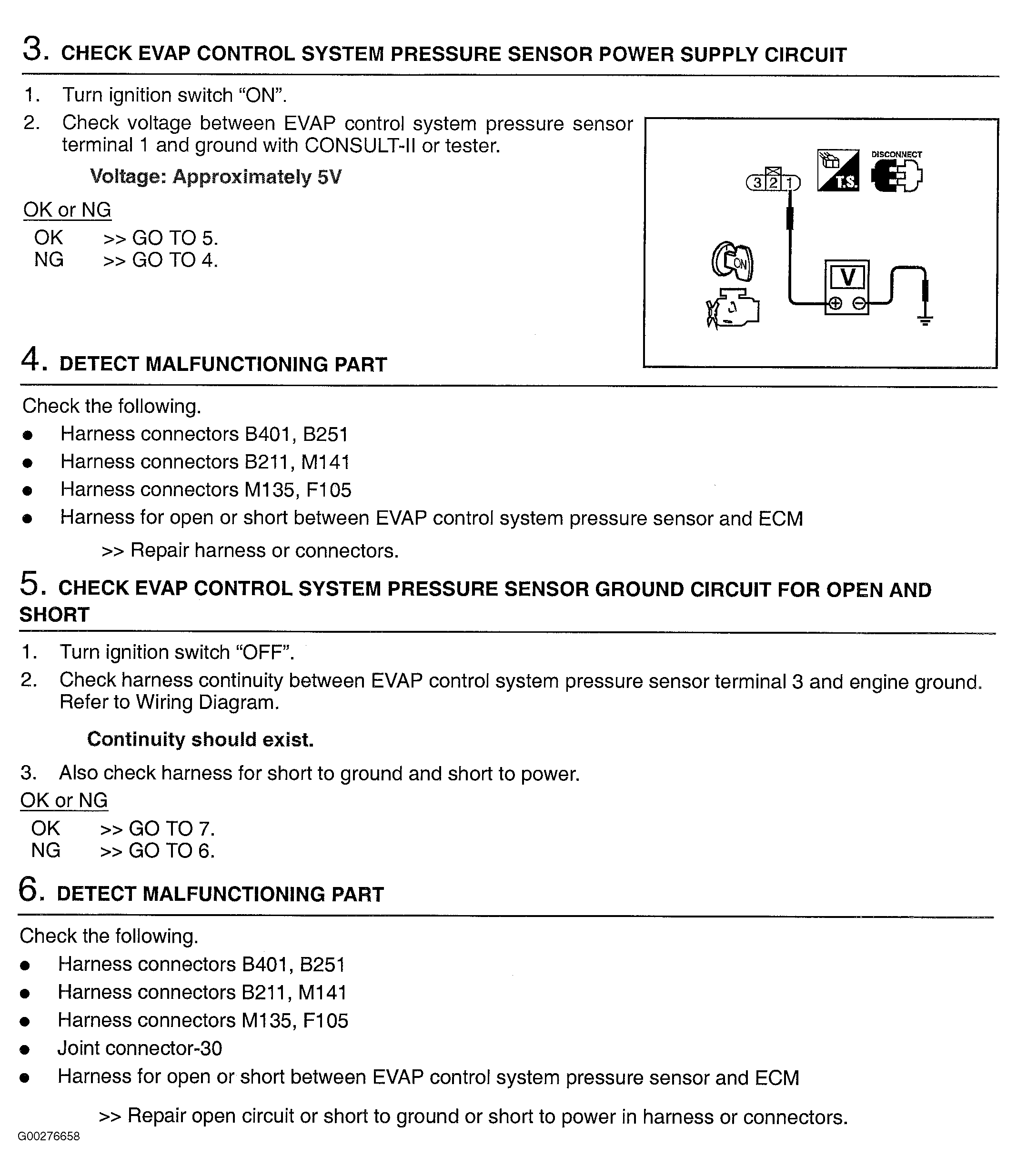

Fig 2: Diagnostic Procedure (Steps 3-6)
G00276658Courtesy of NISSAN MOTOR CO., U.S.A.

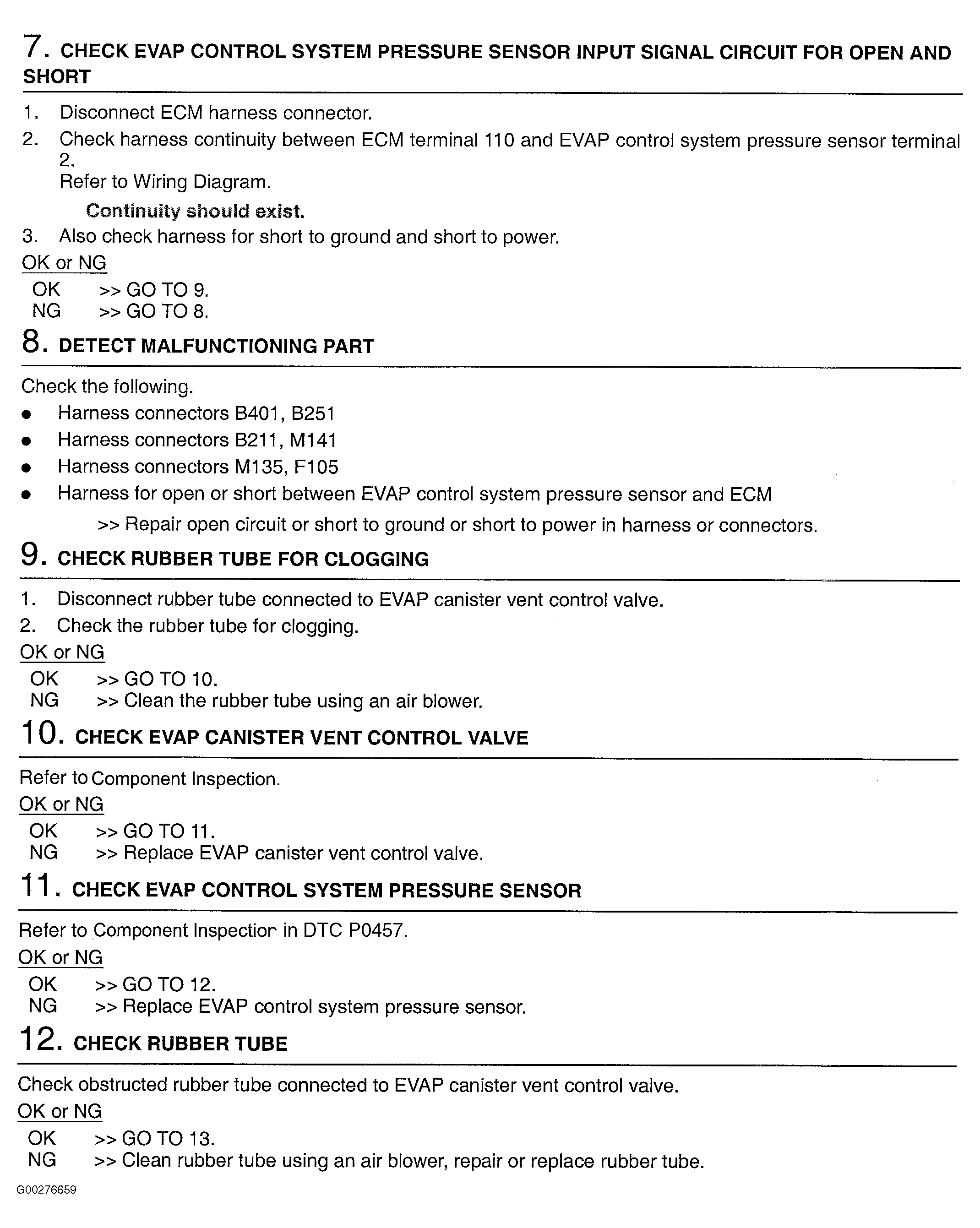

Fig 3: Diagnostic Procedure (Steps 7-12)
G00276659Courtesy of NISSAN MOTOR CO., U.S.A.

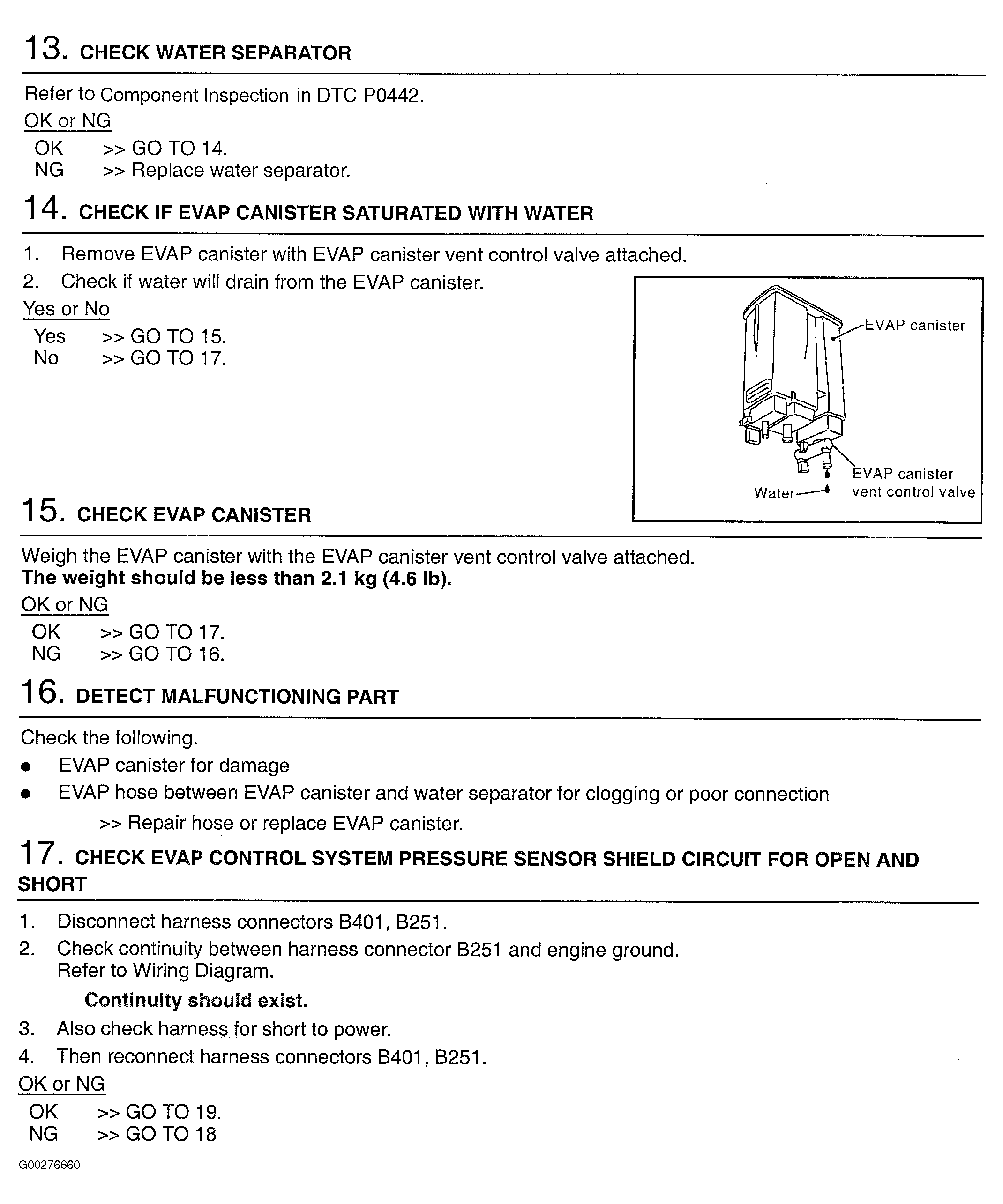

Fig 4: Diagnostic Procedure (Steps 13-17)
G00276660Courtesy of NISSAN MOTOR CO., U.S.A.

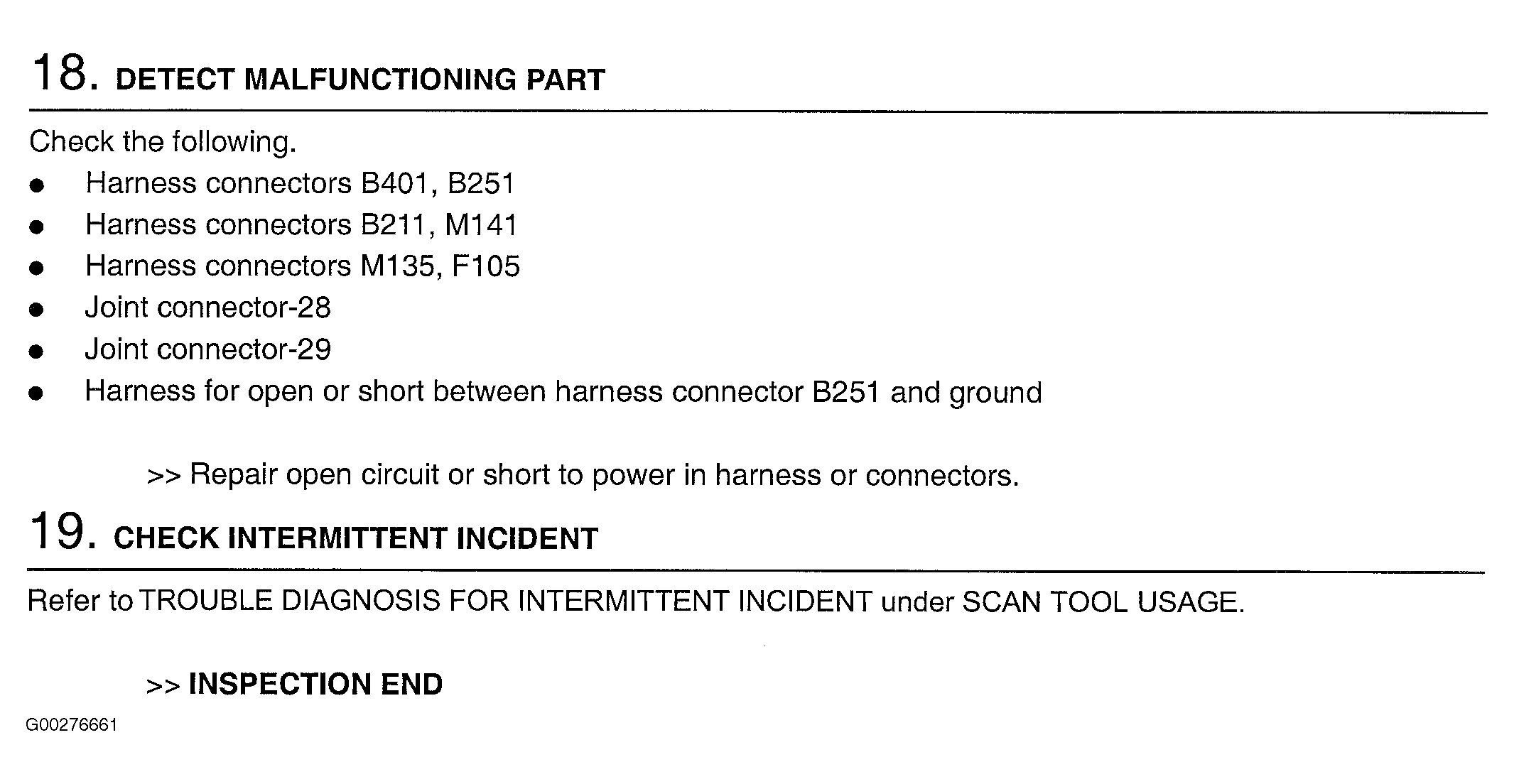

Fig 5: Diagnostic Procedure (Steps 18-19)
G00276661Courtesy of NISSAN MOTOR CO., U.S.A.
