Component Description & Reference Data

For component description and reference data, see Fig 1 .

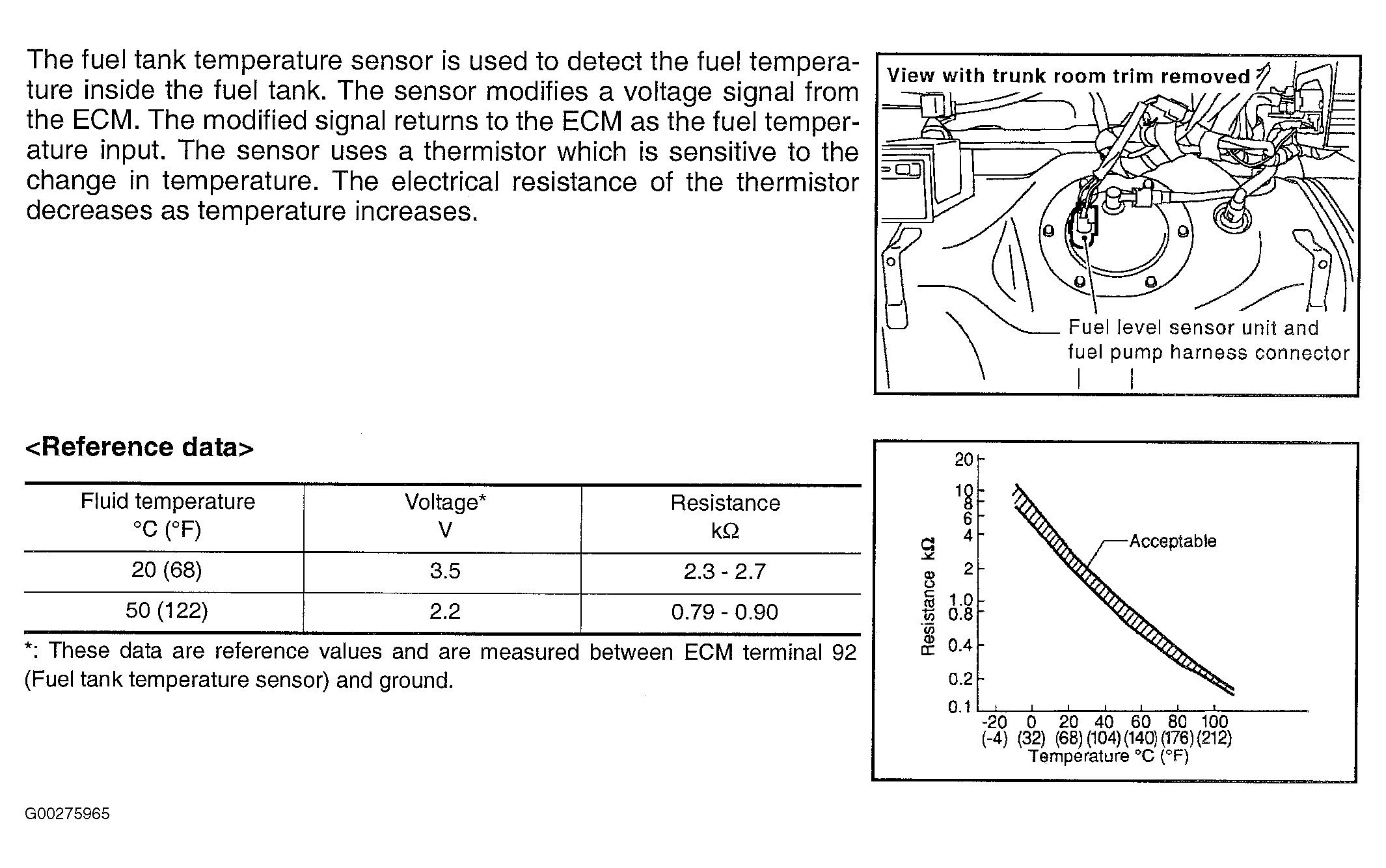

Fig 1: Component Description & Reference Data

G00275965

Courtesy of NISSAN MOTOR CO., U.S.A.
