CONSULT-II Reference Value In Data Monitor Mode

For CONSULT-II reference value in data monitor mode, see Fig 1 .

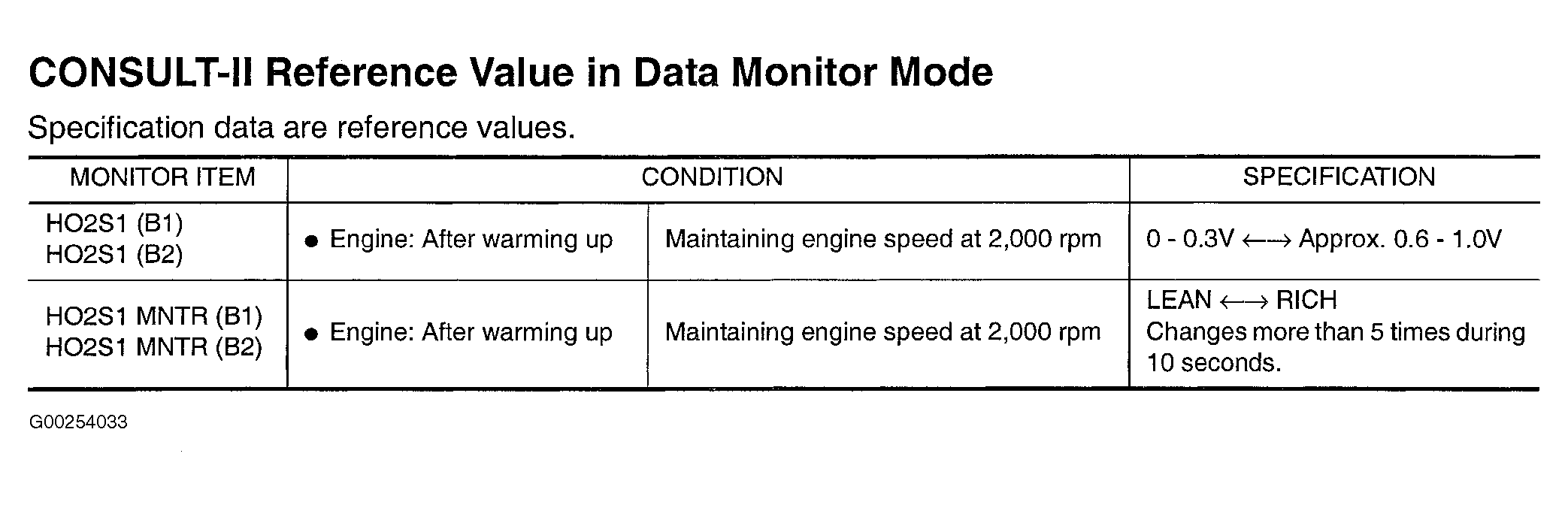

Fig 1: CONSULT-II Reference Value In Data Monitor Mode
G00254033Courtesy of NISSAN MOTOR CO., U.S.A.
