Wiring Diagram & Reference Data For Engine Coolant Temperature Sensor

For wiring diagram and reference data related to Engine Coolant Temperature (ECT) sensor, see Fig 1 and Fig 2 .

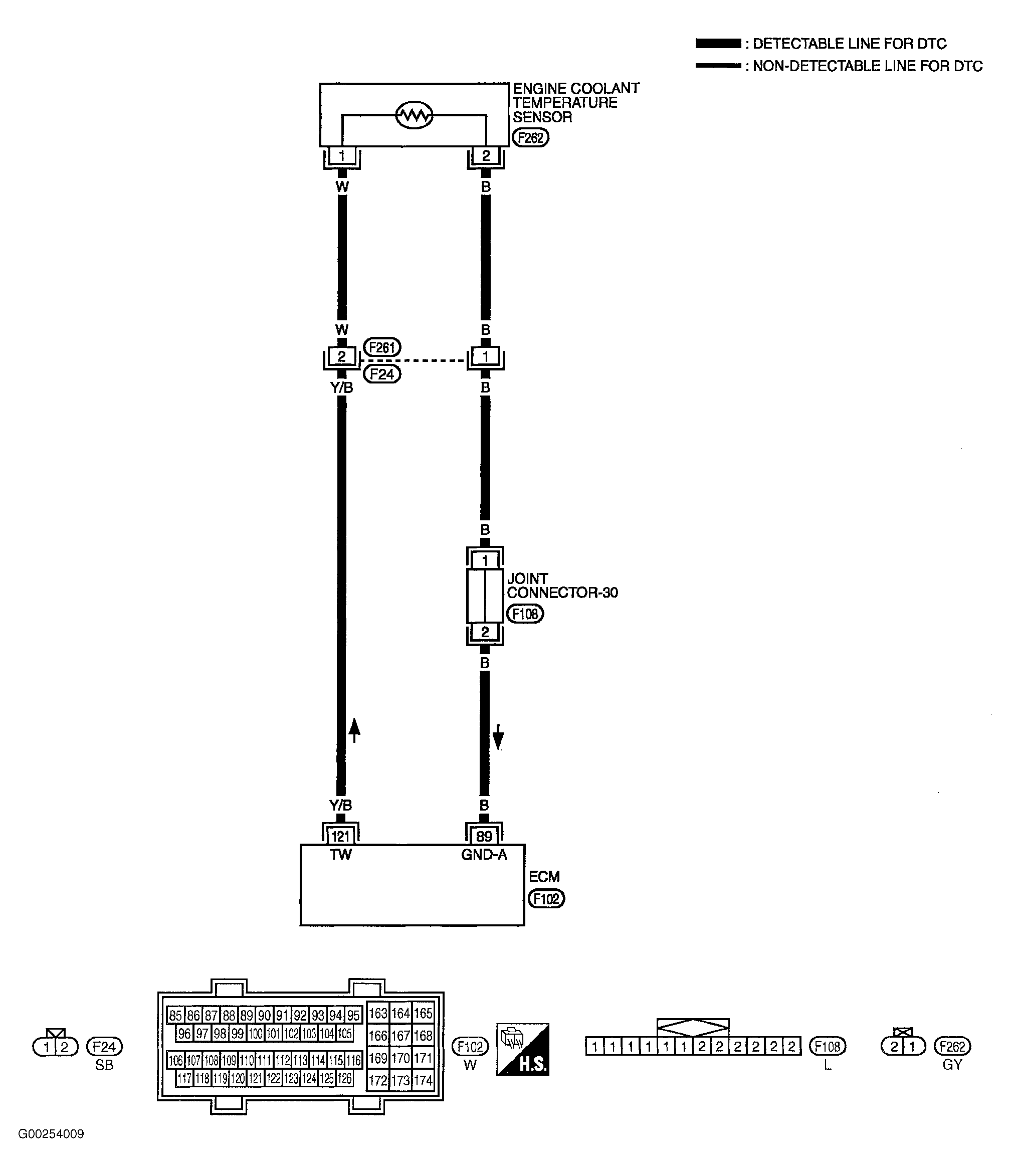

Fig 1: Wiring Diagram For Engine Coolant Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

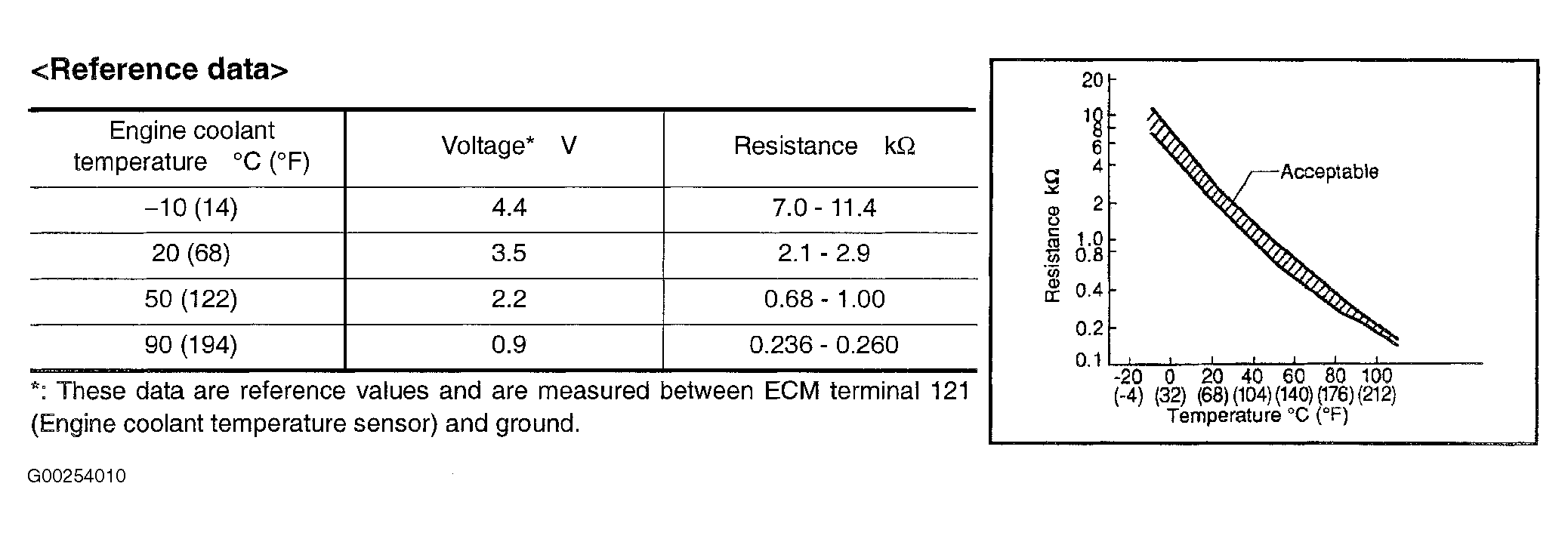

Fig 2: Reference Data For Engine Coolant Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
