Overall Function Check Procedure For Malfunction "B"

For overall function check procedure for malfunction "B", see Fig 1 .

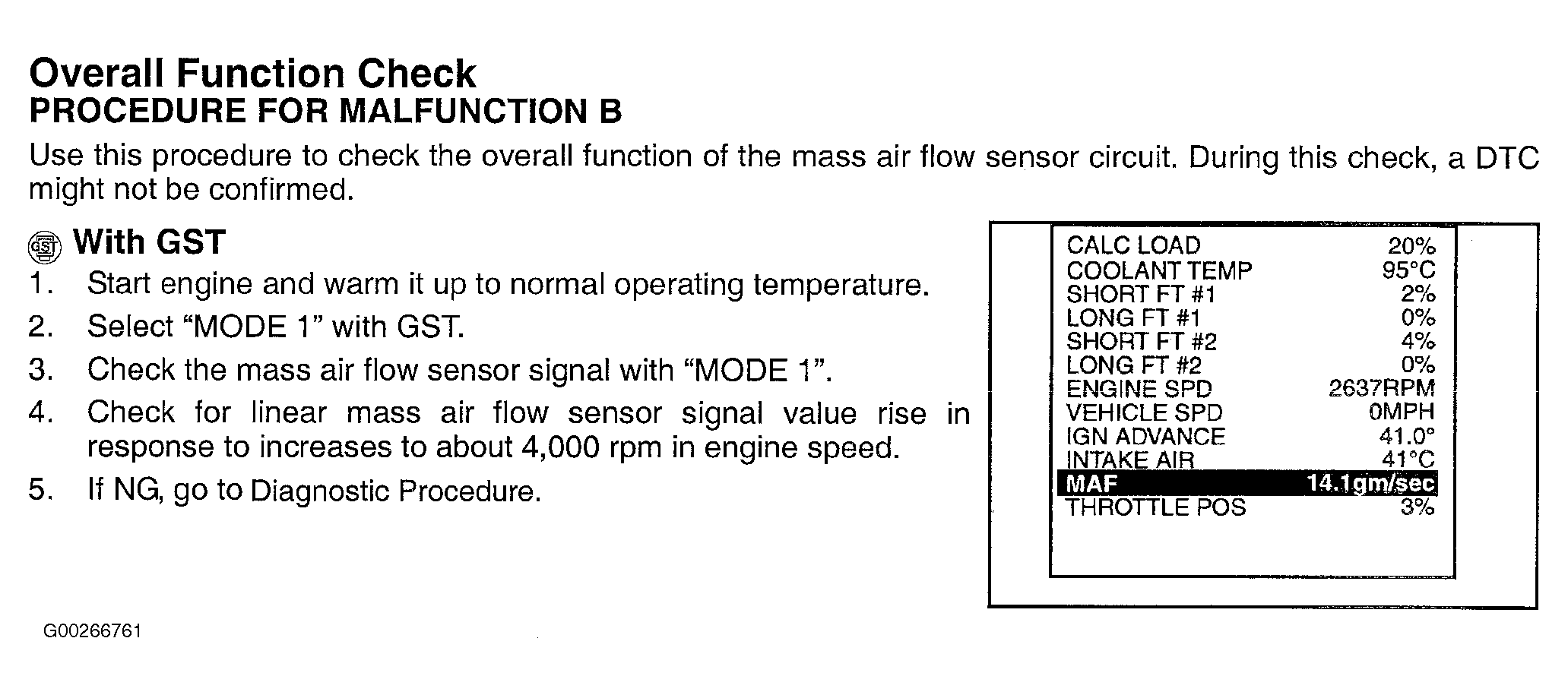

Fig 1: Overall Function Check Procedure For Malfunction "B"
G00266761Courtesy of NISSAN MOTOR CO., U.S.A.
