Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 3 .

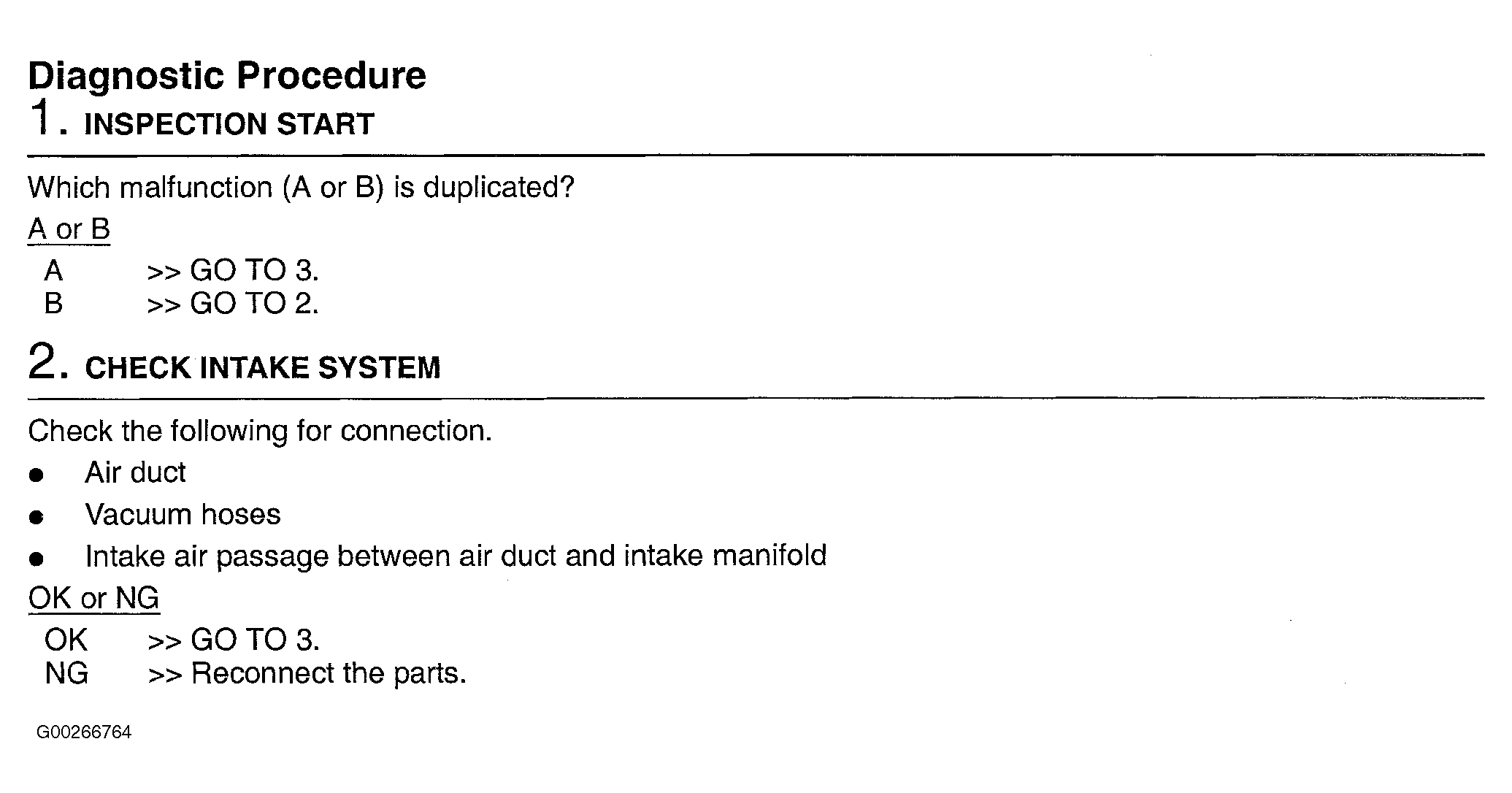

Fig 1: Diagnostic Procedure (Steps 1 & 2)
G00266764Courtesy of NISSAN MOTOR CO., U.S.A.

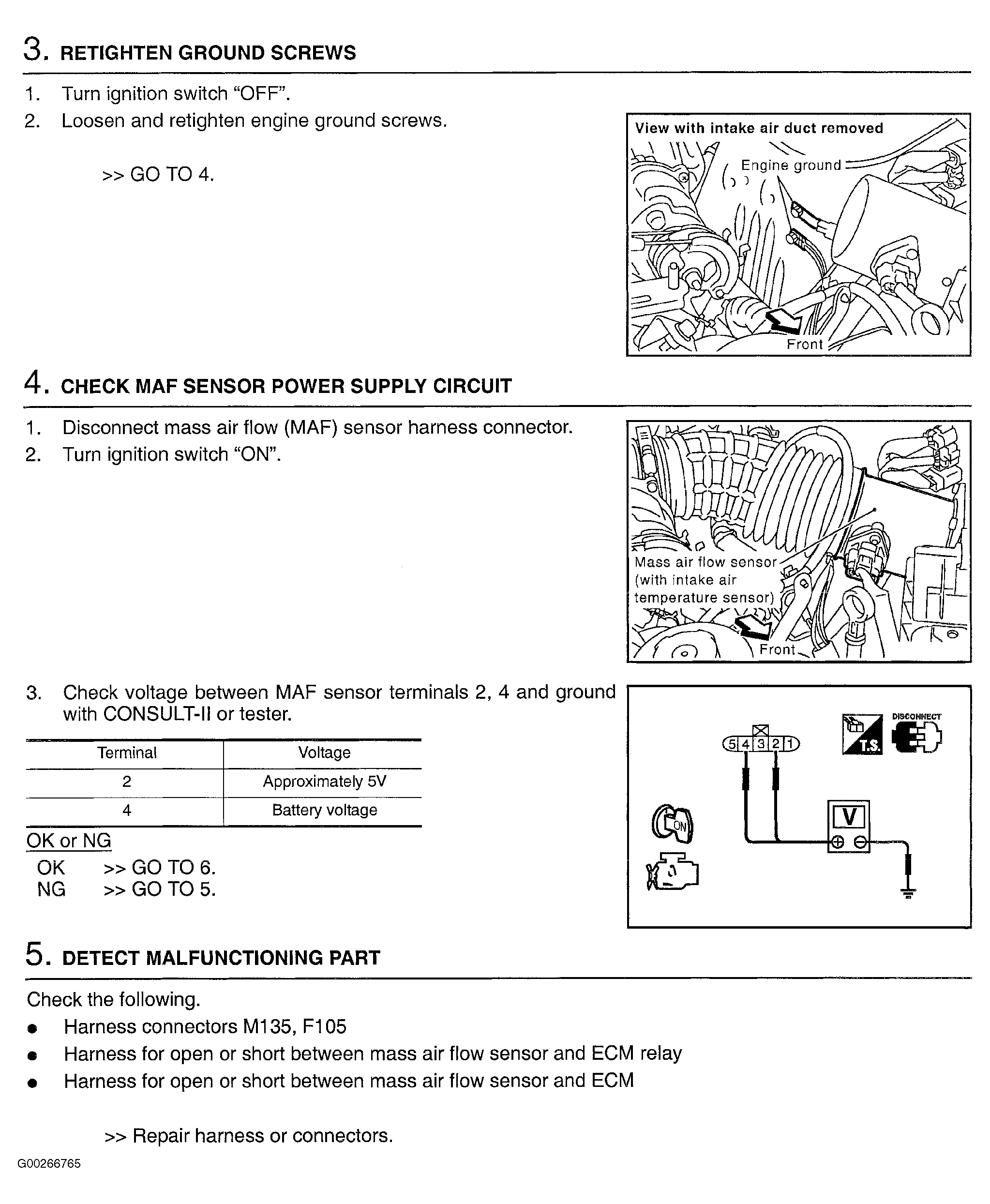

Fig 2: Diagnostic Procedure (Steps 3-5)
G00266765Courtesy of NISSAN MOTOR CO., U.S.A.

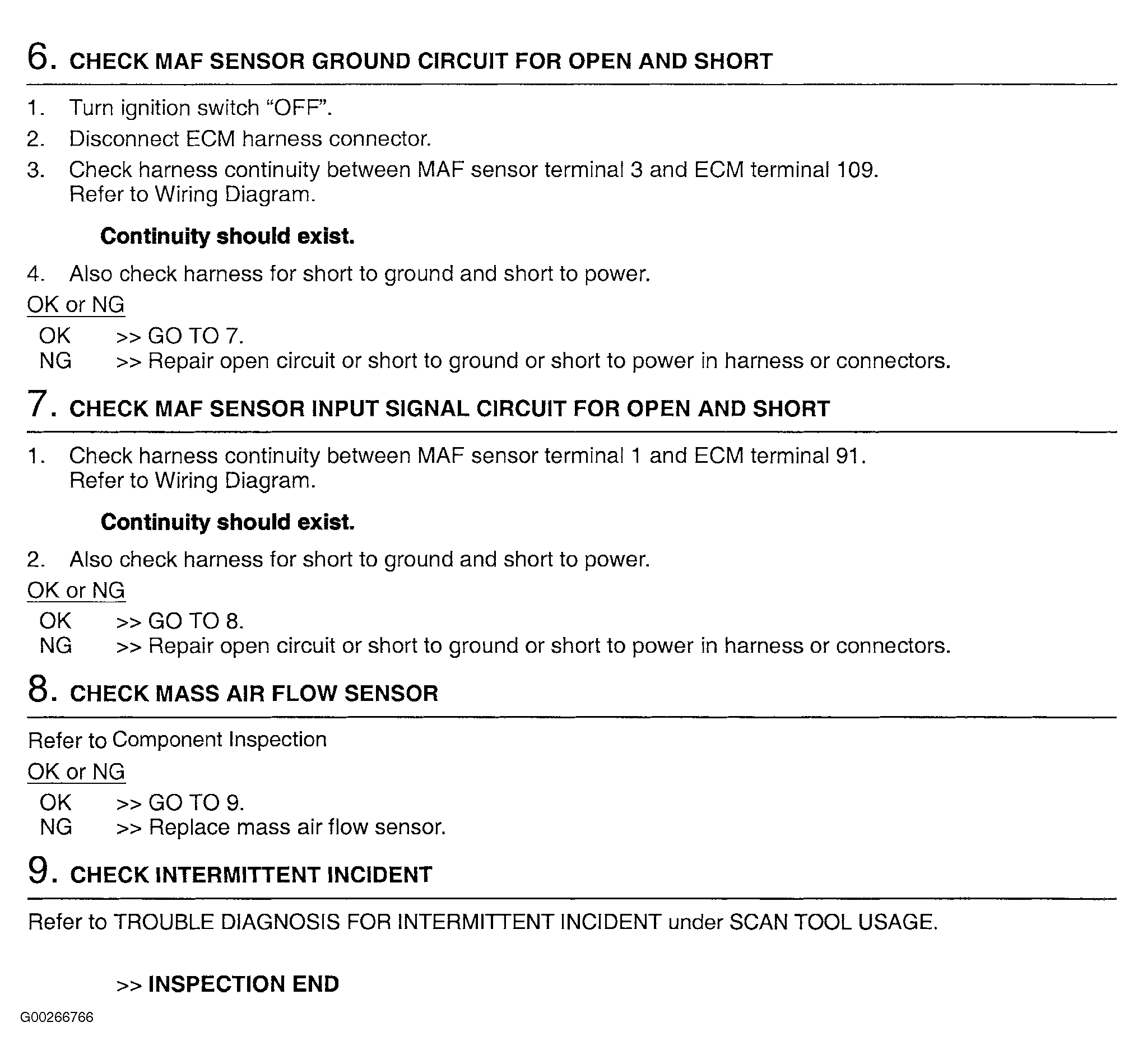

Fig 3: Diagnostic Procedure (Steps 6-9)
G00266766Courtesy of NISSAN MOTOR CO., U.S.A.
