Diagnostic Procedure 1, Check "L" Terminal Circuit

NOTE: For trouble diagnoses with Battery/Starting/Charging system tester, see TROUBLE DIAGNOSIS WITH BATTERY/STARTING/CHARGING SYSTEM TESTER .

NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS .

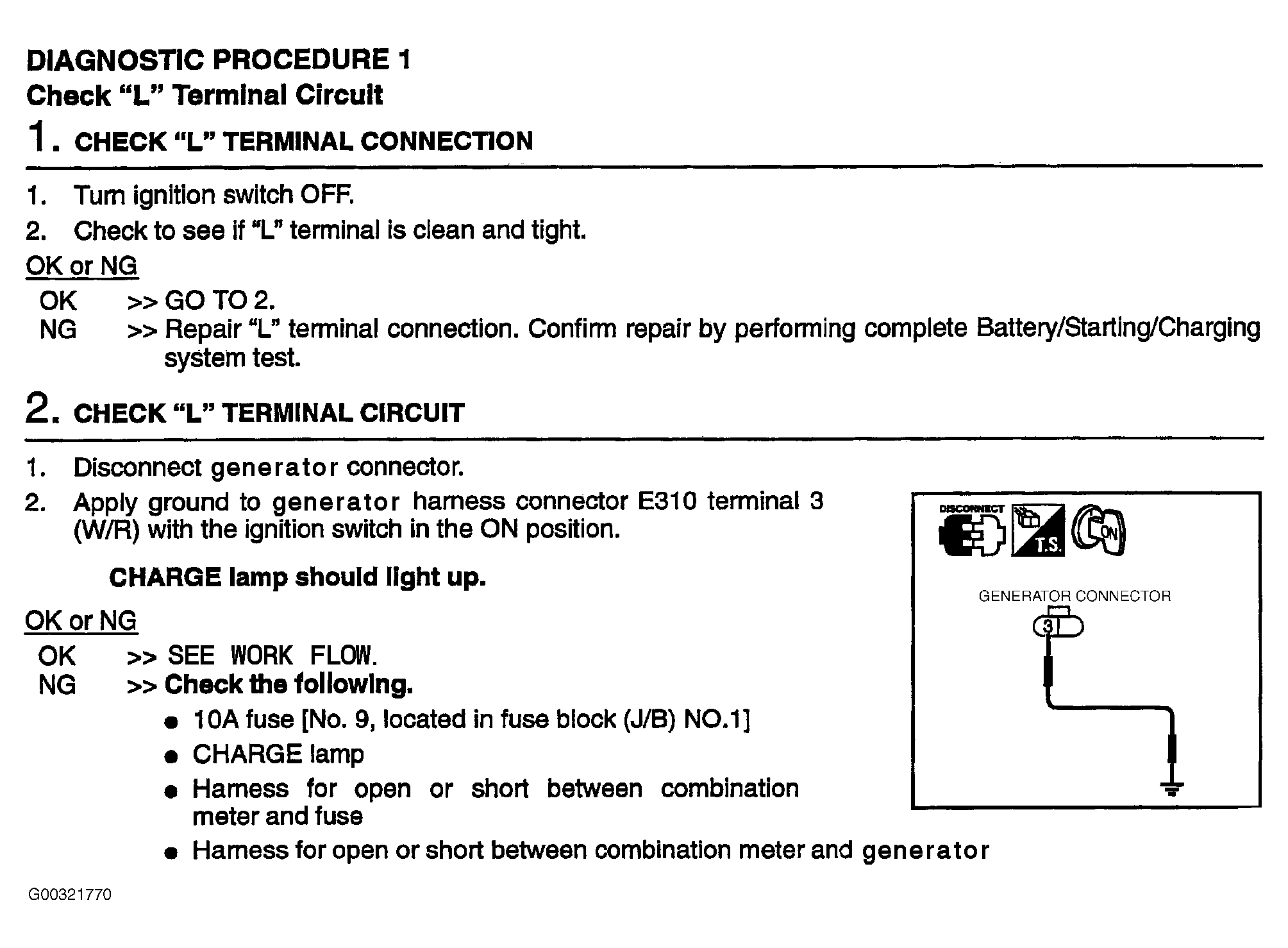

For diagnostic procedure 1, check "L" terminal circuit, see Fig 1 .

Fig 1: Identifying Diagnostic Procedure 1, Check "L" Terminal Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
