Removal And Installation: Removal

  1. Disconnect negative battery terminal and positive battery terminal.
    CAUTION: When removing, remove negative battery terminal first.
  2. Remove battery fix frame.
  3. Remove battery case.
  4. Remove battery.
  5. Remove battery tray.

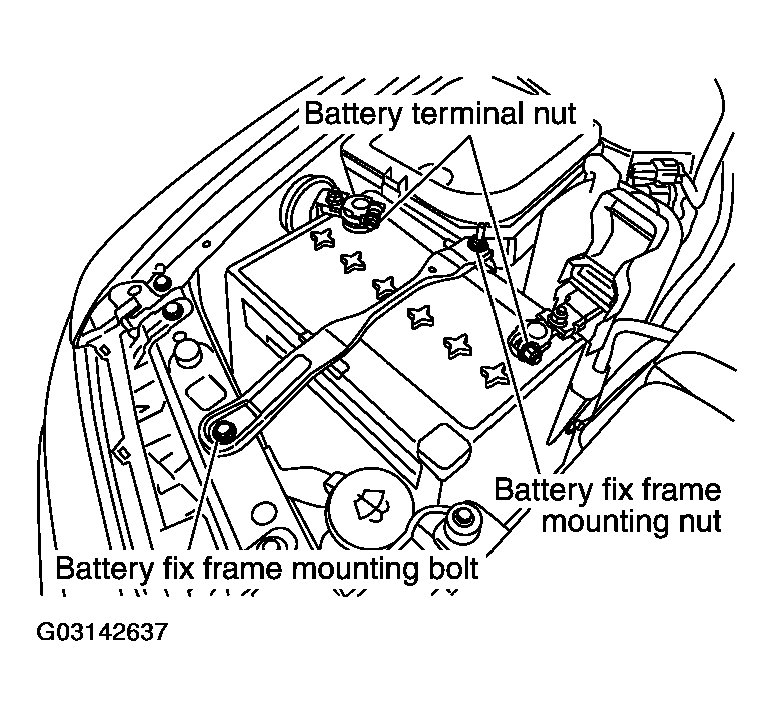

    Fig 1: Locating Battery Hold-Down Hardware
    G03142637Courtesy of NISSAN MOTOR CO., U.S.A.
