Removal and Installation: Notes

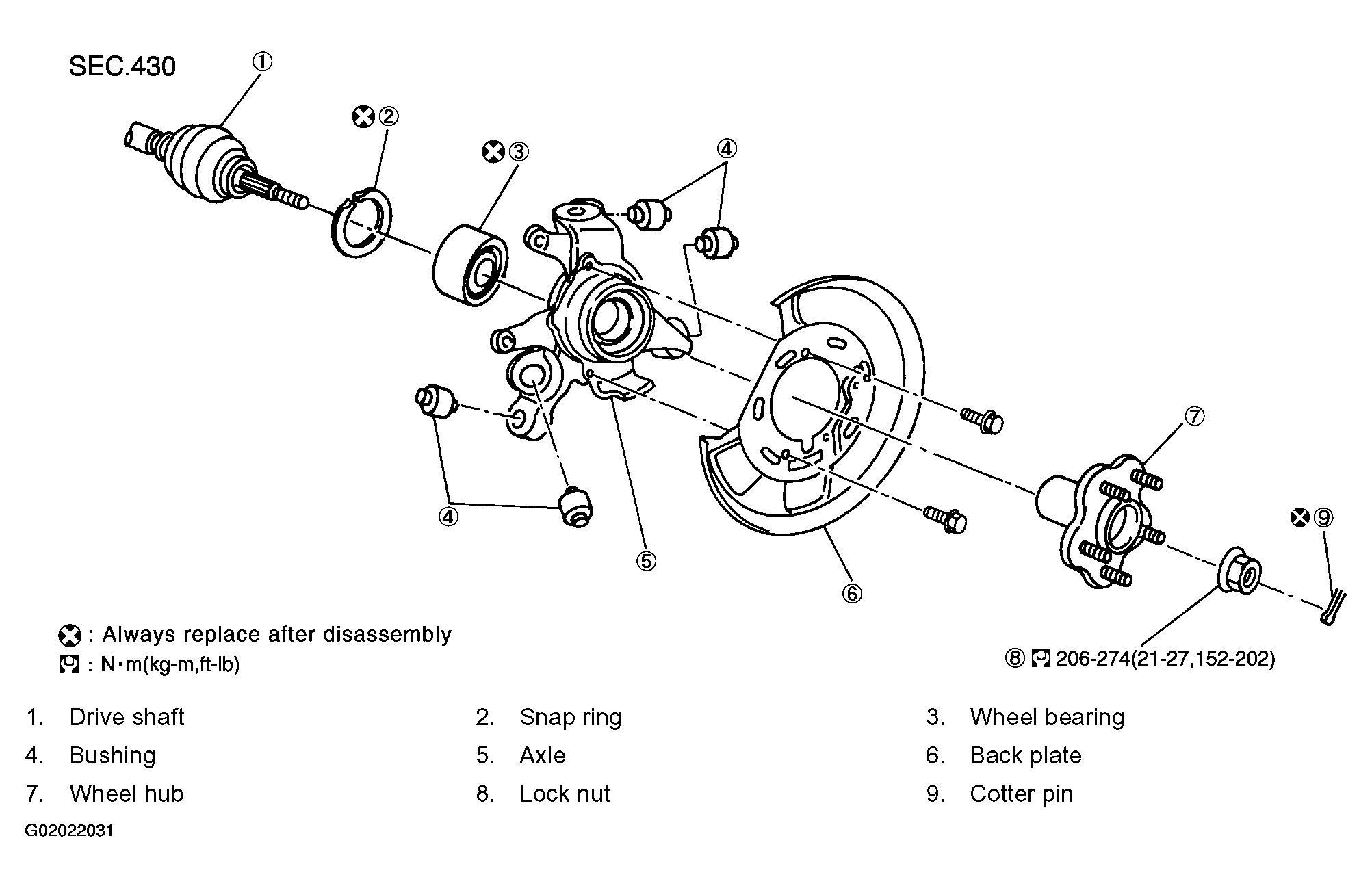

Fig 1: Exploded View Of Wheel Hub
G02022031Courtesy of NISSAN MOTOR CO., U.S.A.
