Parking Brake Control: Components

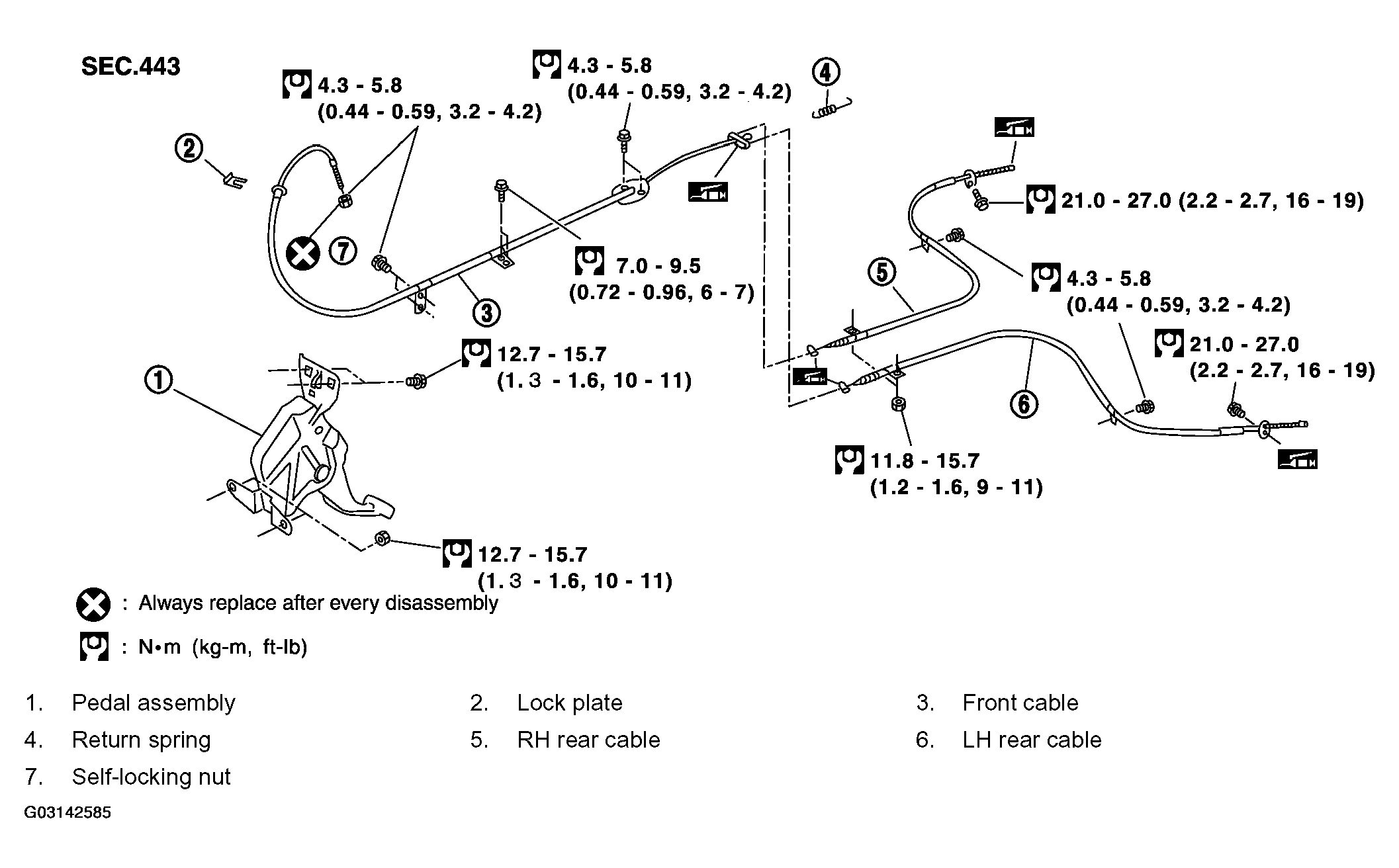

Fig 1: Identifying Parking Brake Control System Components

G03142585

Courtesy of NISSAN MOTOR CO., U.S.A.
