Abs Motor

Touch "ON" and "OFF" on the screen. Make sure that motor relay operates as shown in table below.

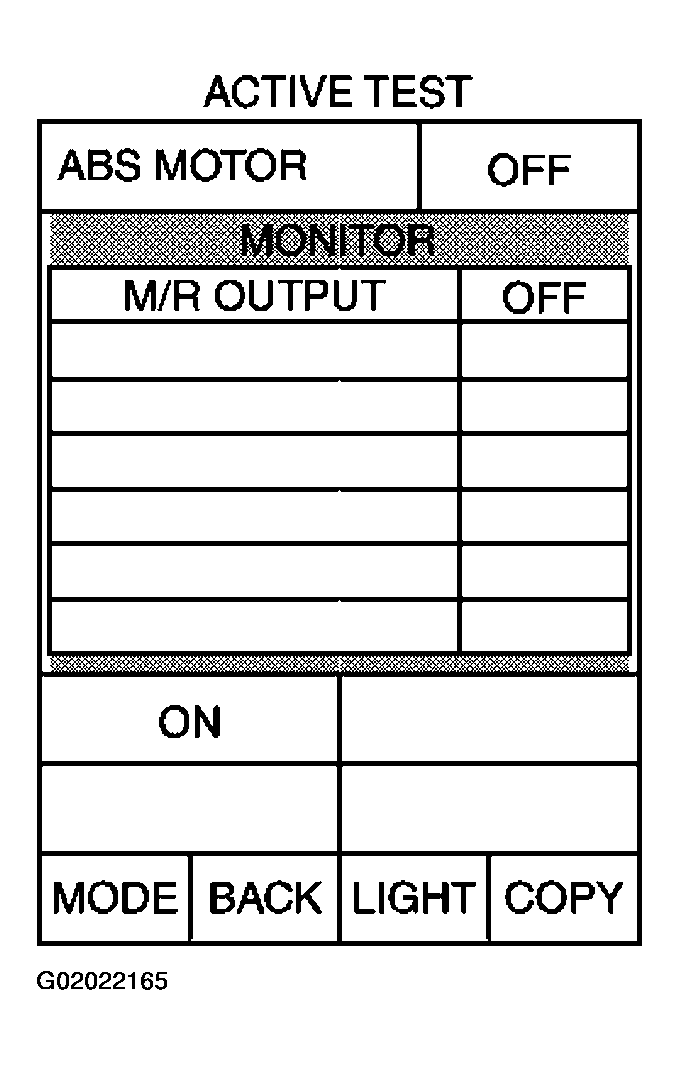

Fig 1: Checking ABS Motor Operation (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST STOP" is displayed approximately 10 seconds after operation starts.

Fig 2: Checking ABS Motor Operation (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
