Trouble Diagnosis: Schematic

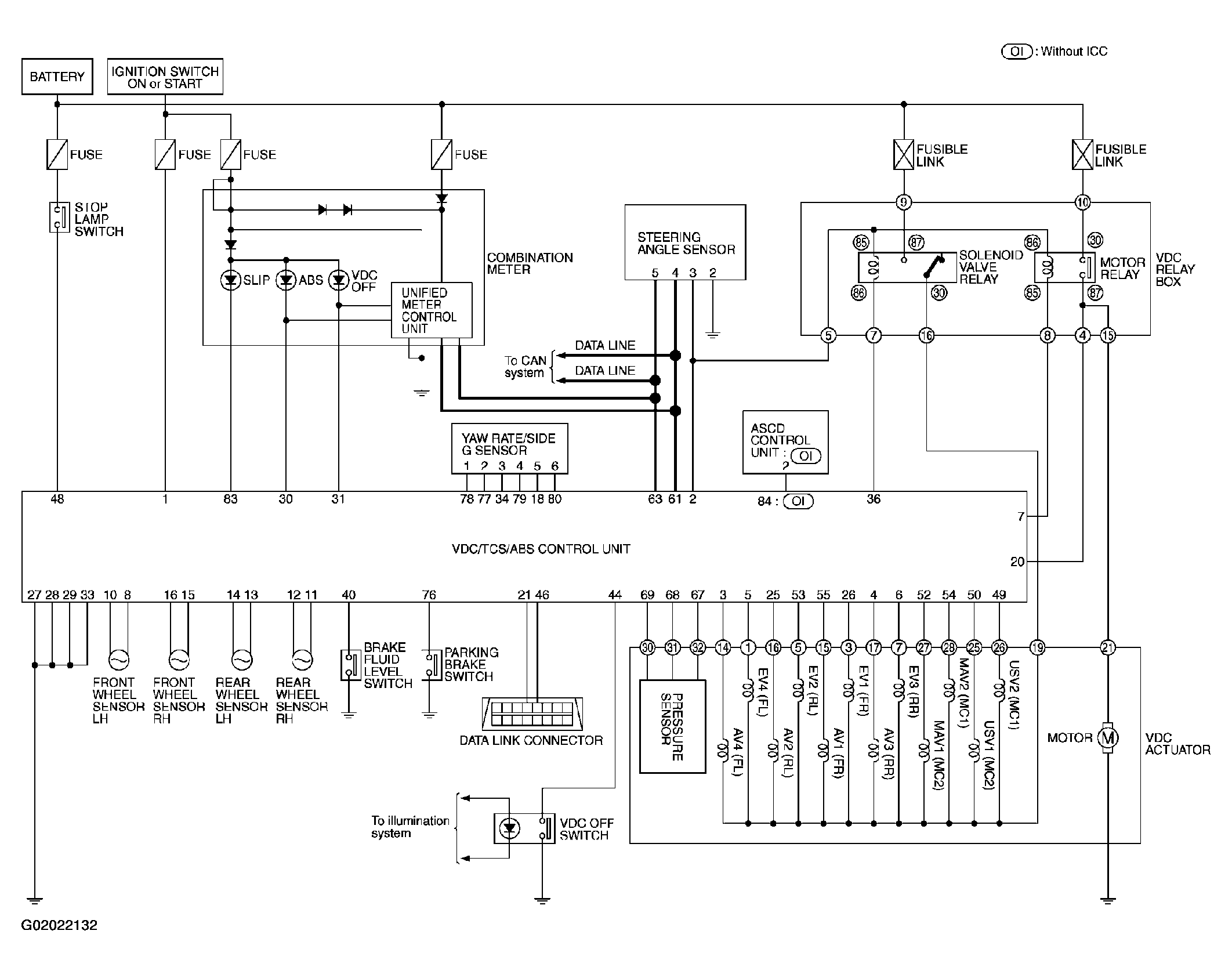

Fig 1: VDC, TCS And ABS Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
