M45
>>
Repair and Diagnosis
>>
Brakes
>>
Brakes Control Systems
>>
Brake Control System
>>
System Description
>>
Hydraulic Circuit Diagram
Hydraulic Circuit Diagram

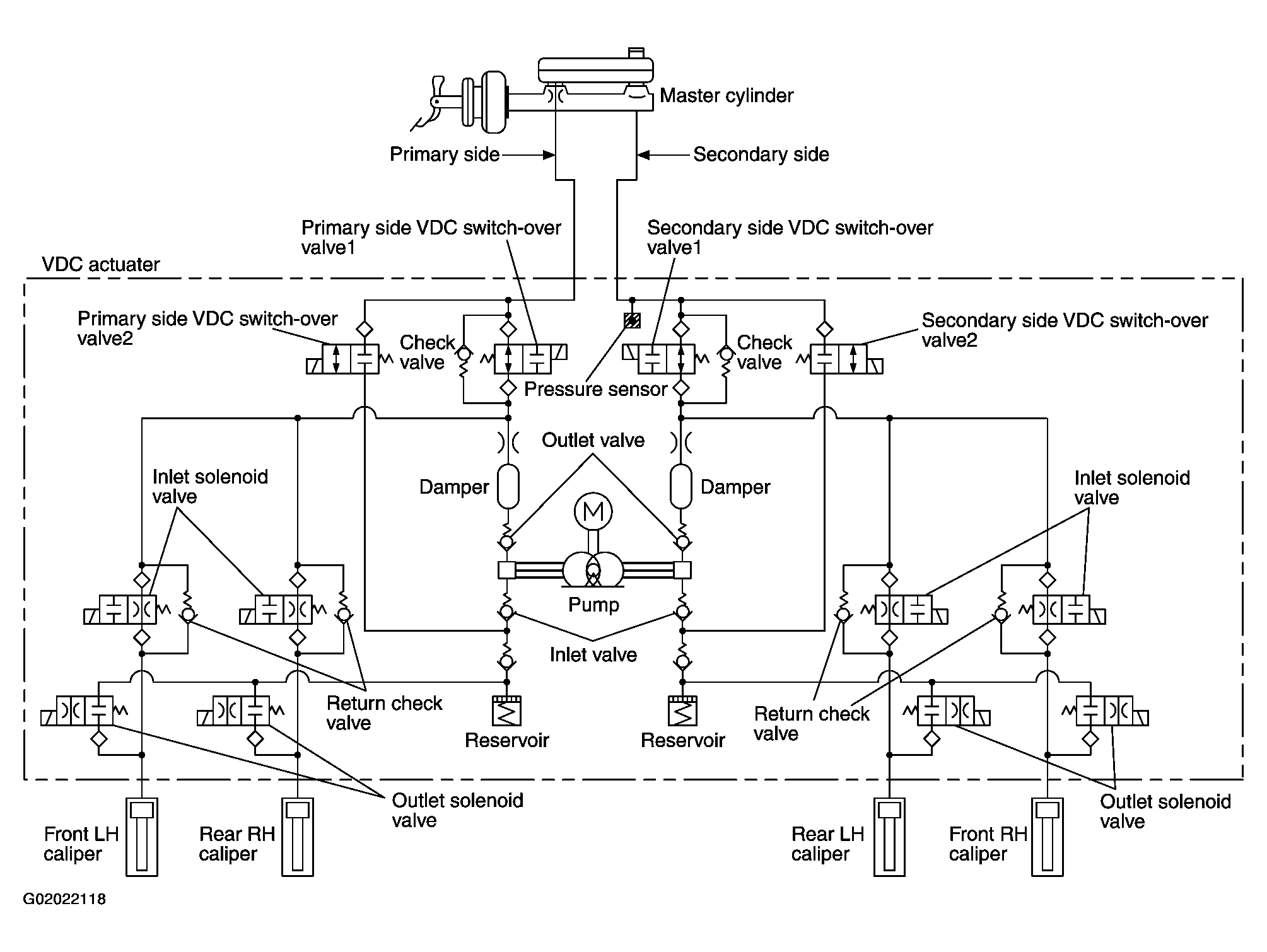

Fig 1: VDC, TCS And ABS Hydraulic Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
