Automatic Drive Positioner: Schematic

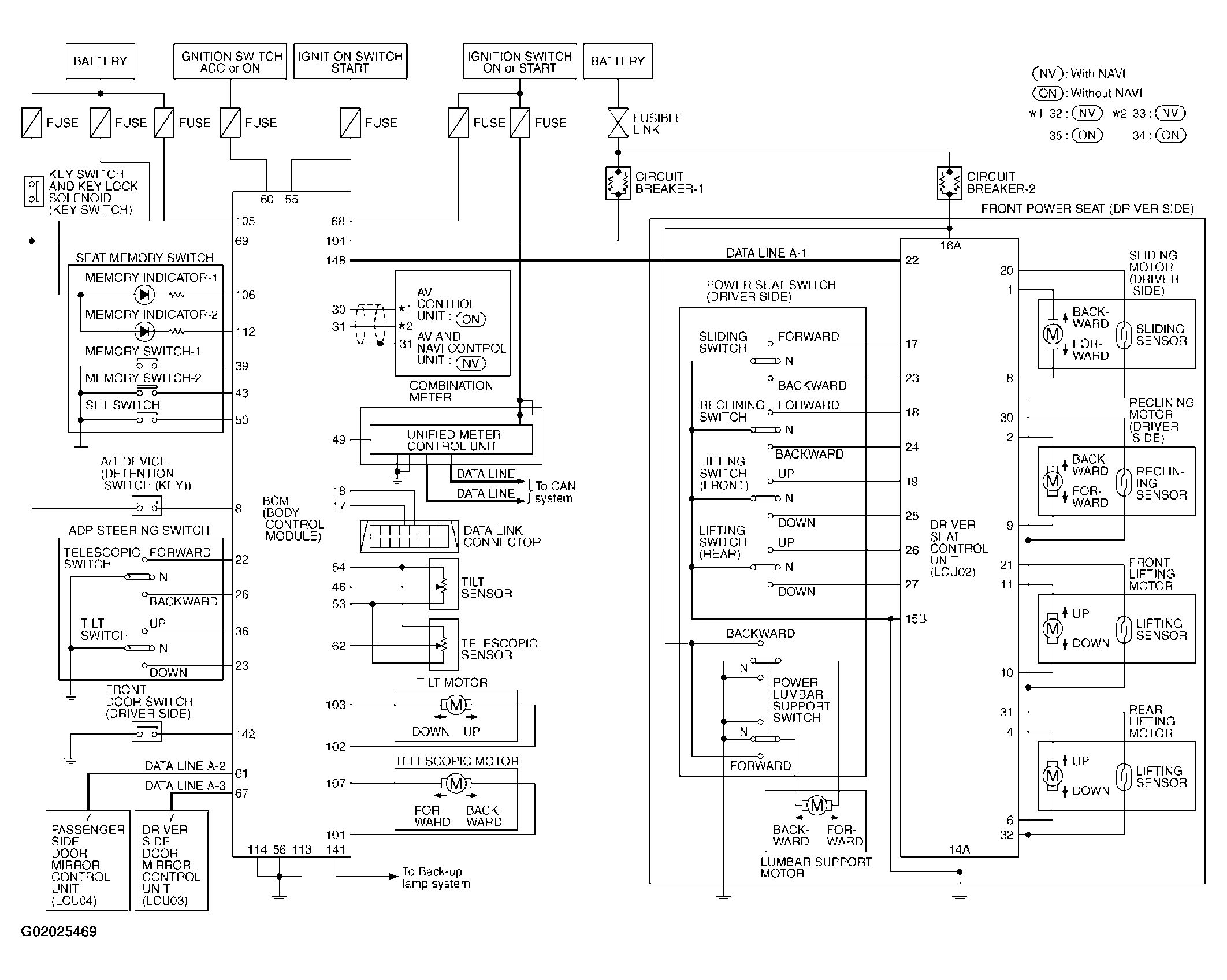

Fig 1: Automatic Drive Positioner Schematic Diagram

G02025469

Courtesy of NISSAN MOTOR CO., U.S.A.
