TCM Terminals And Reference Value: Notes

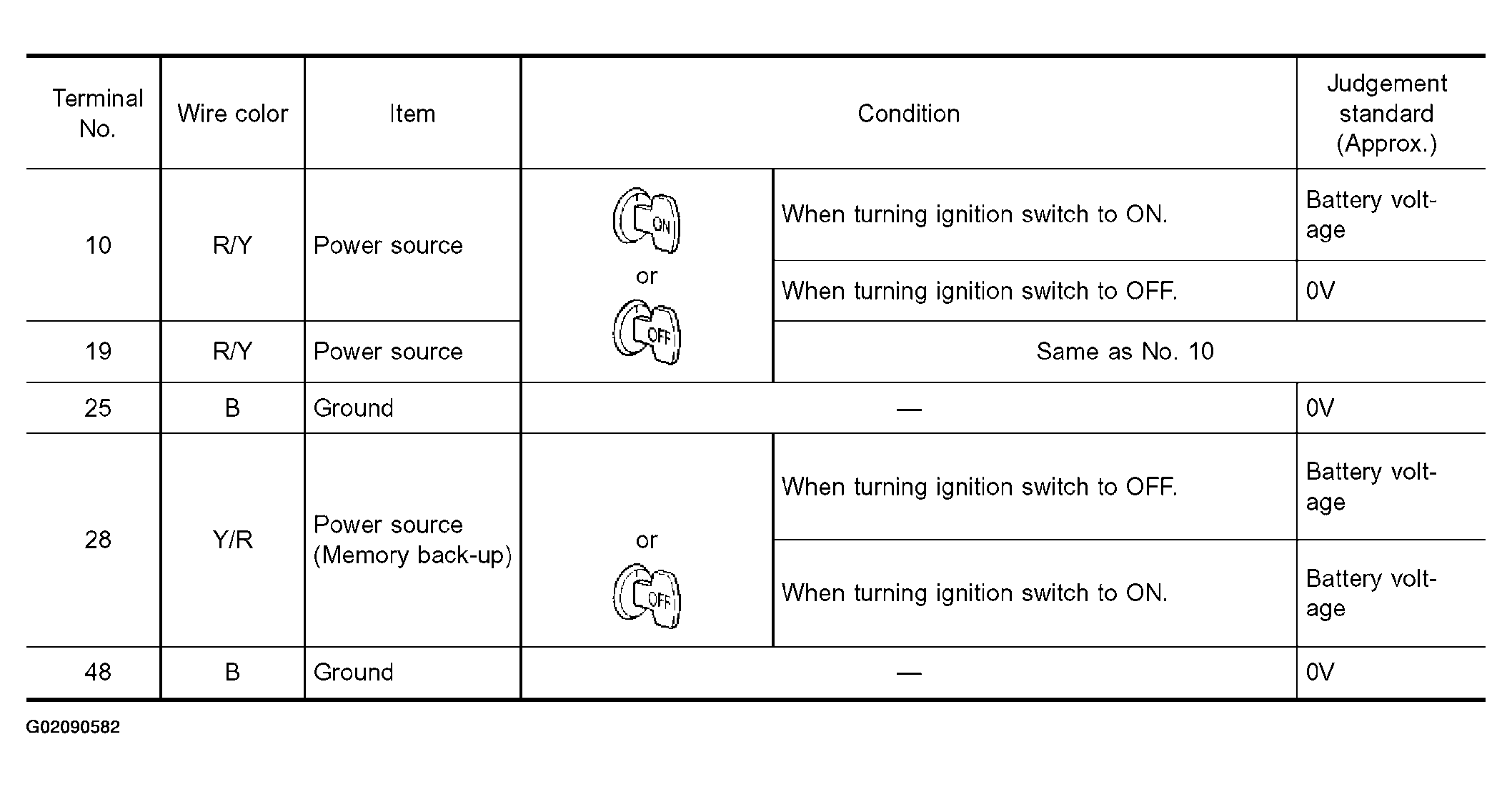

Fig 1: Identifying TCM Terminals & Reference Value Chart

G02090582

Courtesy of NISSAN MOTOR CO., U.S.A.
