CONSULT-II Setting Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in left side dash panel.

Fig 1: Identifying Consult-II Setting Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Display Touch Start (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T". If "A/T" is not indicated, go toCONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: Display Select System Consult-II Sheet
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DATA MONITOR".

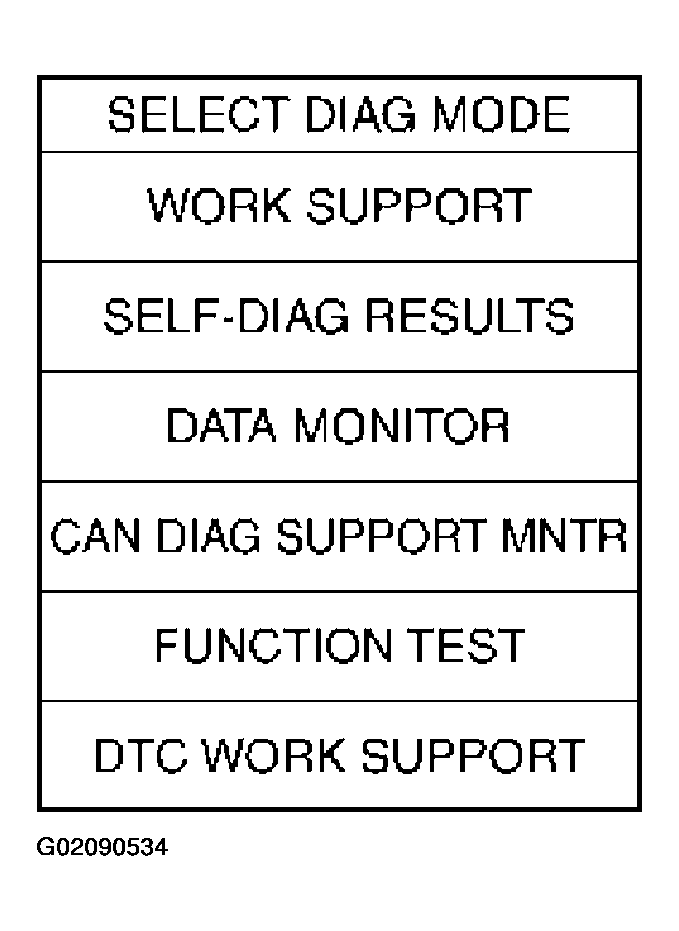

Fig 4: Display Select Diag Mode Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MAIN SIGNALS" or "TCM INPUT SIGNALS".
See "Numerical Display", "Barchart Display" or "Line Graph Display".

Fig 5: Identifying Touch Main Signals Or TCM Input Signals
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SETTING" to set recording condition ("AUTO TRIG" or "MANU TRIG") and touch "BACK".
Touch "Start".

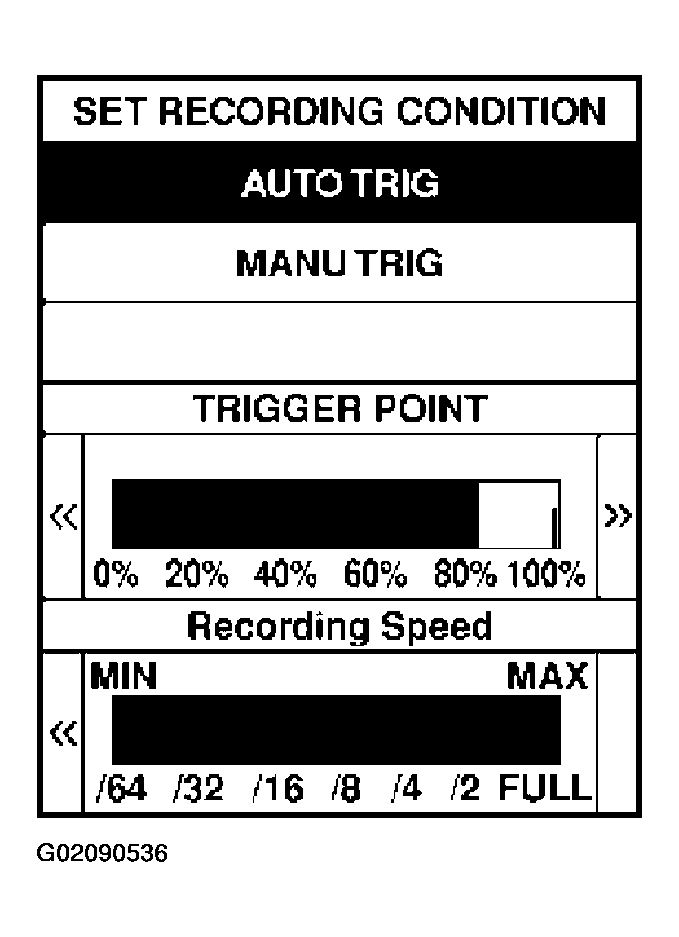

Fig 6: Identifying Touch Setting To Set Recording Condition
Courtesy of NISSAN MOTOR CO., U.S.A.
When performing cruise test, touch "RECORD".

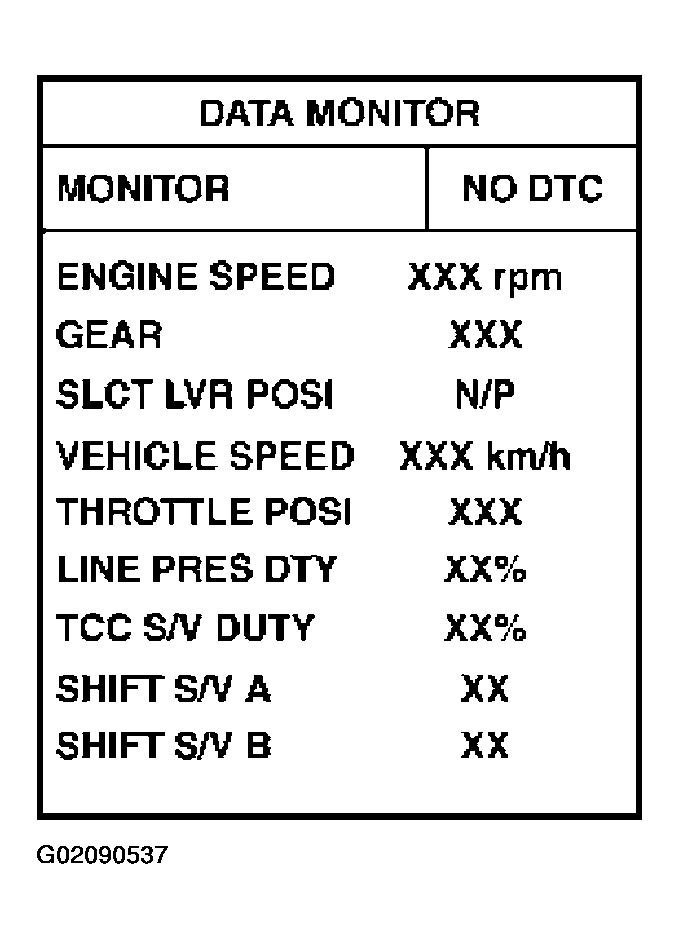

Fig 7: Display Data Monitor Consult-II Sheet
Courtesy of NISSAN MOTOR CO., U.S.A.
After finishing cruise test part 1, touch "STOP".

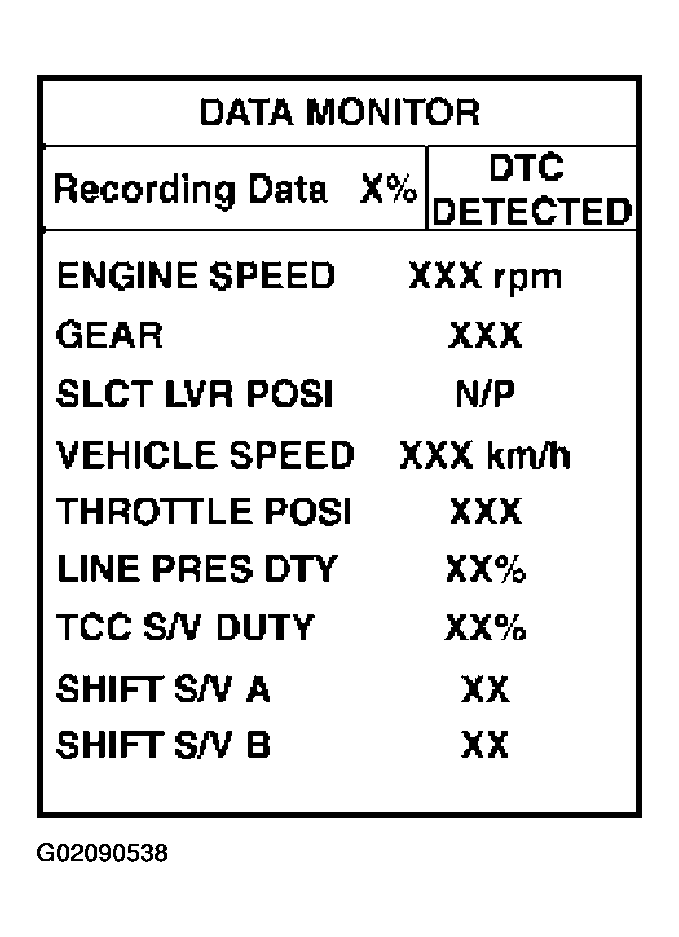

Fig 8: Display Data Monitor Consult-II Sheet
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "STORE" and touch "BACK".

Fig 9: Display Store System Service Data Sheet
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Display Rear-Time Diag Sheet
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DISPLAY".

Fig 11: Display Monitor Data Printed Out Sheet
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "PRINT".
Check the monitor data printed out.
Continue cruise test part 2 and 3.
With CONSULT-II
- Accelerator pedal position sensor can be checked by voltage between terminals 41 (W) and 42 (B) of TCM.

  Fig 12: Checking By Voltage Between Terminals 41 (W) & 42 (B) Of TCM
