Power Train Revolution Sensor
Power Train Revolution Sensor

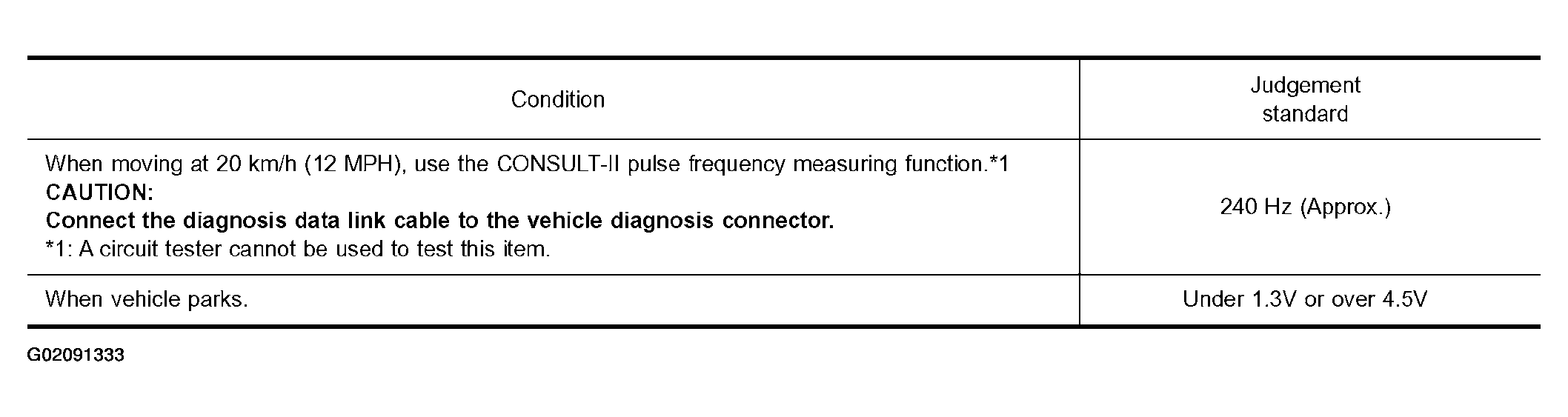

Fig 1: Power Train Revolution Sensor Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
