Manual Shaft: Removal

  1. Remove detent spring from transmission case.

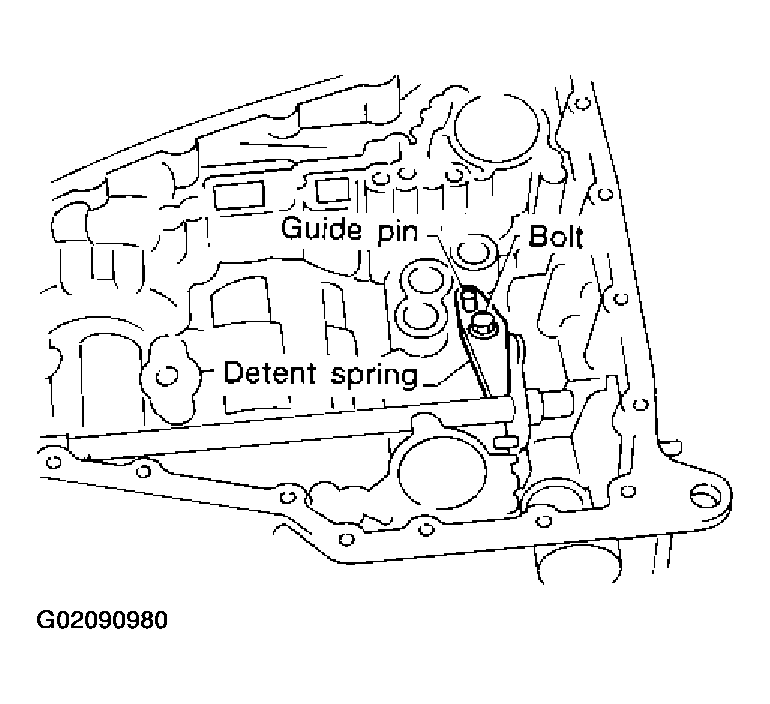

    Fig 1: Removing Detent Spring From Transmission Case
    G02090980Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Drive out manual plate retaining pin.
    Fig 2: Driving Out Manual Plate Retaining Pin
    G02090981Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive and pull out parking rod plate retaining pin.
  4. Remove parking rod plate from manual shaft.
  5. Draw out parking rod from transmission case.

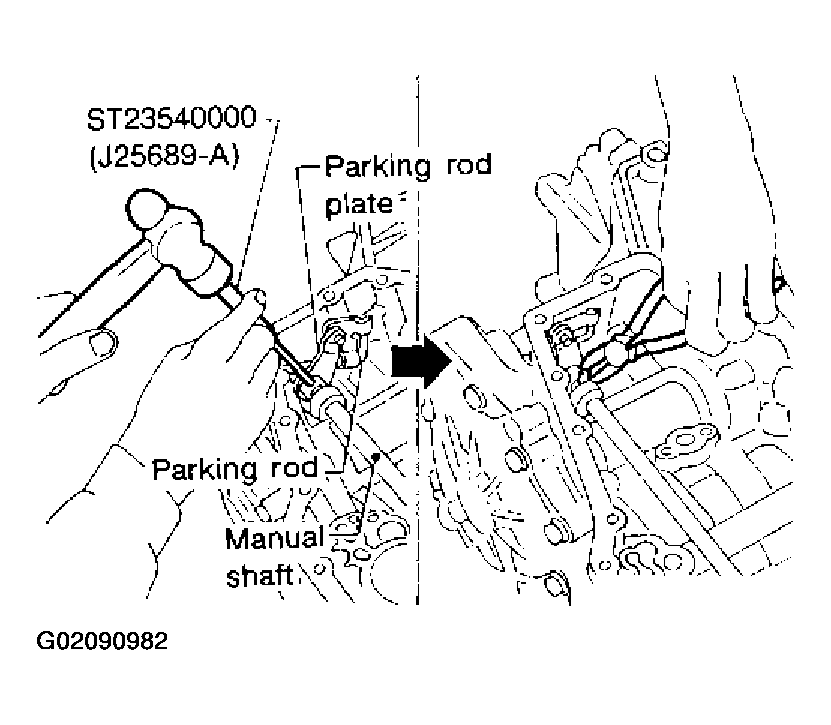

    Fig 3: Removing Parking Rod Plate From Manual Shaft
    G02090982Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Pull out manual shaft retaining pin.
  7. Remove manual shaft and manual plate from transmission case.

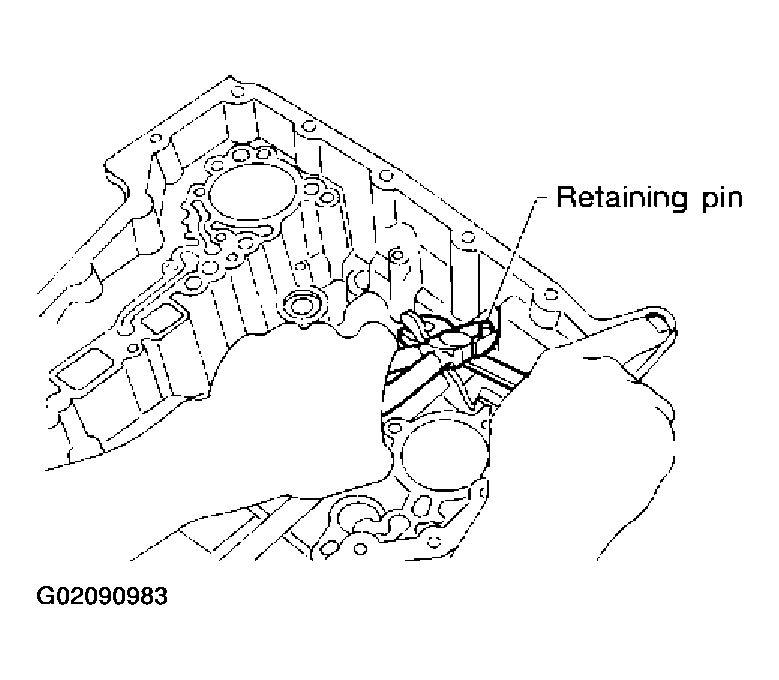

    Fig 4: Pulling Out Manual Shaft Retaining Pin
    G02090983Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove manual shaft oil seal.
    Fig 5: Removing Manual Shaft Oil Seal
    G02090984Courtesy of NISSAN MOTOR CO., U.S.A.
