Manual Shaft: Installation

  1. Install manual shaft oil seal.
    • Apply ATF to outer surface of oil seal.

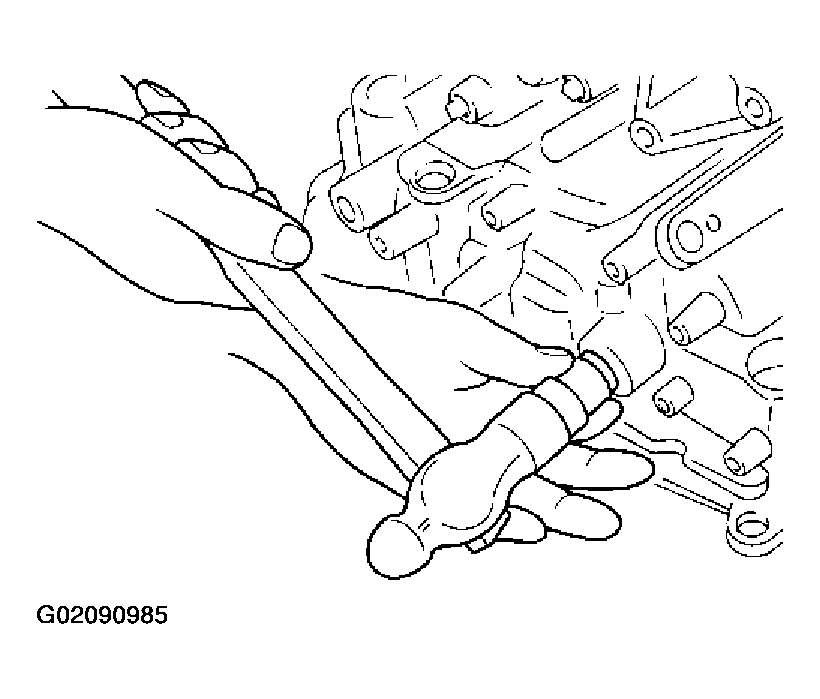

    Fig 1: Installing Manual Shaft Oil Seal
    G02090985Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install manual shaft and manual plate.

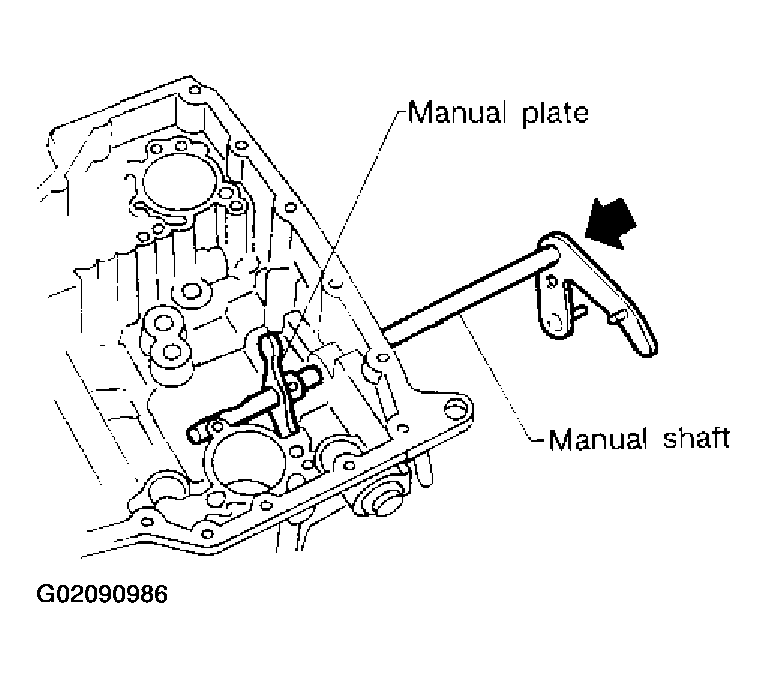

    Fig 2: Installing Manual Shaft & Manual Plate
    G02090986Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Align groove of manual shaft and hole of transmission case.
  4. Install manual shaft retaining pin up to bottom of hole.

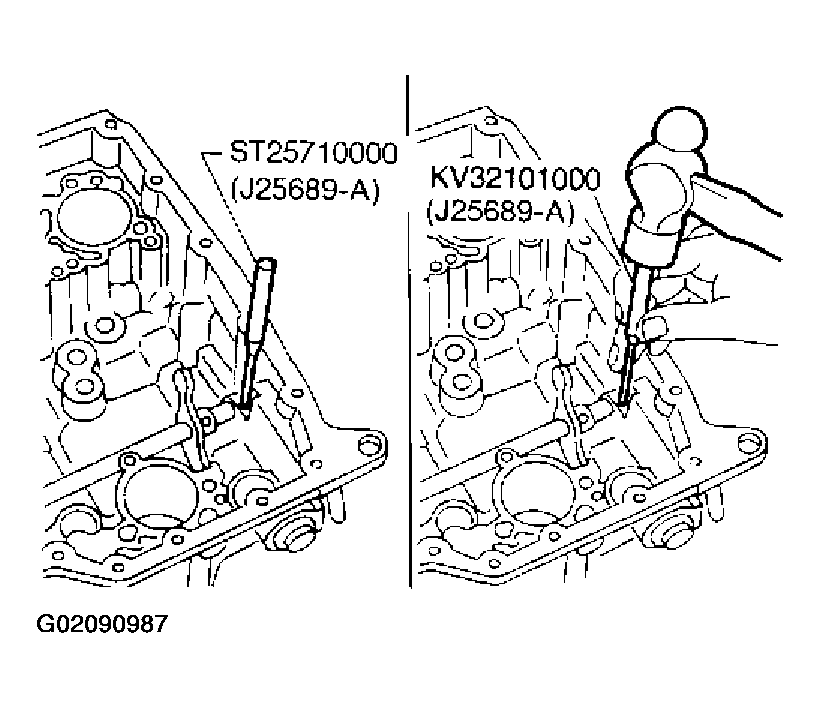

    Fig 3: Installing Manual Shaft Retaining Pin Up To Bottom Of Hole
    G02090987Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install parking rod to parking rod plate.
  6. Set parking rod assembly onto manual shaft and drive retaining pin.
    • Both ends of pin should protrude.

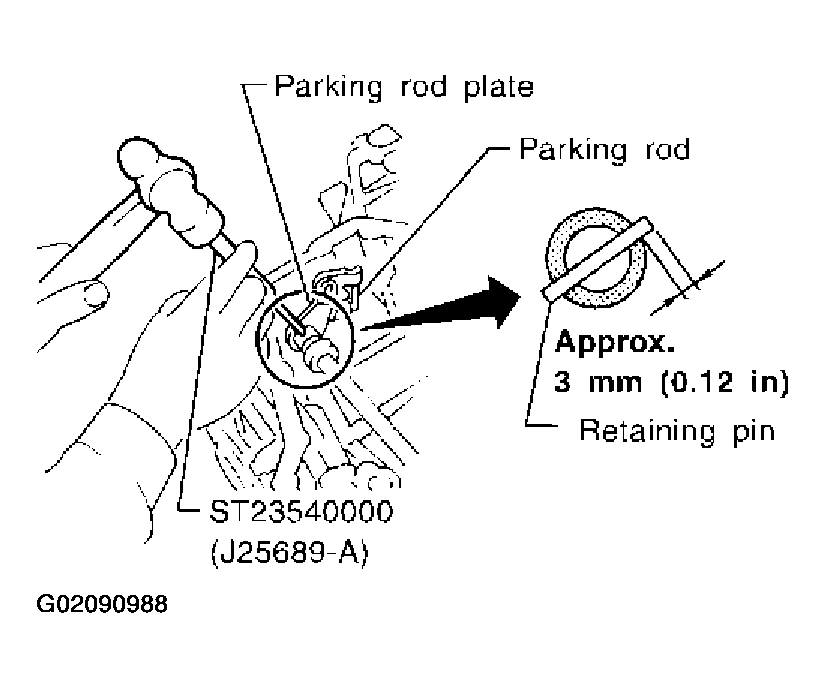

    Fig 4: Setting Parking Rod Assembly Onto Manual Shaft & Drive Retaining Pin
    G02090988Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Drive manual plate retaining pin.
    • Both ends of pin should protrude.
    Fig 5: Driving Manual Plate Retaining Pin
    G02090989Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install detent spring. Tighten detent spring bolts to the specified torque. Refer to MANUAL SHAFT .

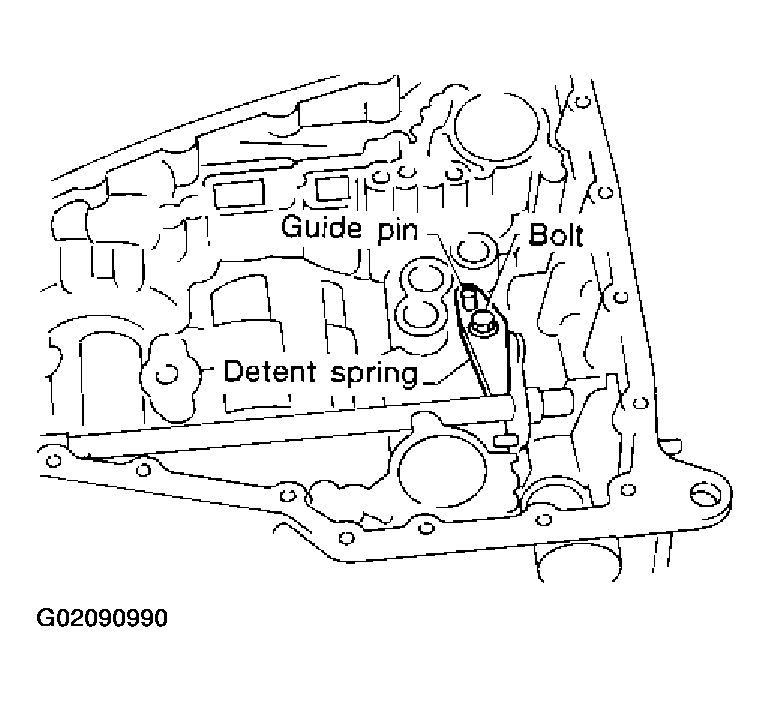

    Fig 6: Identifying Tighten Detent Spring Bolts
    G02090990Courtesy of NISSAN MOTOR CO., U.S.A.
