Band Servo Piston Assembly: Assembly

  1. Install D-rings to servo piston retainer.
    • Apply ATF to D-rings.
    • Pay attention to position of each O-ring.
    Fig 1: Installing D-Rings To Servo Piston Retainer
    G02091172Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.
    Fig 2: Identifying Band Servo Piston Assembly Components
    G02091173Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.
    Fig 3: Pushing Servo Piston Spring Retainer Down To Install E-Ring
    G02091174Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-rings to servo piston retainer.
    Fig 4: Installing O-Rings To Servo Piston Retainer
    G02091175Courtesy of NISSAN MOTOR CO., U.S.A.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
  5. Install band servo piston assembly to servo piston retainer by pushing it inward.
    Fig 5: Installing Band Servo Piston Assembly
    G02091176Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install D-ring to O/D servo piston.
    Fig 6: Installing D-Ring To O/D Servo Piston
    G02091177Courtesy of NISSAN MOTOR CO., U.S.A.
    • Apply ATF to D-ring.
  7. Install O-rings to O/D servo piston retainer.
    Fig 7: Installing O-Rings To O/D Servo Piston Retainer
    G02091178Courtesy of NISSAN MOTOR CO., U.S.A.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.
  8. Install O/D servo piston to O/D servo piston retainer.
    Fig 8: Installing O/D Servo Piston To O/D Servo Piston Retainer
    G02091179Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install band servo piston assembly and 2nd servo return spring to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.

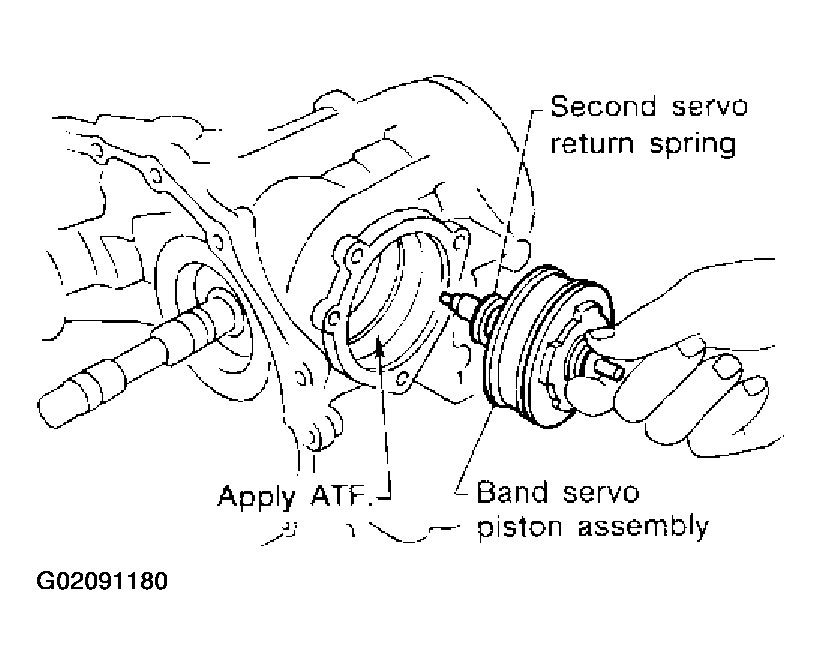

    Fig 9: Installing Band Servo Piston Assembly & 2nd Servo Return Spring
    G02091180Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install O/D servo piston assembly to transmission case.

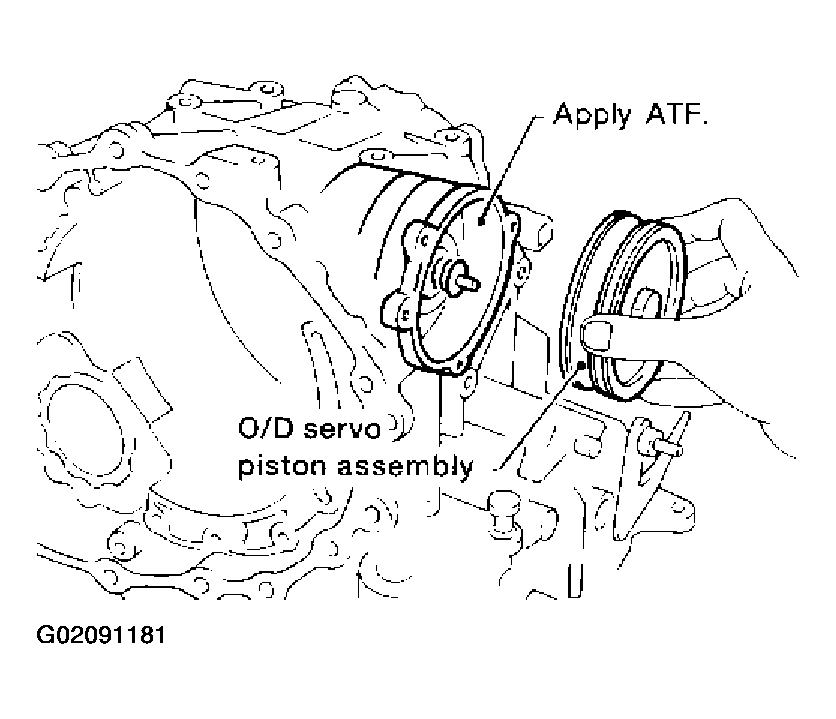

    Fig 10: Installing O/D Servo Piston Assembly To Transmission Case
    G02091181Courtesy of NISSAN MOTOR CO., U.S.A.
    • Apply ATF to O-ring of band servo piston and transmission case.
  11. Install O/D servo piston retainer to transmission case. Refer to BAND SERVO PISTON ASSEMBLY .

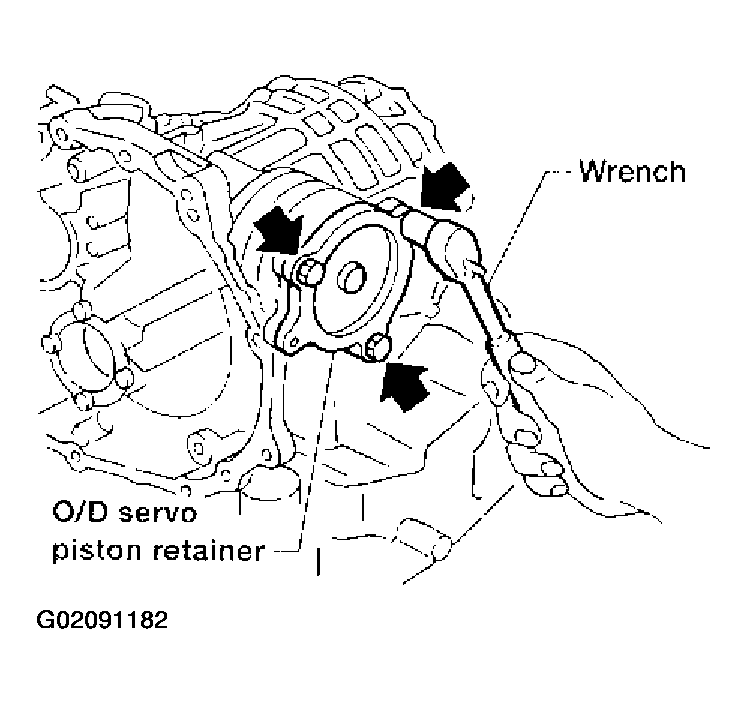

    Fig 11: Installing O/D Servo Piston Retainer To Transmission Case
    G02091182Courtesy of NISSAN MOTOR CO., U.S.A.
