D Position

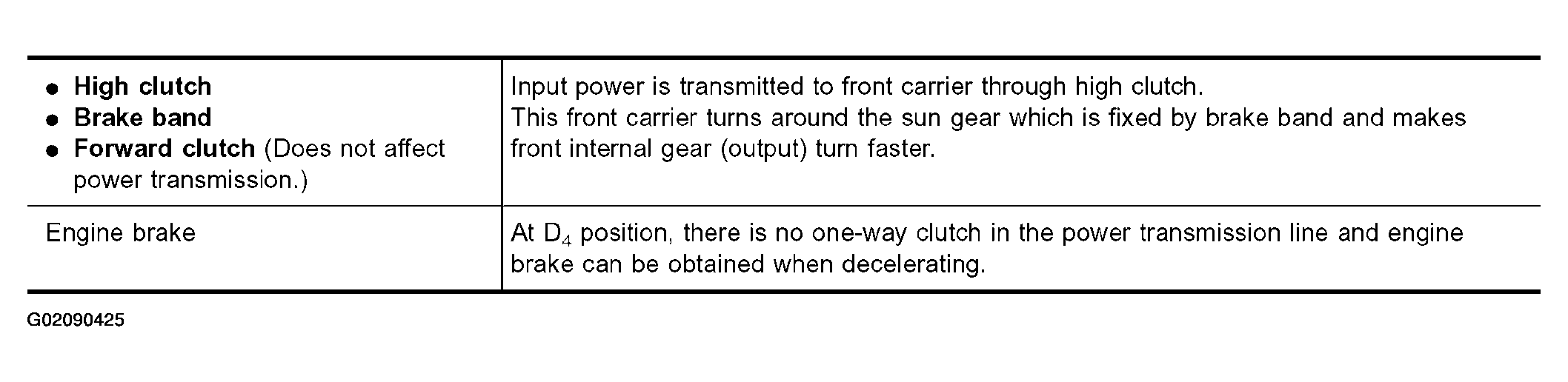

Fig 1: Identifying D₄ Position Table

G02090425

Courtesy of NISSAN MOTOR CO., U.S.A.

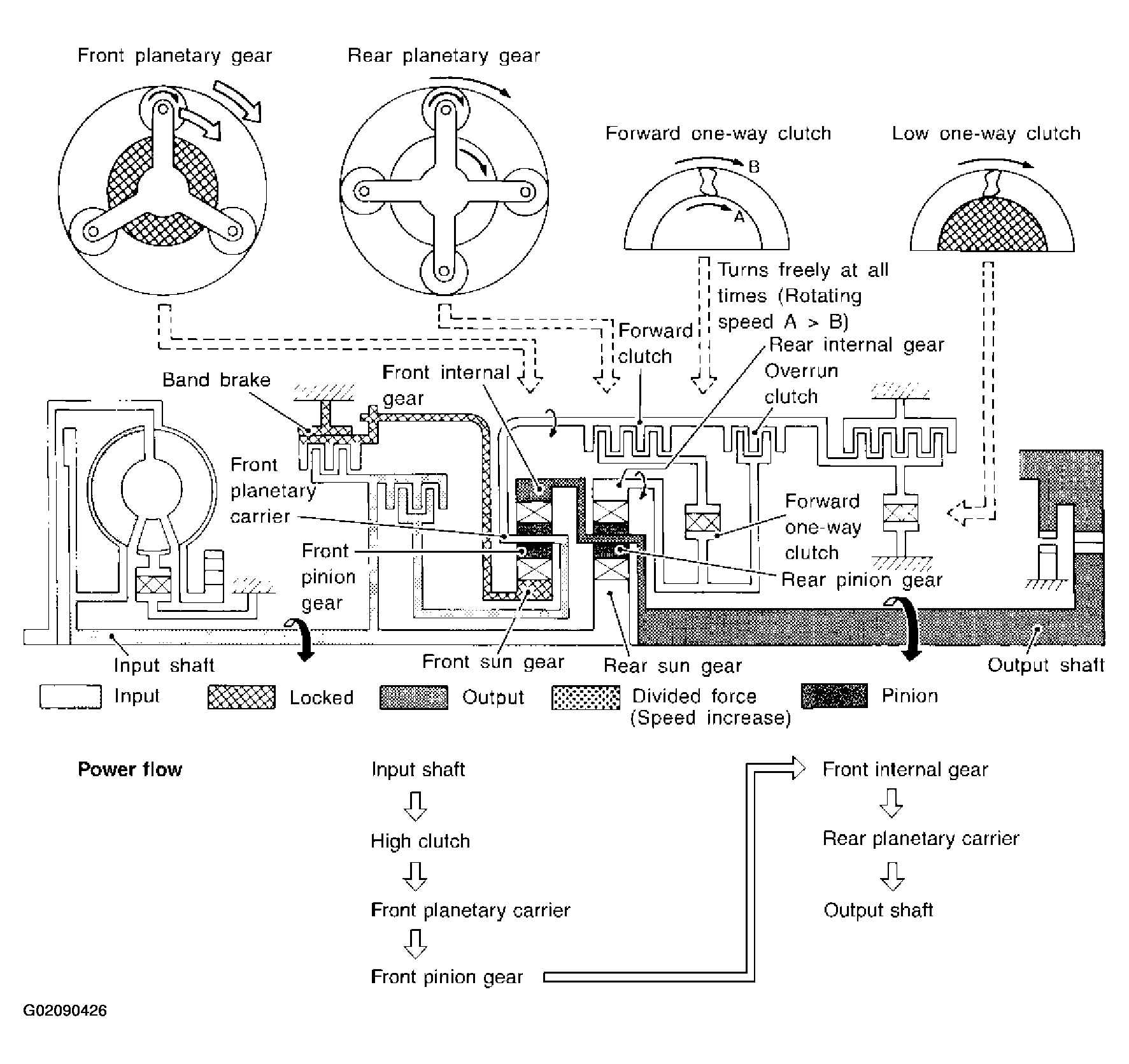

Fig 2: Identifying D₄ Position Assembly

G02090426

Courtesy of NISSAN MOTOR CO., U.S.A.
